Complete CLT Manufacturing Facility for Splitkon AS in Norway

Company Splitkon AS from Åmot in Norway has invested in new industrial production for large format cross laminated timber panels. The line is in the commissioning stage and will shortly start to supply the domestic market with high quality CLT panels. Company Ledinek got the opportunity to supply a complete Turnkey CLT production. This is the first CLT fabrication line made by Ledinek using MUF glue for the surface bond.

All machines are equipped with newest generation of safety PLC.
A new Turn-key solution for a CLT production out of one hand.

Company: Splitkon AS
Facebook: Splitkonlimtre

Location: Åmot / Norway
Executive Director: Morten L. Johansen
Production Manager: Knut-Arne  Johansen
Employees: 50
Species: Spruce
Production capacity: 50,000 m³ / y

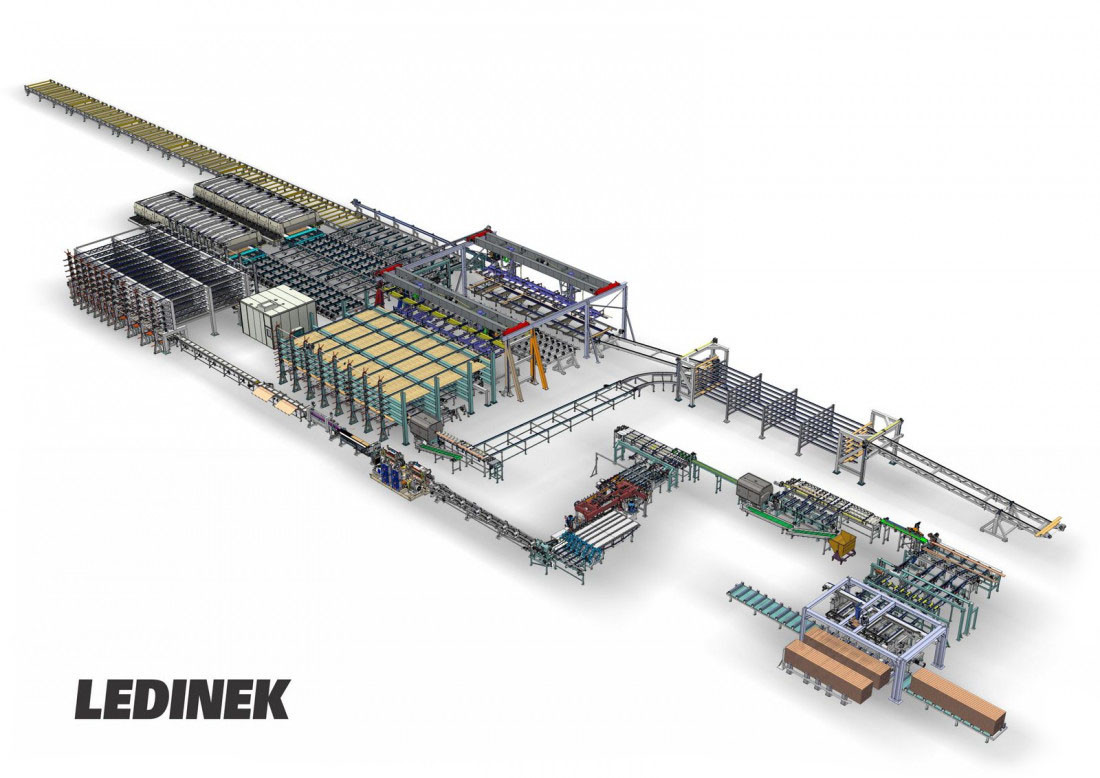

Turnkey CLT production

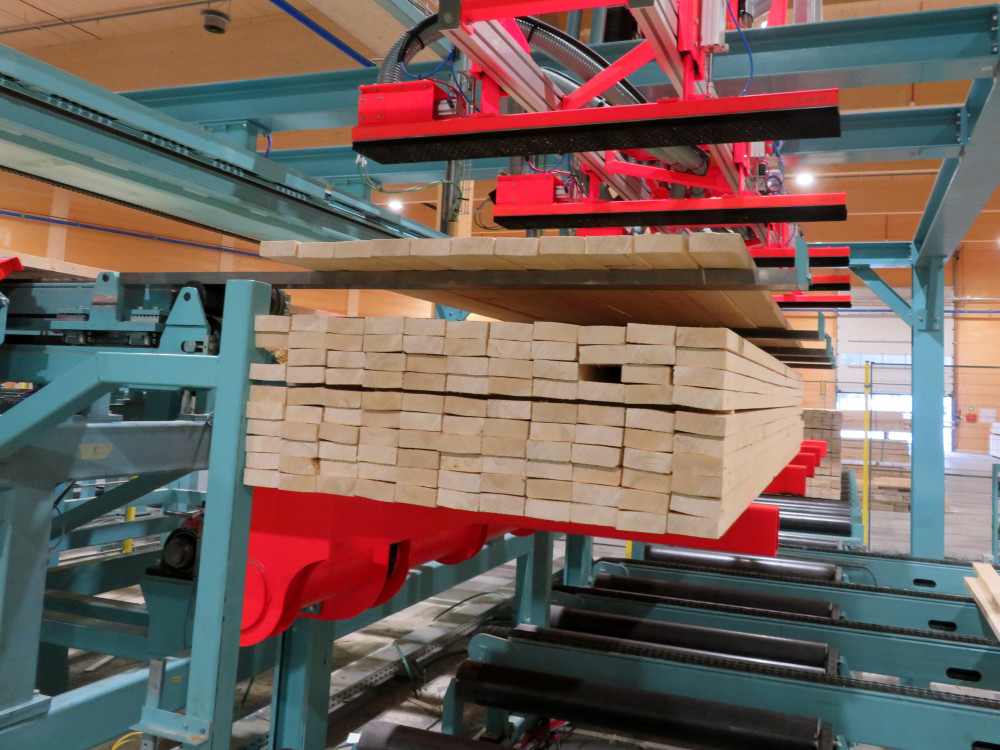

1. Vacuum de-stacking of 2 different timber qualities
2. Moisture meter, reject gate
3. MICROTEC Optiside front side scanner to detect the cup on the end of the lumber
4. Luminescent marking reader LUT

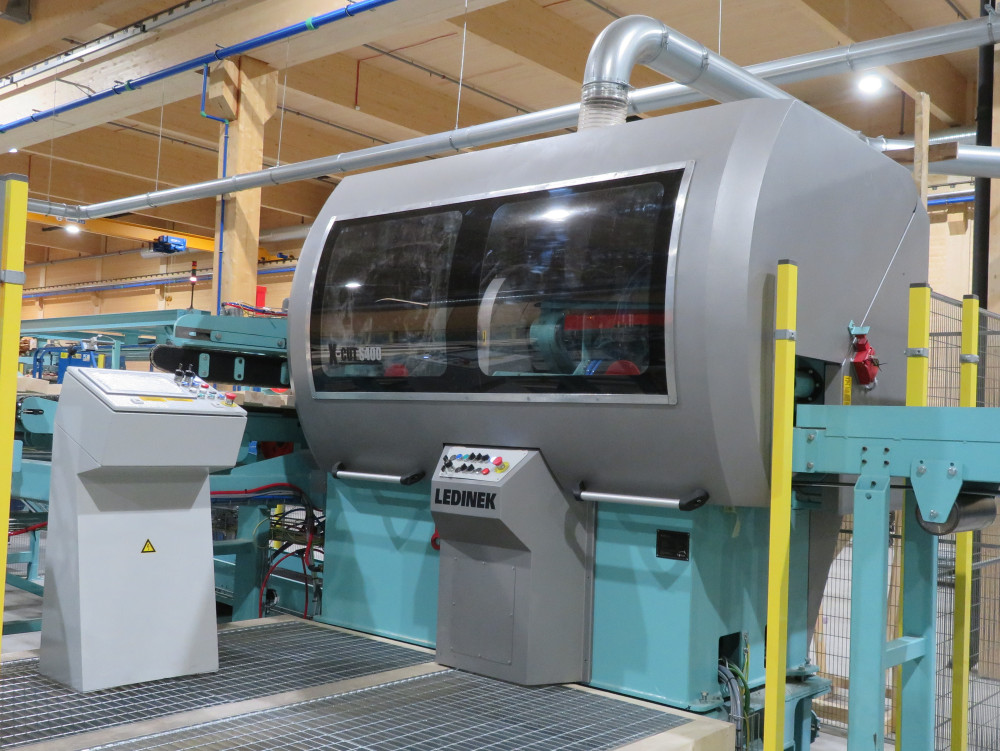

5. X-CUT S400 cross-cut saw to remove timber defects

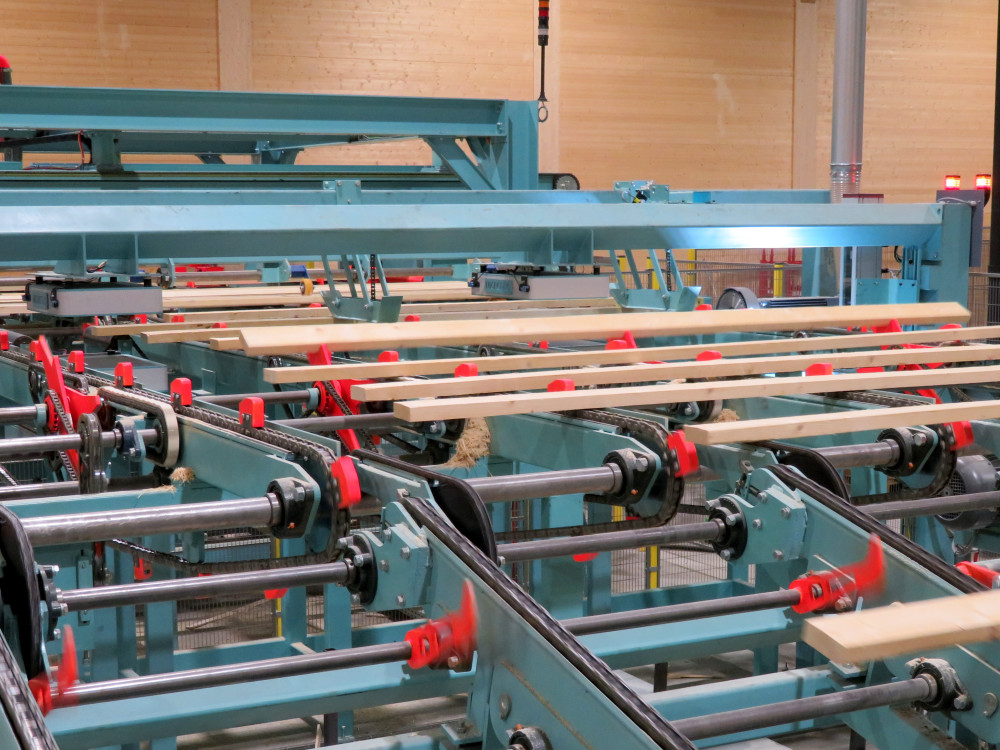

6. Infeed system to finger jointing machine
7. KONTIZINK L-S120 finger jointing line with capacity up to 80 pcs/min; 120 m/min

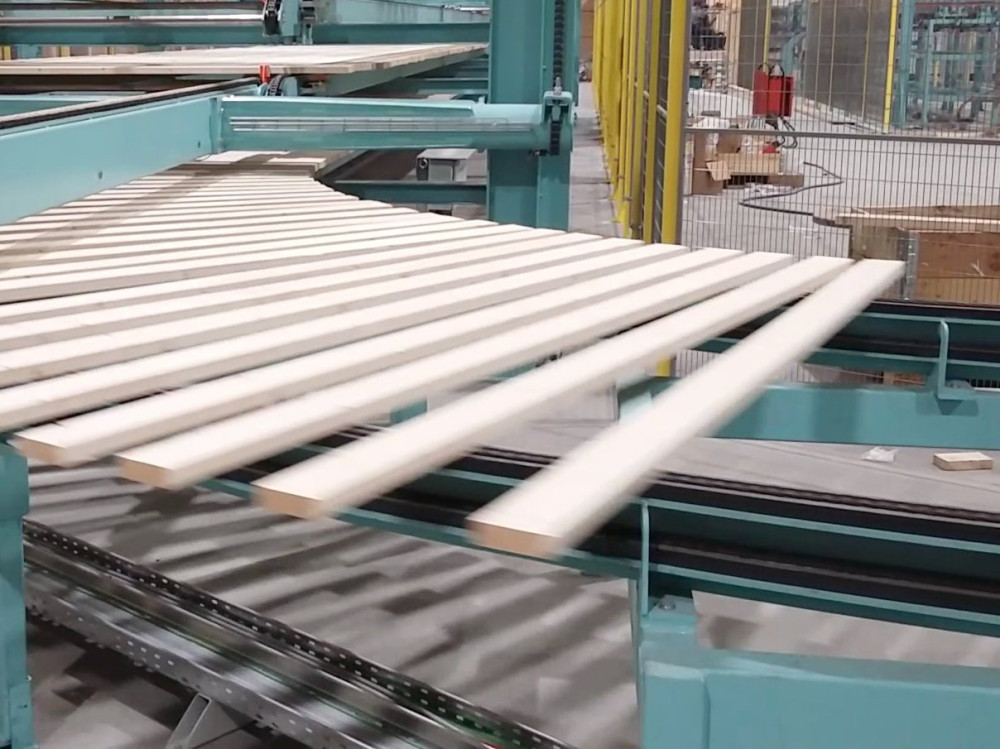

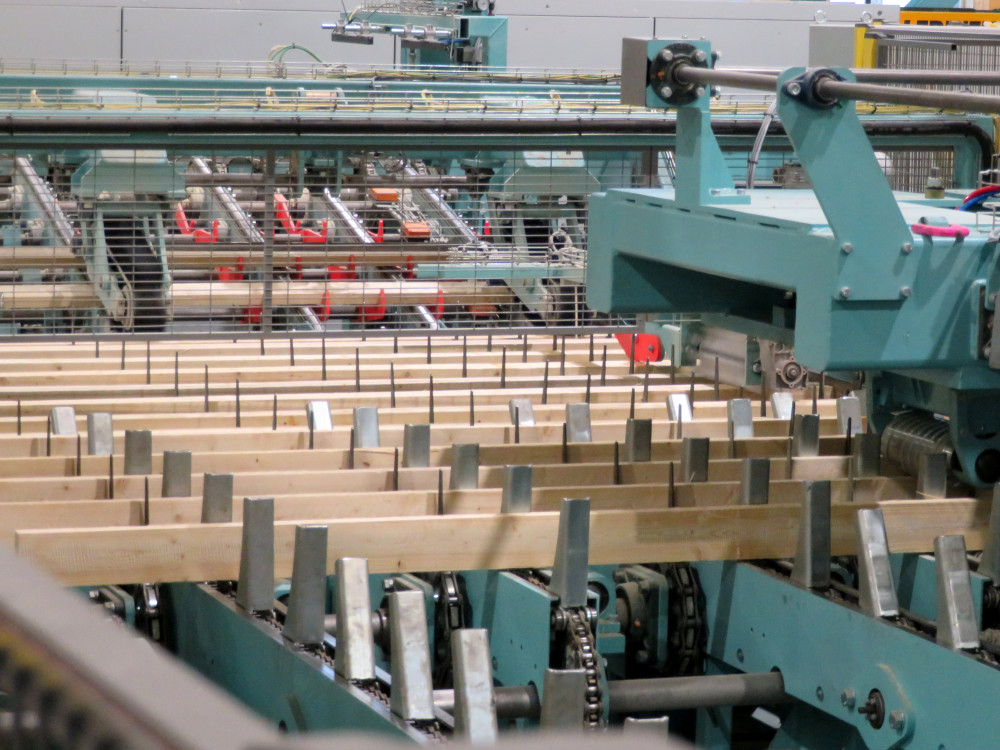

8. Multi tray curing storage with lug chains

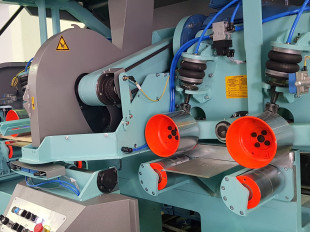

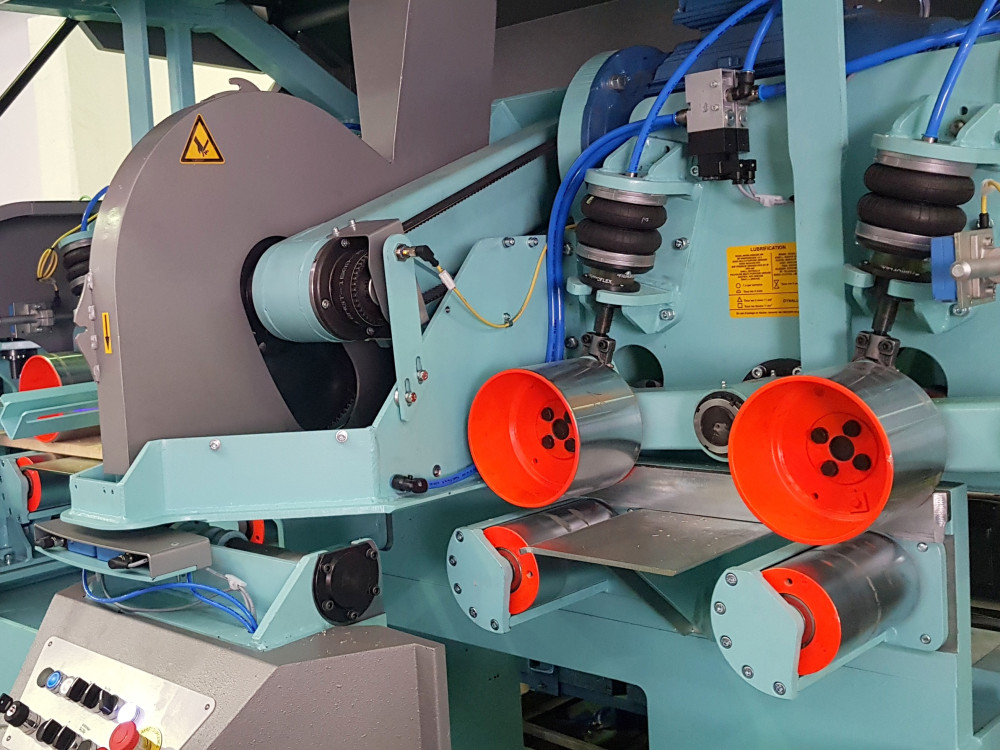

9. Infeed to MULTIPLAN 4V-S200 planer for laminations for high speed and perfect finish
10. Multi tray storage for longitudinal laminations
11. X-CUT S400 cross-cut saw for cross laminations
12. In-feed to Multi tray storage for cross laminations

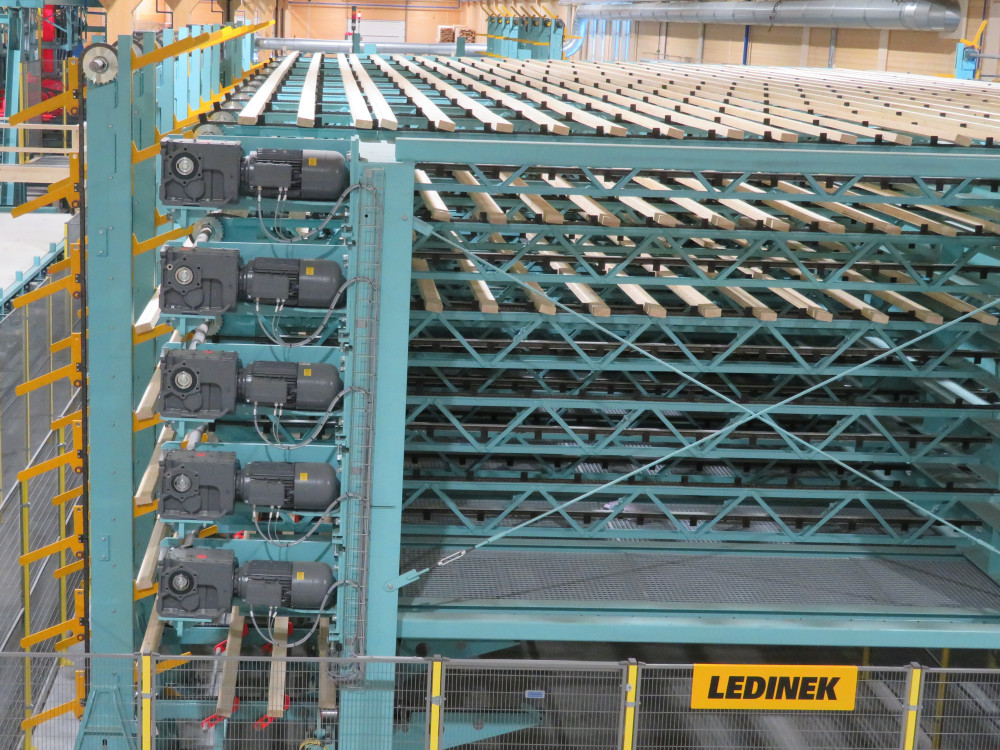

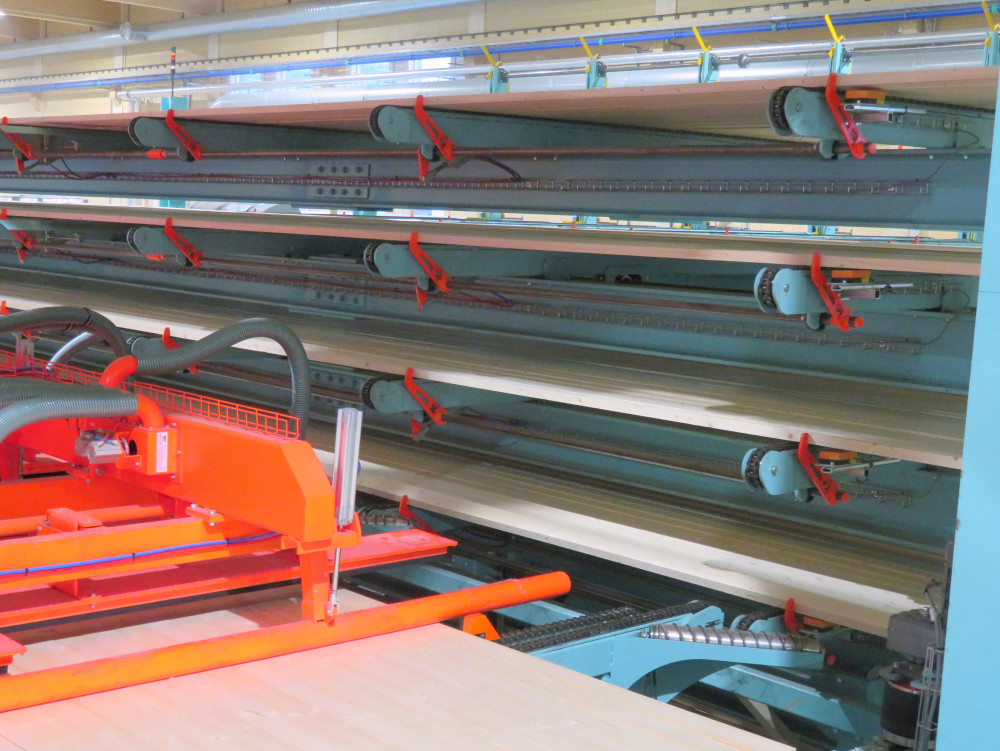

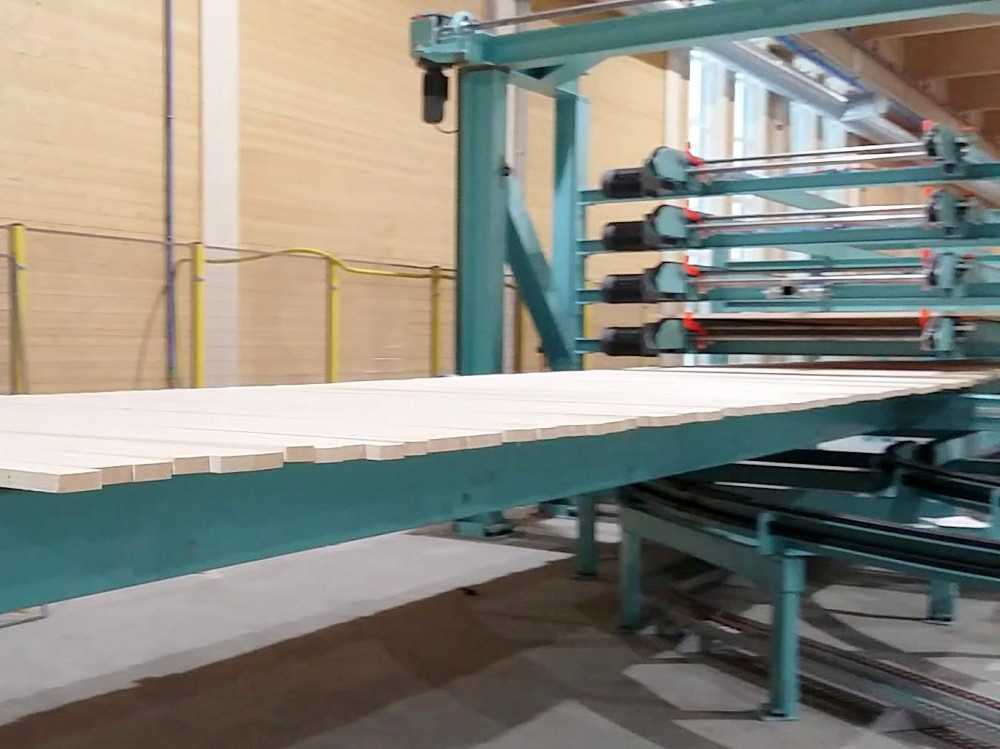

13. Multi tray storage (6 trays) for cross laminations

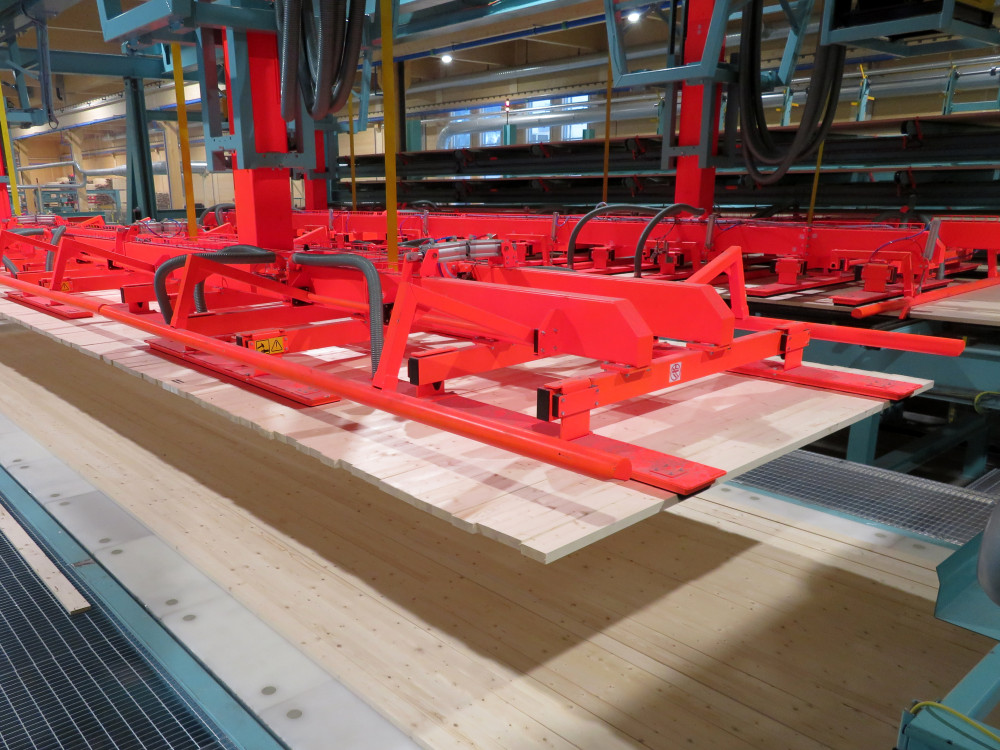

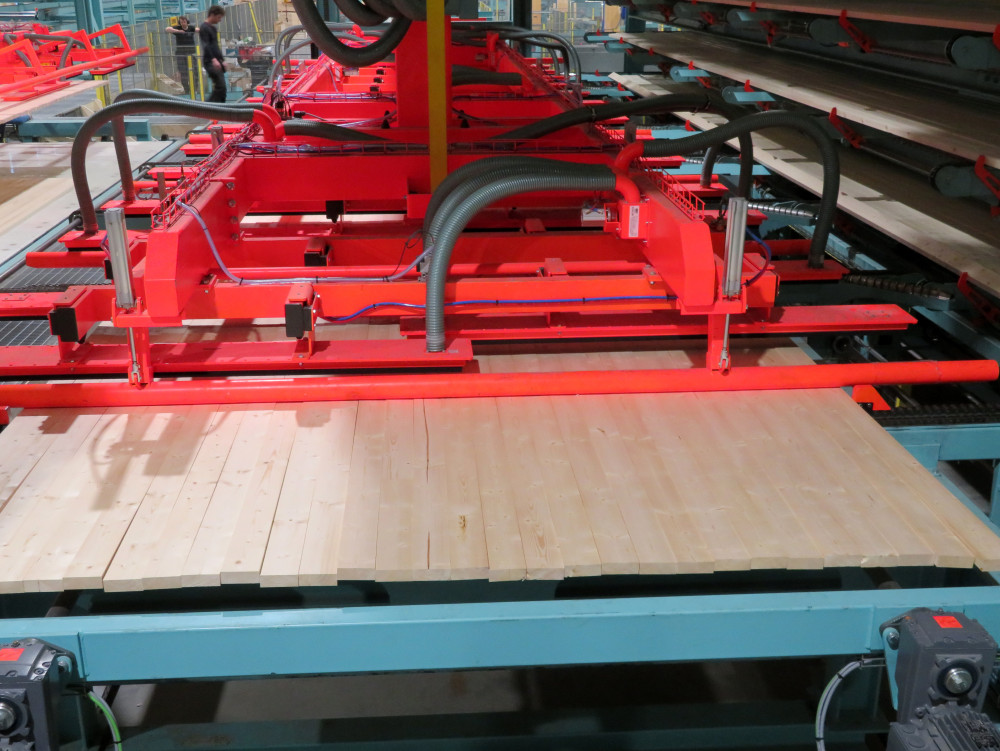

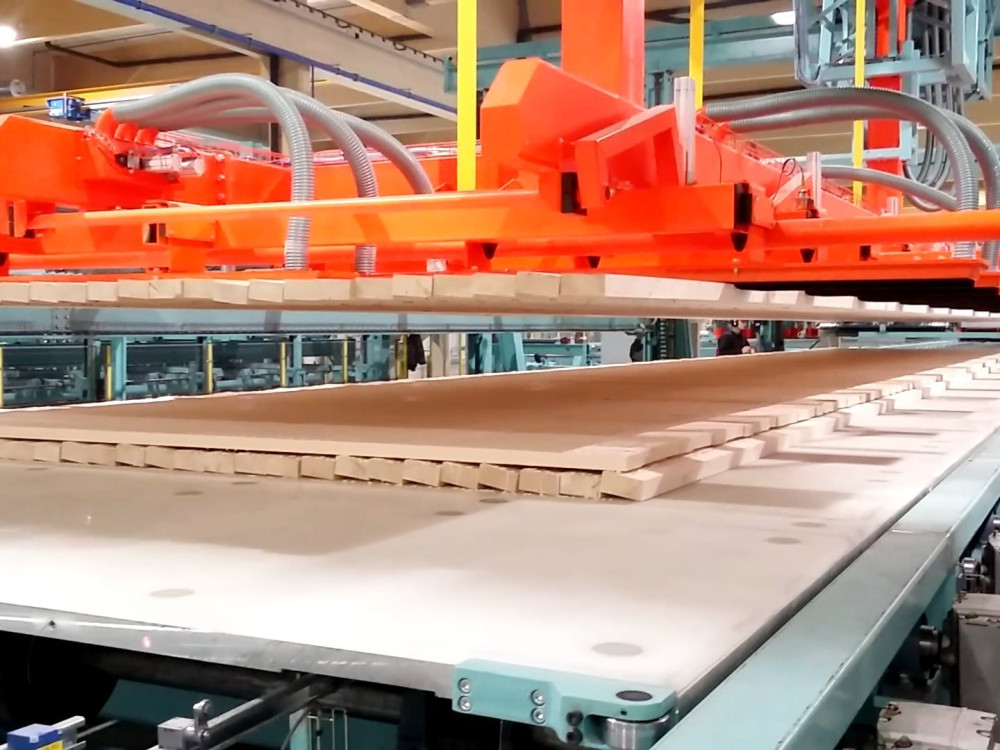

14. Vacuum layer assembly unit for Longitudinal Layer
15. Vacuum layer assembly unit for Cross Layer

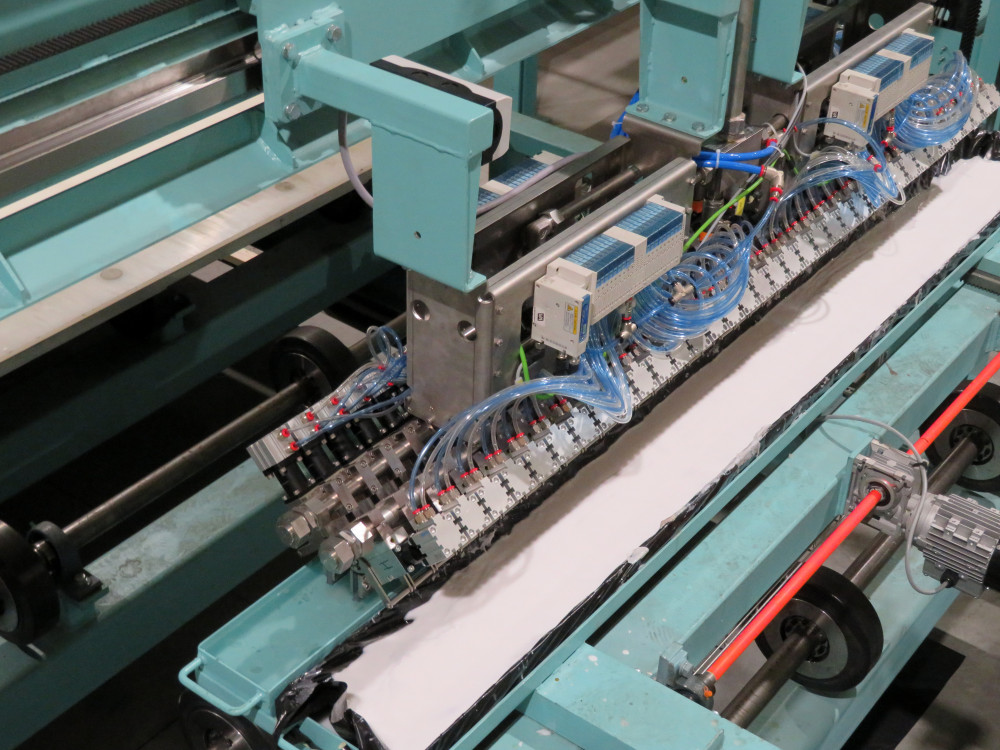

16. OEST cnc controlled MUF (2 component melamine) glue application unit
17. Solid fast movable PE coated aluminium table for CLT panel assembly

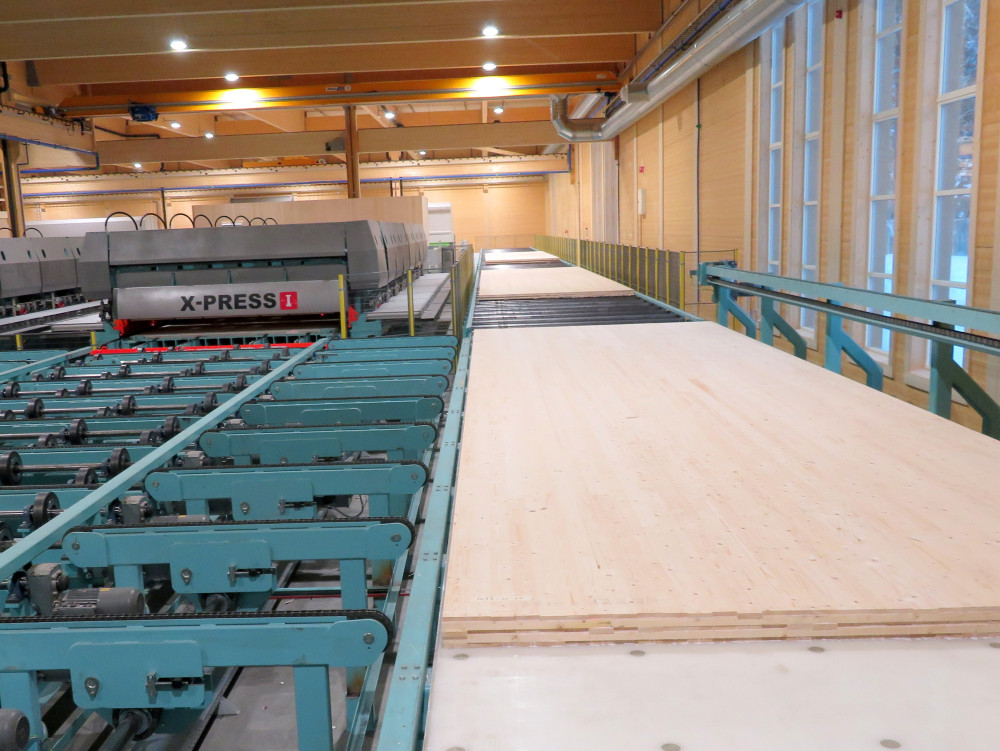

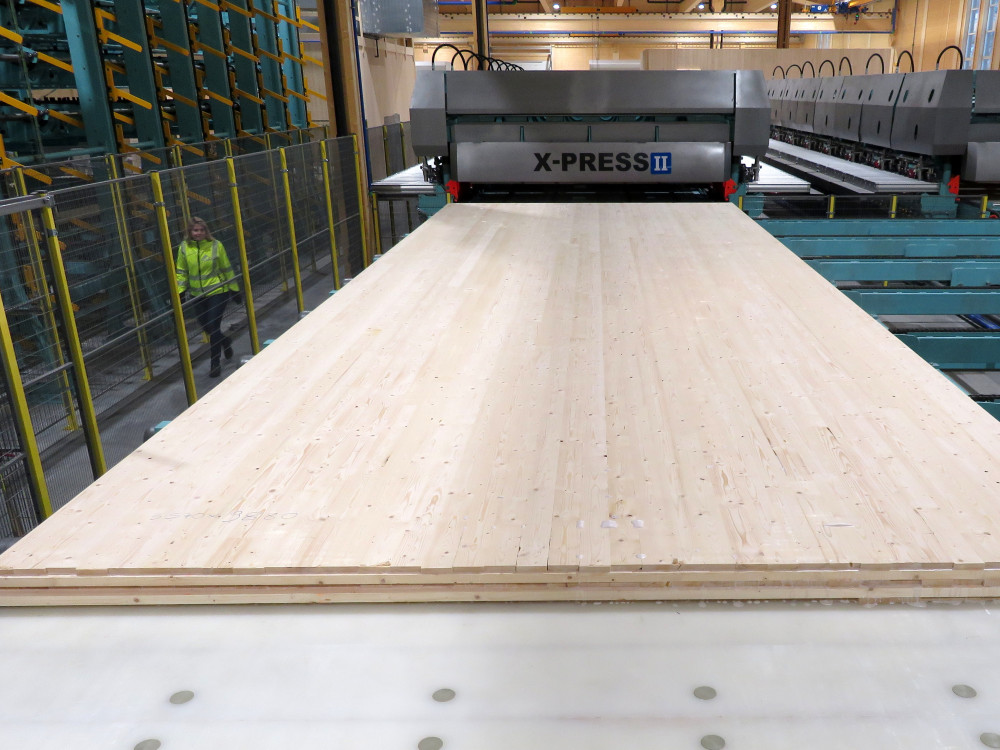

18. X-PRESS 16 - cross laminated timber press with up to 0,8 N/mm² pressure
19. X-PRESS 16 m x 3,5 m x 0,36 m

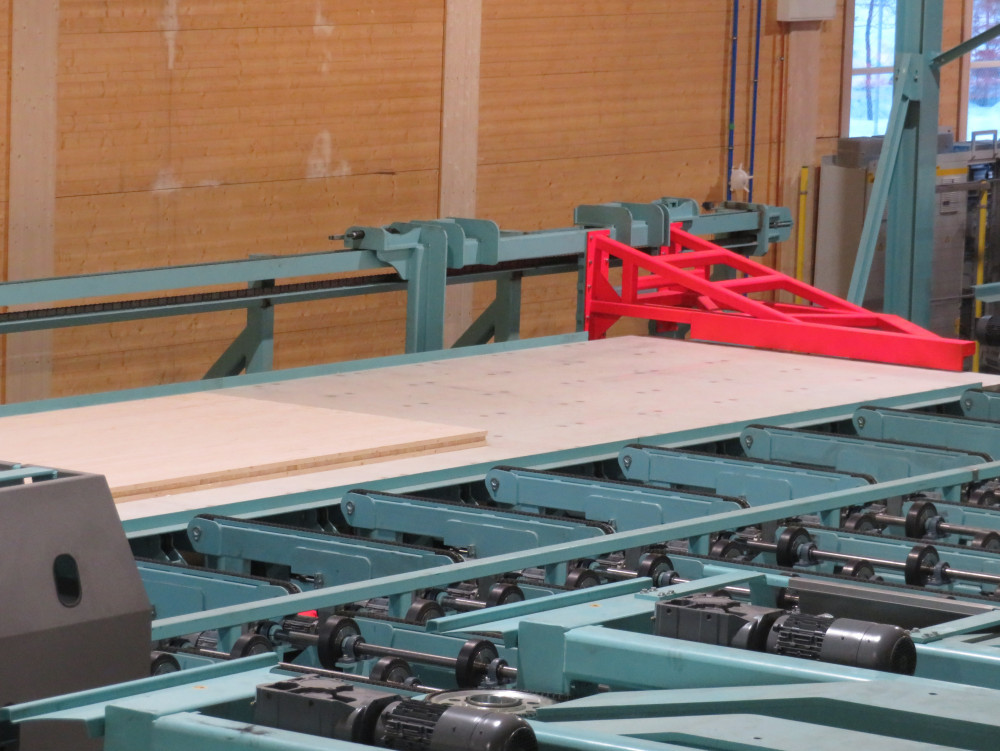

20. Longitudinal CLT panel push off unit with outfeed conveyor

Facts

  • Up to 16 m x 3,6 m x 0,36 m panel size
  • Production capacity up to 50.000 m³/year
  • 100 m³ Shift production
  • MUF glue with cold setting
  • High flexibility of the CLT production process
