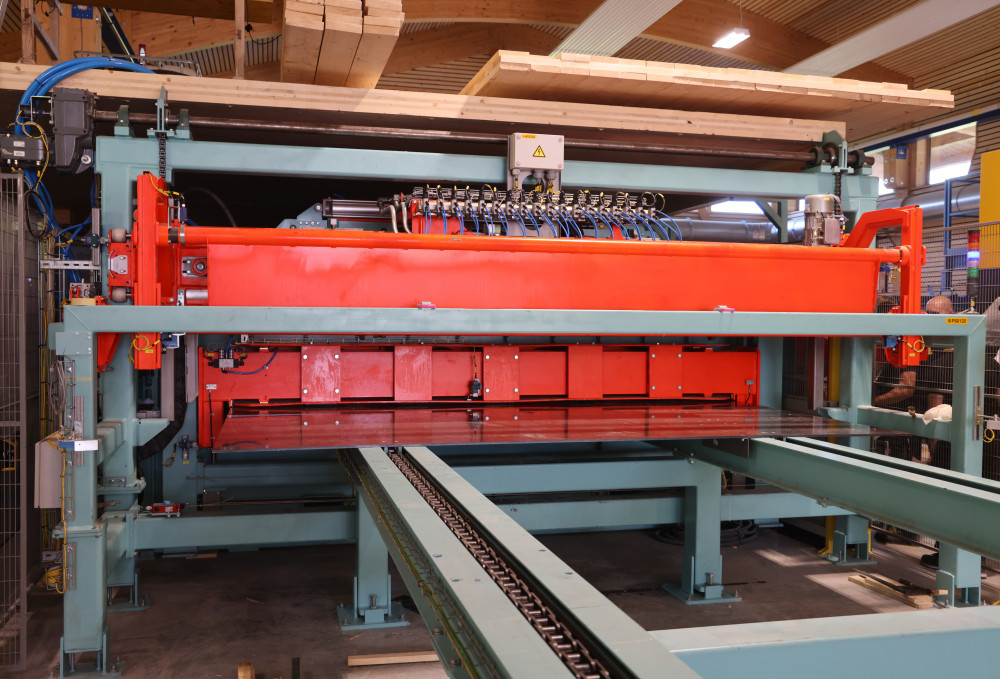

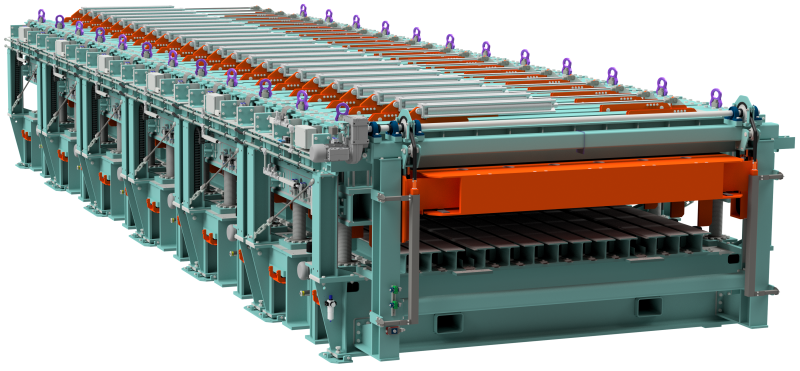

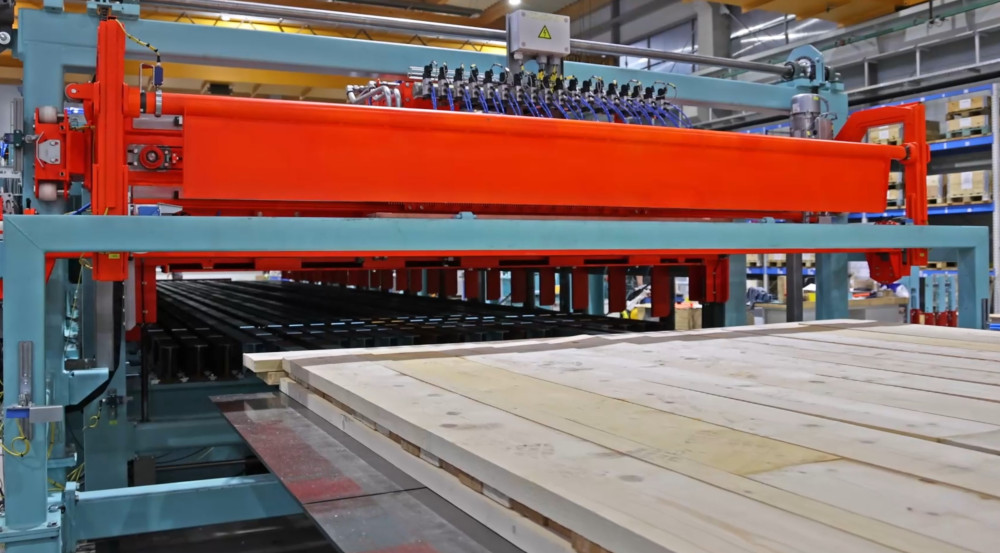

XE-Press

Compact standard large size press for CLT lines for single lamellas and edge glued panels.
Using single steel loading table.

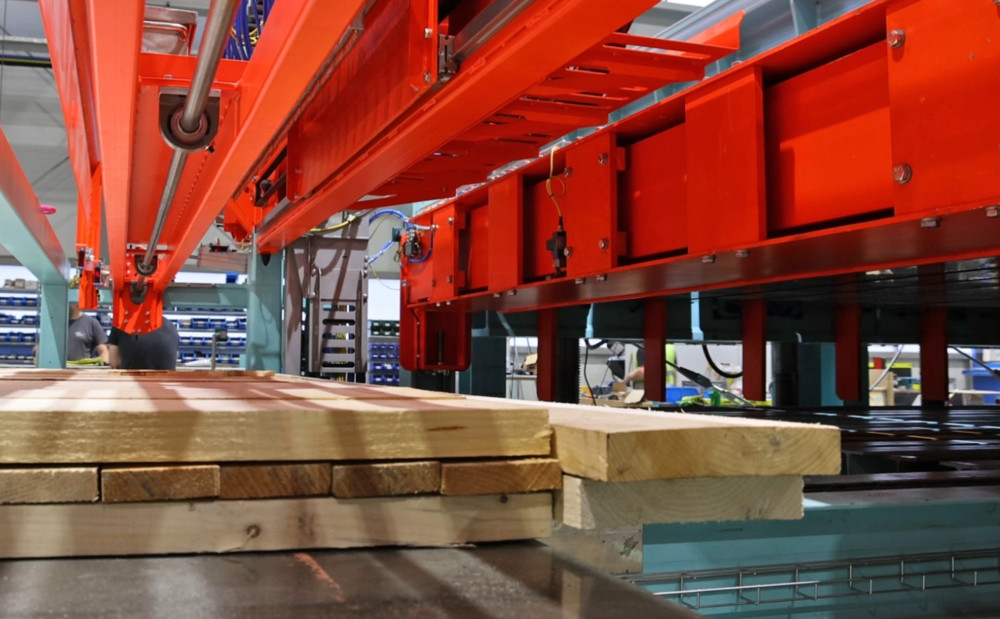

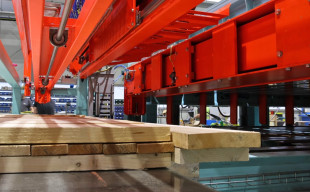

The XE-PRESS is a CLT press for production cross laminated timber panels in standard sizes. It addresses the needs of small and medium sizes business and can be adopted for manual or automatic loading.

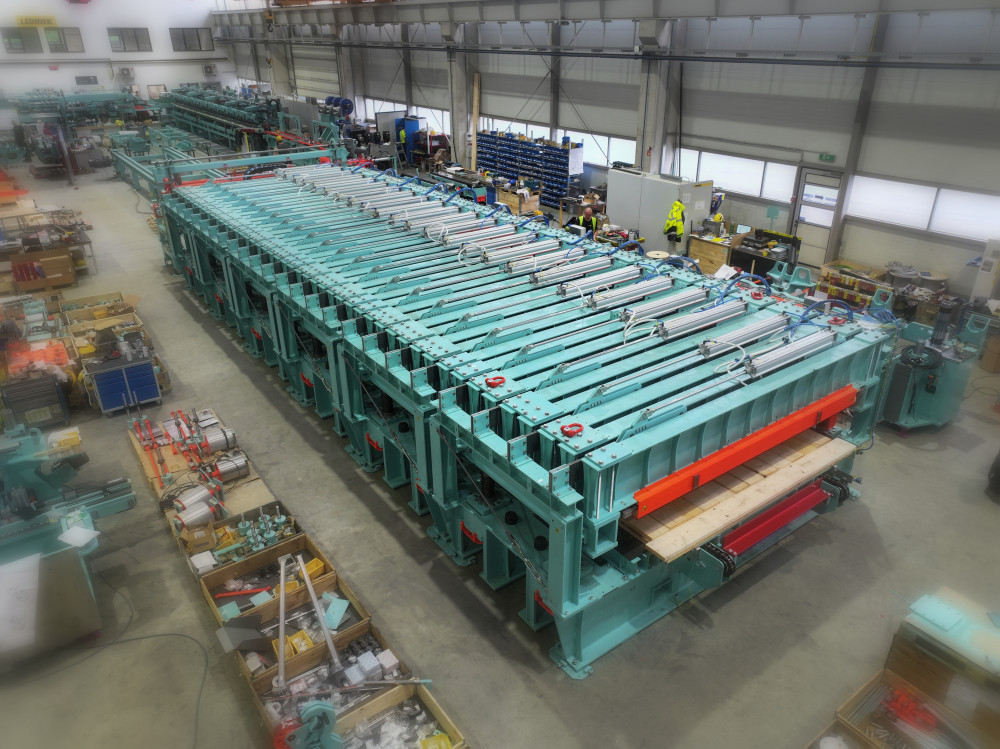

It is designed to be the central piece of equipment in compact smart production lines. The XE-Press is designed modular and can be produced in 2,35 m steps (7m – 21m).

The XE-PRESS is a guarantee for accuracy, high performance and top-quality products.

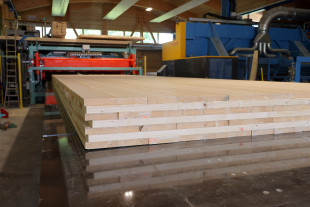

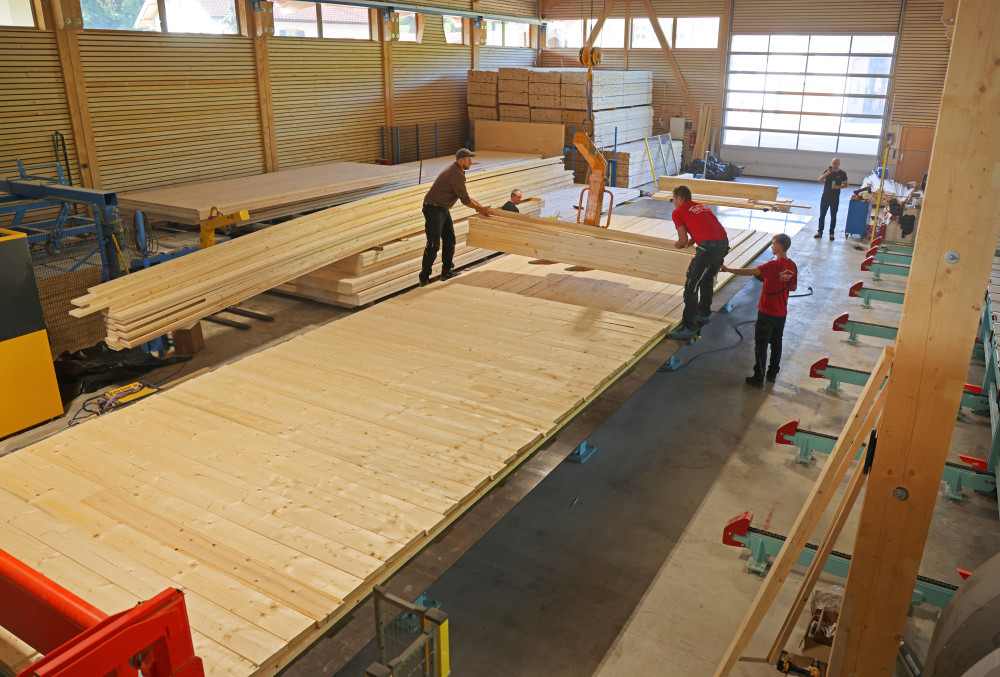

Prefabricated wooden walls, ceilings, roofs, whole houses, everything is possible. Make a step in the future, rediscover the wood construction.

Highlights:

  • Pneumatic pressure buildup
  • High capacity

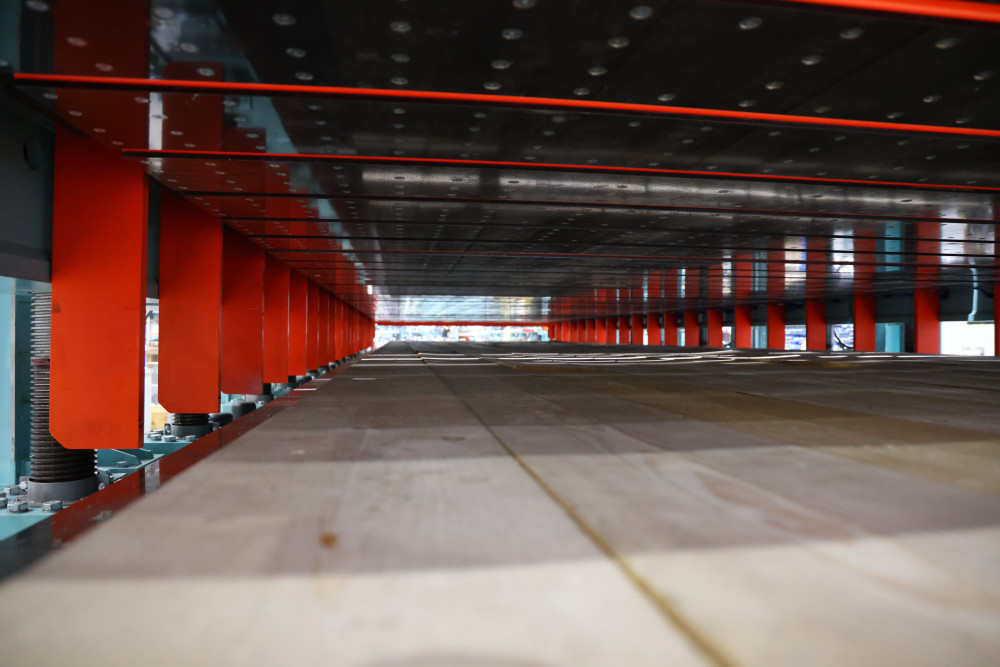

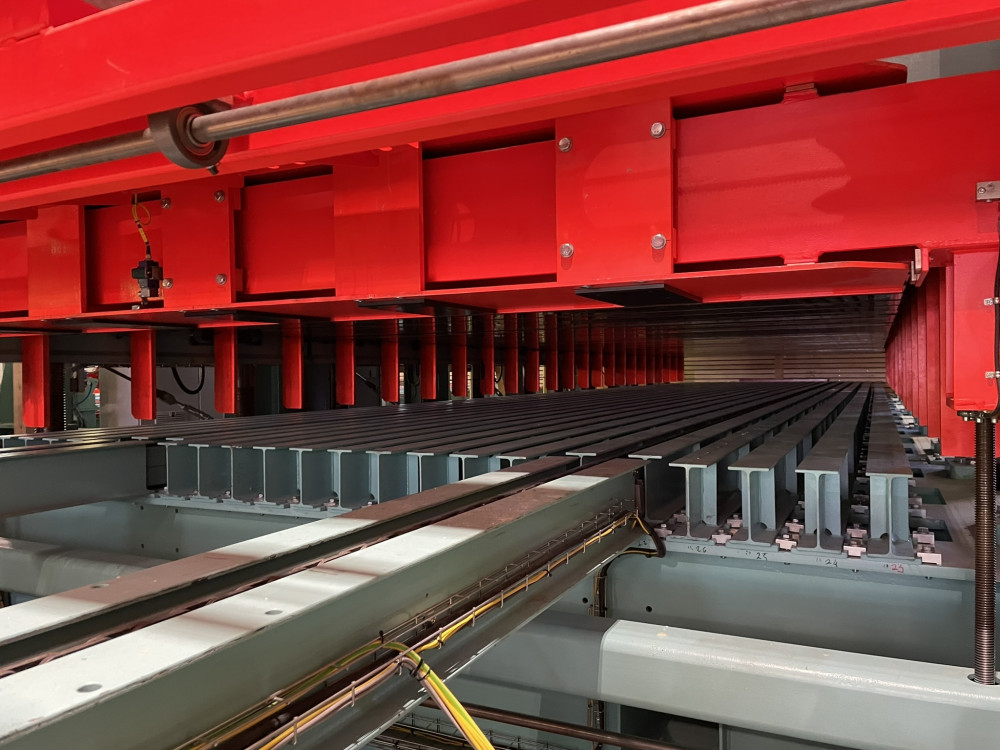

  • Strong top pressure at least 0,6 N/mm² and up

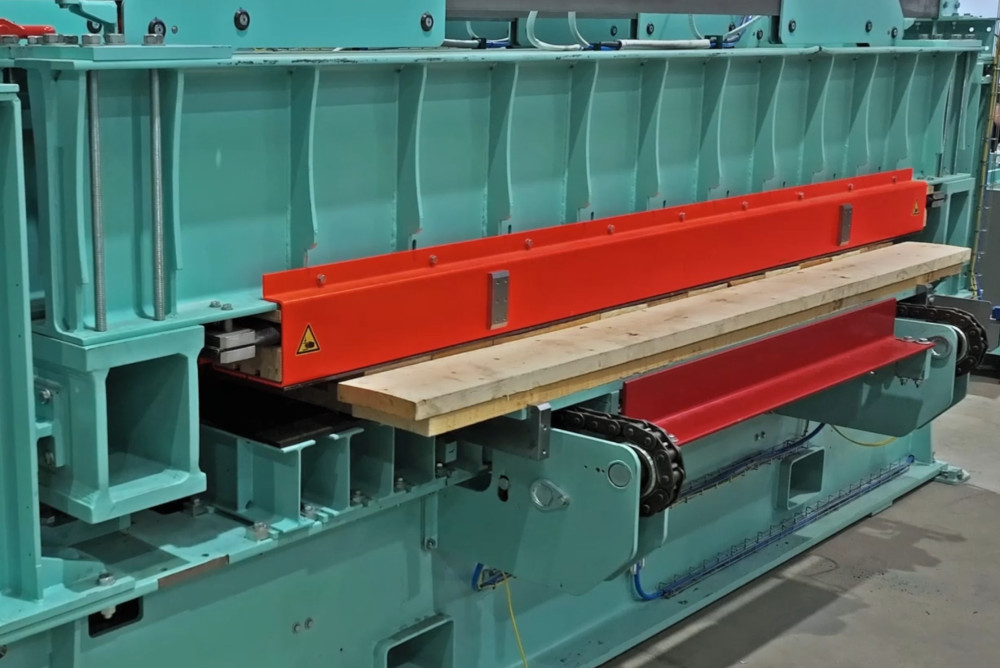

  • Independent side pressure for virtually any length

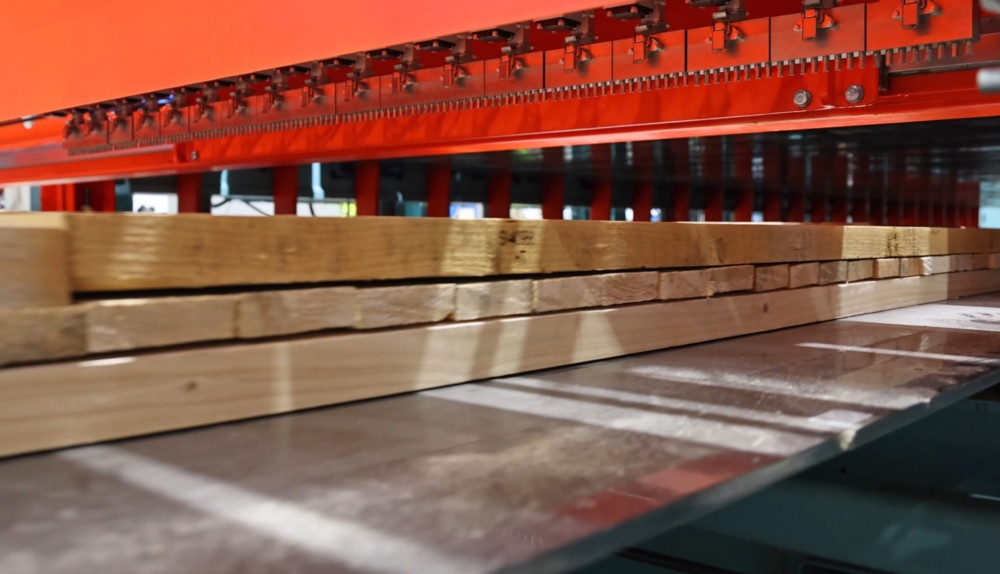

  • Thickness independent front pressure
  • Precise glue application
  • Moveable transport carriage

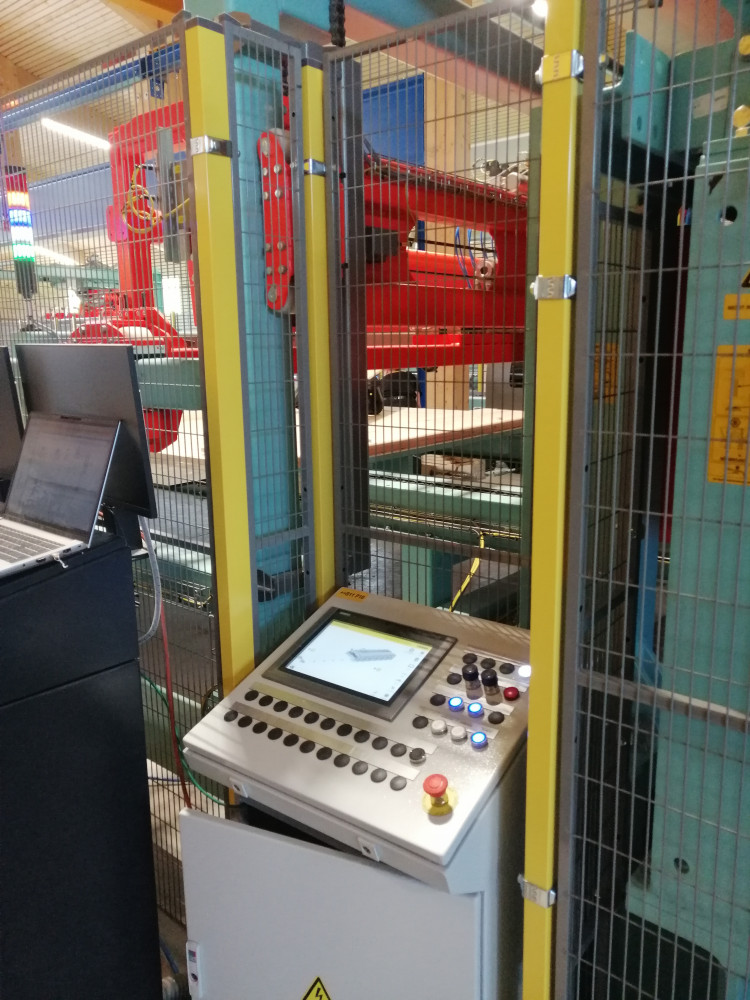

  • Automatic sequence control possible

Benefits of pneumatic pressure buildup:

  • High force through flat tubes
  • No hydraulic cylinders and valves
  • Low and steady consumption of energy
  • No oil - no leakage
  • No heat
  • Environmentally friendly
  • No high frequency radiation
  • Low maintenance


Technical data

XE-Press 7 / 21
Pressing thickness 60 - 360 mm
Pressing thickness
Pressing width 2.450 - 3.550 mm
Pressing width
Pressing lenght 7 - 21 m
Pressing lenght
