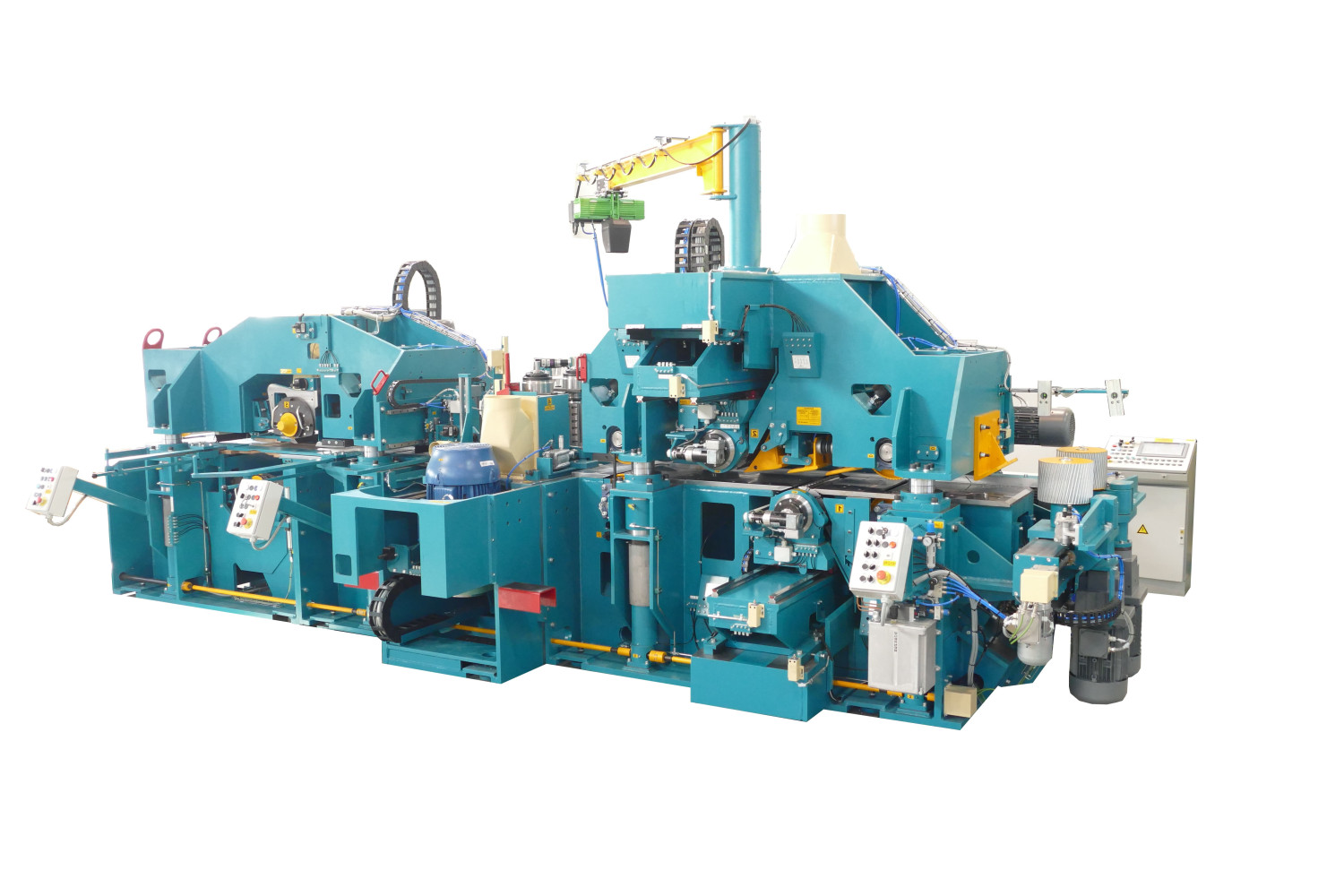

High capacity beam planer

Superles 400 / 600

One machine, for the entire production, for the best surface finish. The one and only high capacity beam planer.

SUPERLES will always provide the best surface finish on your posts, DUO-, TRIO-, glulam, beams or any other applicable product. Large dimensions are not a limit upon its speed and endurance. It is built without compromise; everything on the planer is designed with productivity, durability and effectivity in mind!

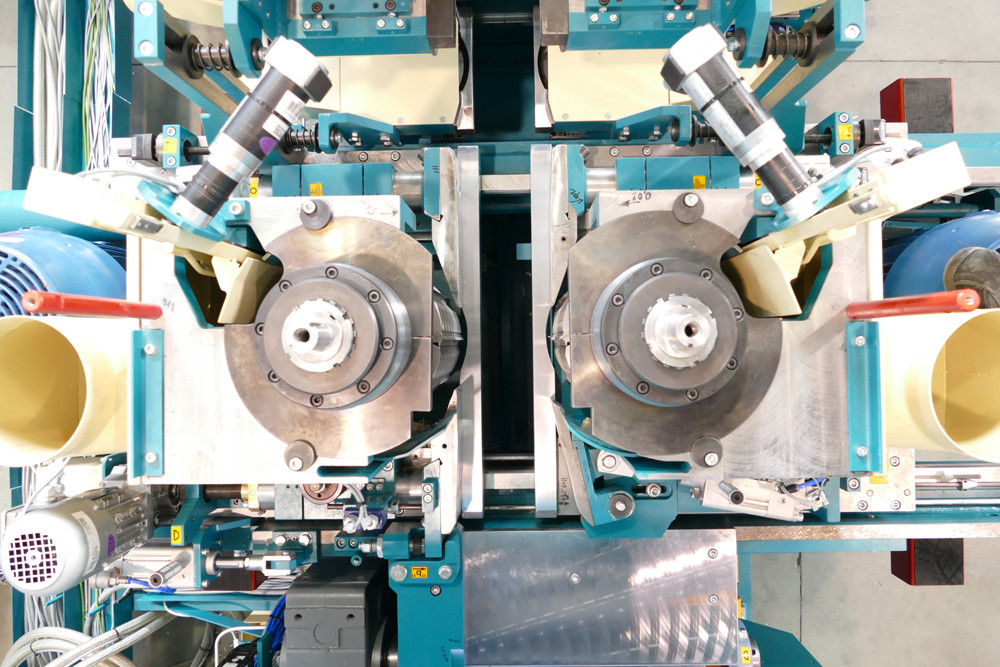

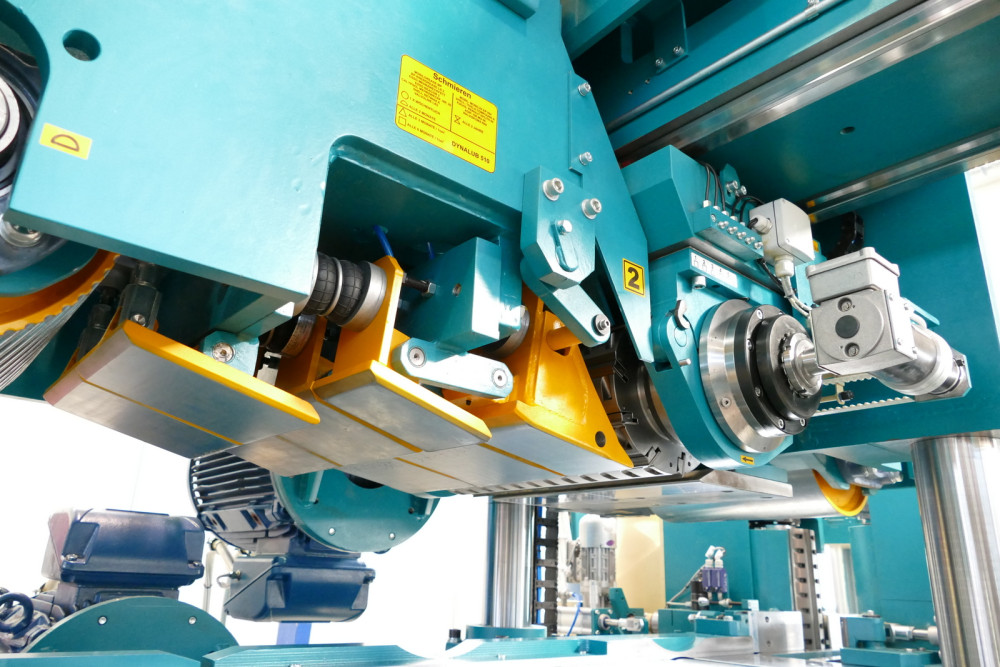

It is a collection of all the best we offer. With a wide variety of machining units to choose from: horizontal cuttershafts, vertical cuttershafts, horizontal or vertical profiling spindles, saw spindles in all orientations, chamfer, rabbet and groove cutters or floating spindles, it can be tailored to suit every requirement.

Highlights:

  • Portal design with strong clamping for best rigidity
  • Extra heavy frame for zero vibrations
  • Direct drive of working shafts
  • Integrated tool shaft bearings
  • Full PLC control for fastest retooling
  • Large automatic axial positioning for best utilization of tools
  • Strong motorization, variable frequency drives
  • Modern Surface-Durability-Speed interface for best adaptability to dimension and speed

Technical data

Superles 400 / 600
Width 400 / 600 mm
Width
Thickness 35 - 300 mm
Thickness

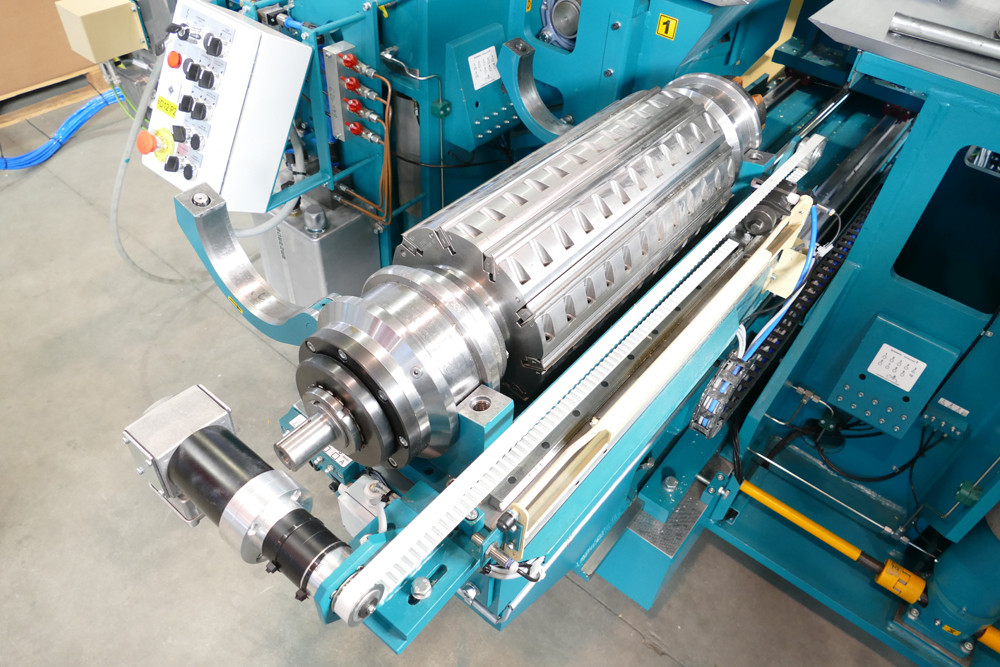

Diameter of cutterheads 250 mm
Diameter of cutterheads

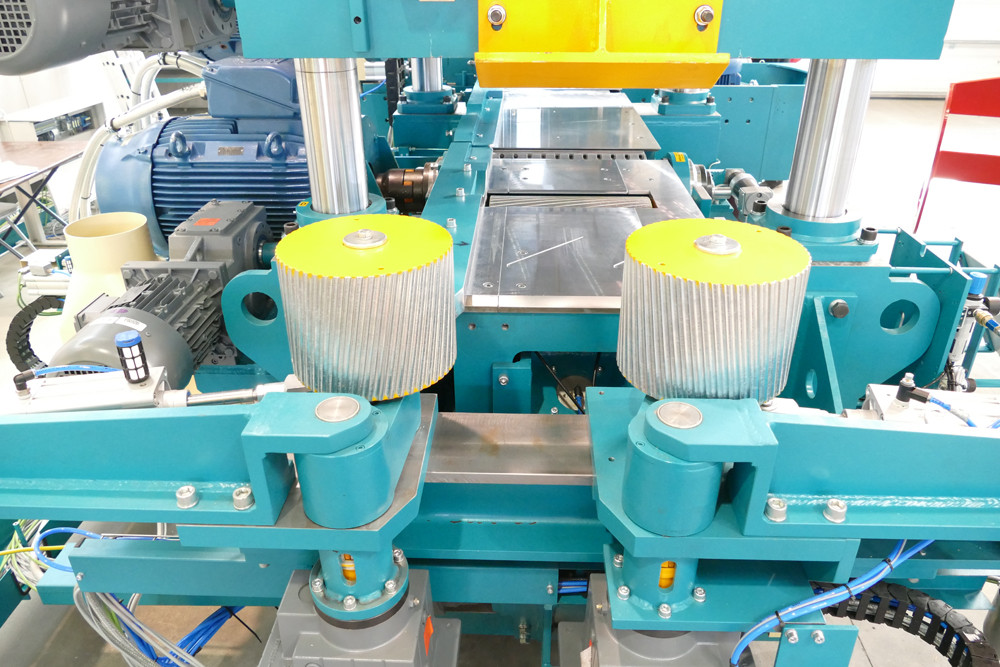

Diameter of feeding rollers 290 mm
Diameter of feeding rollers
Feeding speed 60 / 80 / 100 / 120 m/min
Feeding speed

Machine Models

Superles 600 in action
