Wide and powerful

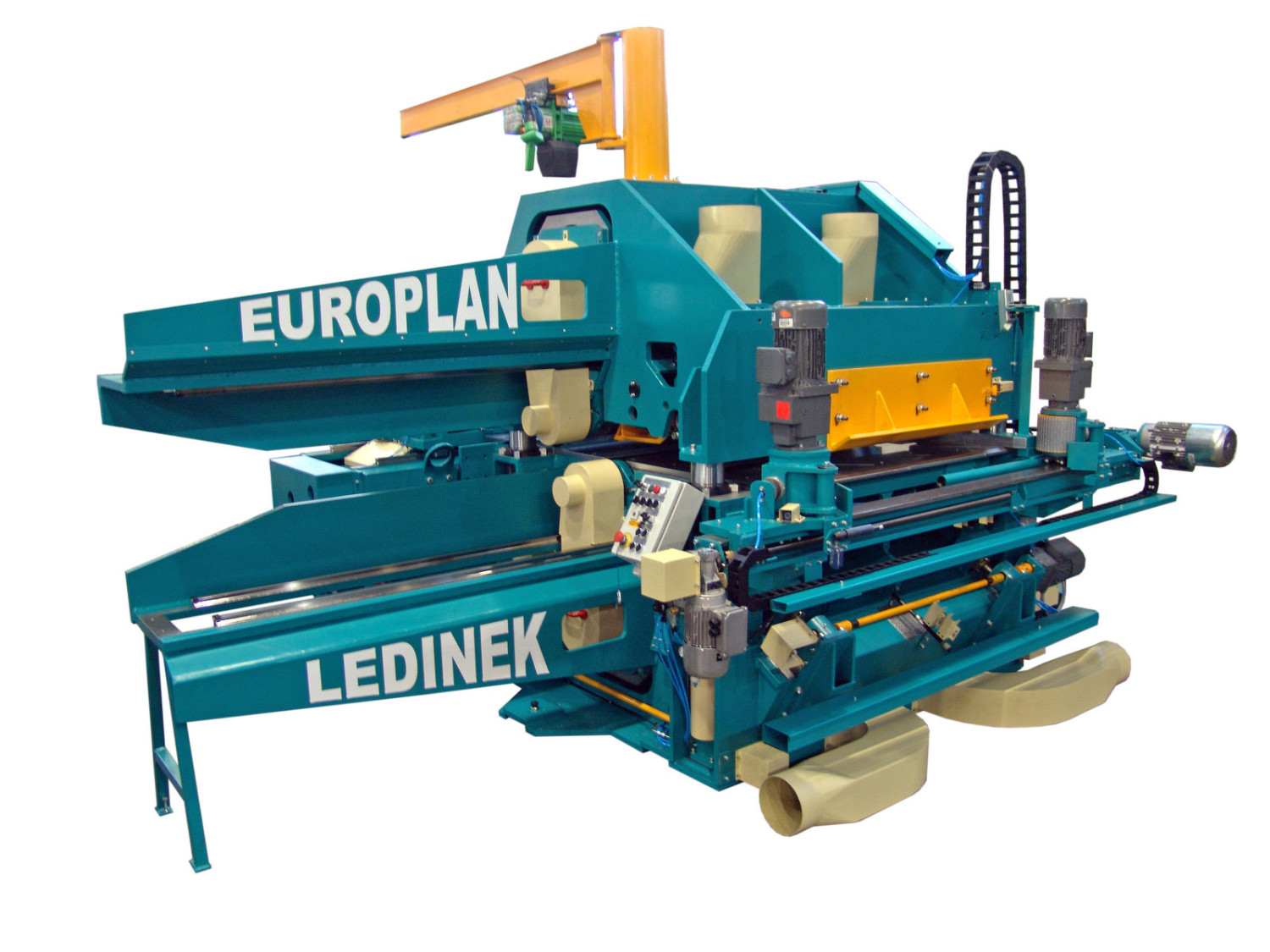

Europlan 1000 / 1300

Wide beam planer

Optimal machining solution for production of glulam.

The big EUROPLAN will handle all requirements for planing of glulam in an industrial environment. It is built in a sturdy LEDINEK manner. With a heavy frame and well dimensioned proven components. It is optimized for large cross sections and slower feeding speeds and presents an effective solution for specialized glulam production.

Highlights:

  • All the extras of a premium planer

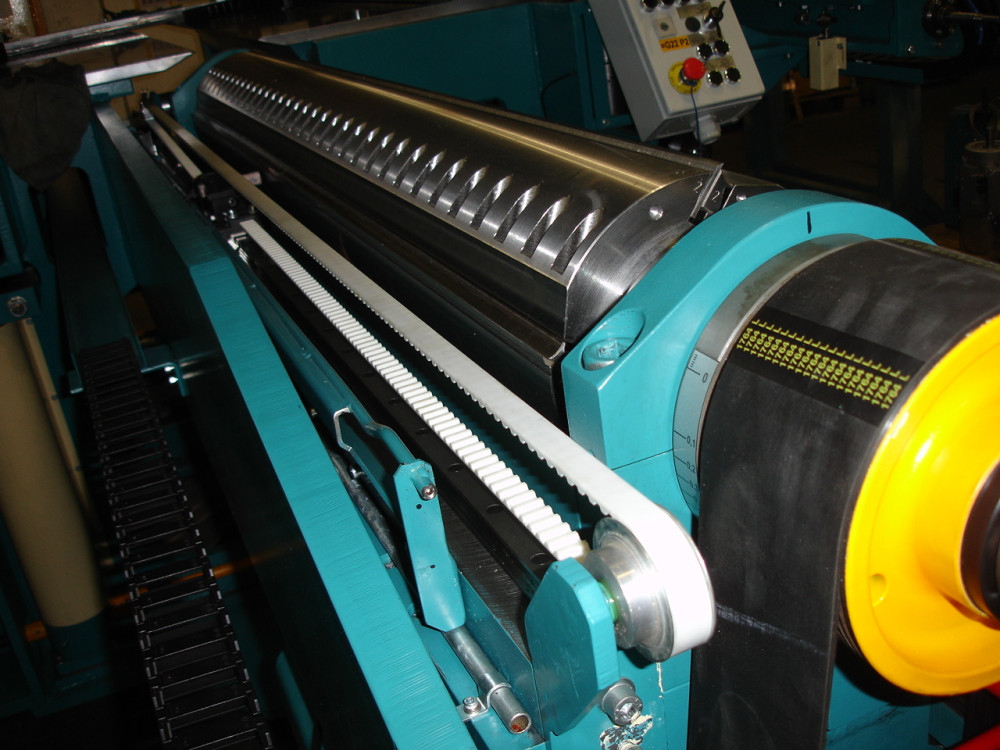

  • Exchangeable shaft system for easy replacement of tools

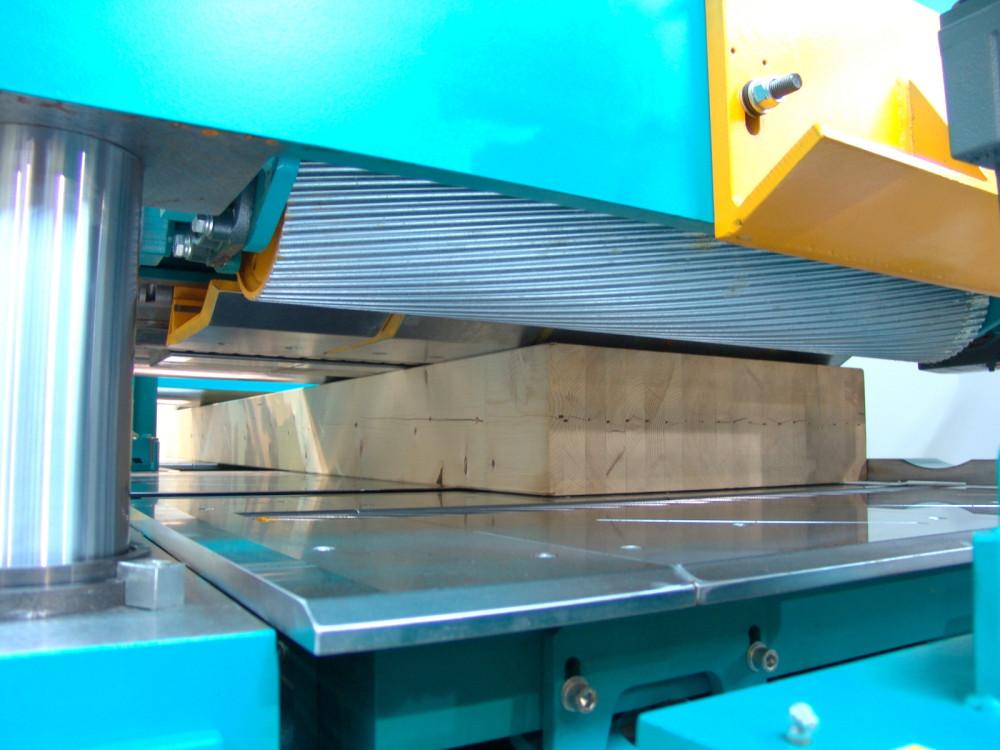

  • Oscillating horizontal cuttershafts
  • Adjustable infeed fence

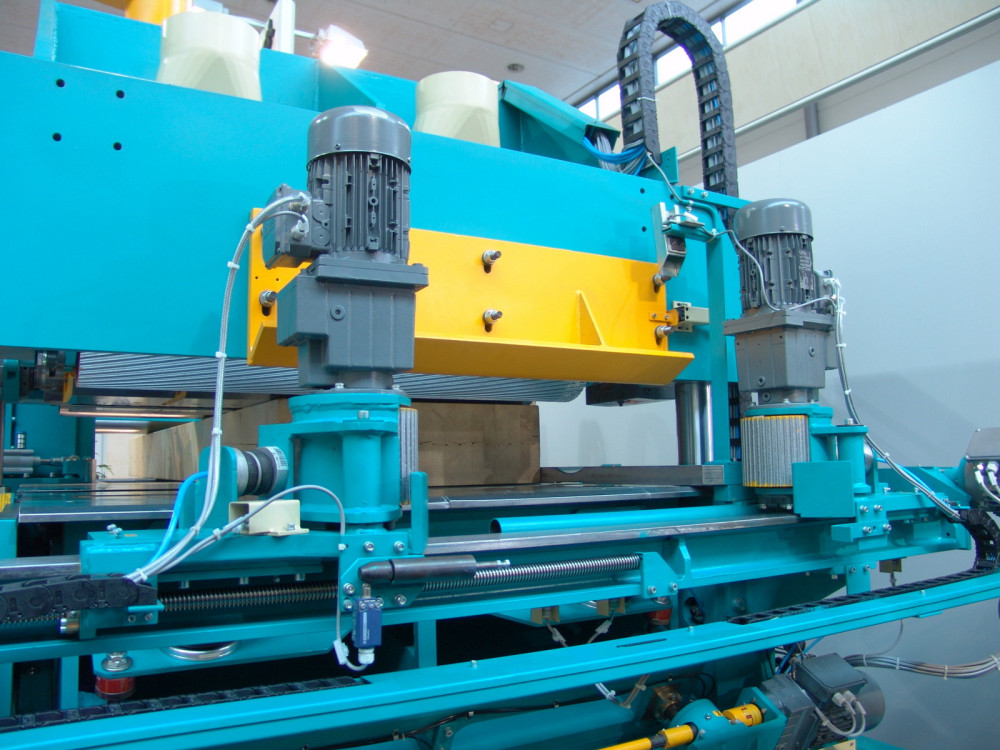

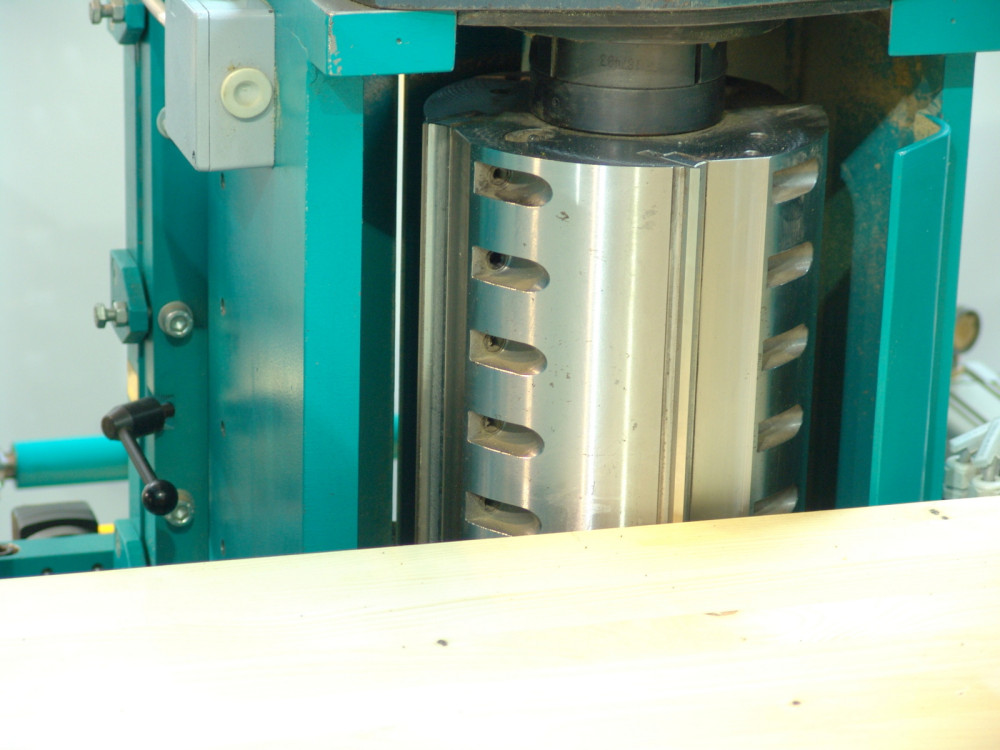

  • Floating or locked vertical spindles that can be used for planing or for profiling
  • Separate chamfering units
  • Strong hydraulic locking system
  • Hard chromed pillars and all gliding surfaces
  • Siemens Profinet PLC control system

Technical data

Europlan 1000 / 1300
Width 1.000 / 1.300 mm
Width
Thickness 35 - 300 mm
Thickness
Diameter of cutterheads 210 mm
Diameter of cutterheads
Diameter of feeding rollers 240 mm
Diameter of feeding rollers
Feeding speed 30 / 45 m/min
Feeding speed
