XT-Press

Through-feed High-performance large size CLT panels press for edge glued panels with fast changeover.

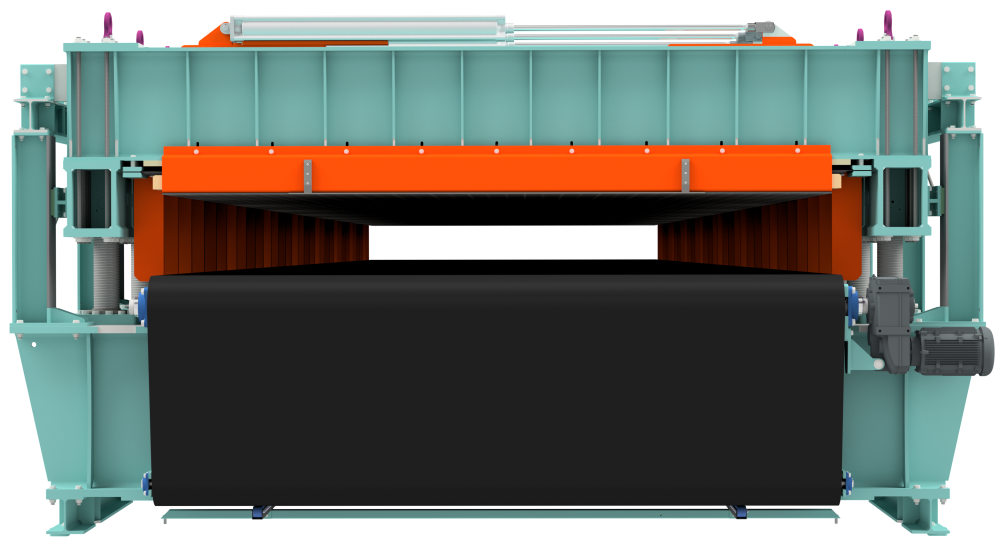

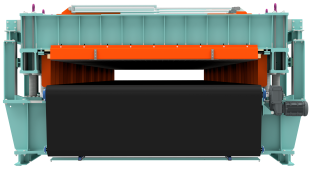

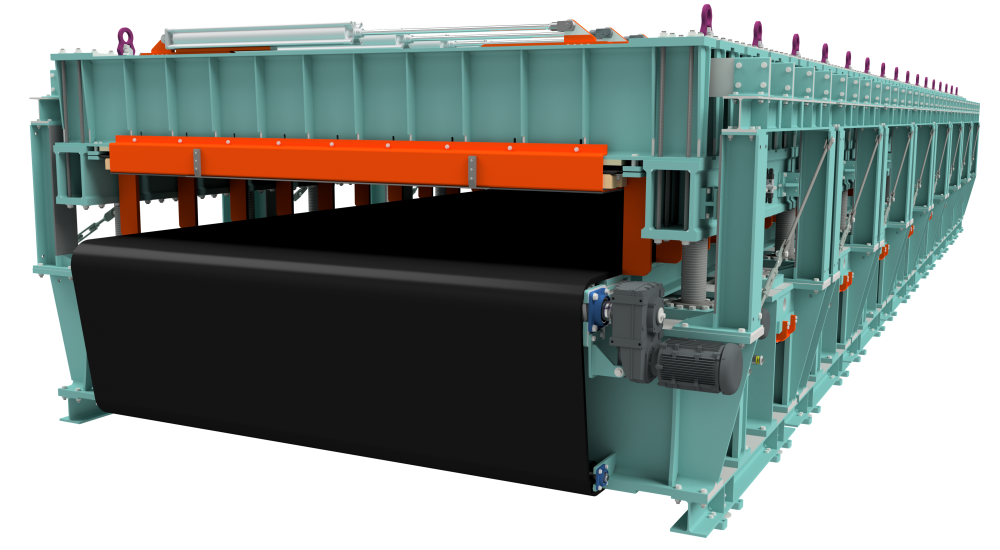

Through feed system with plastic chain belt.

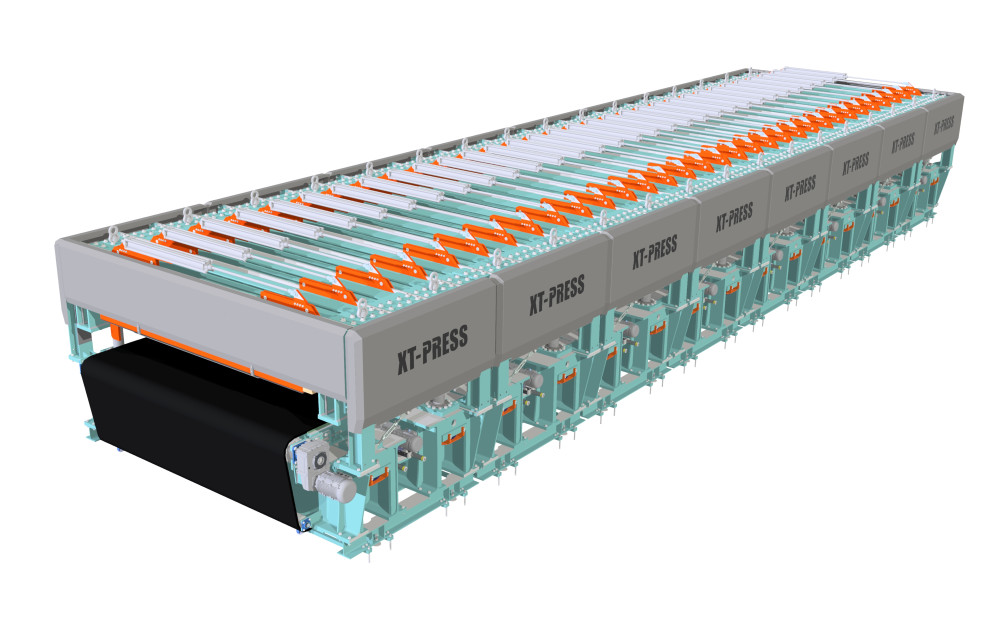

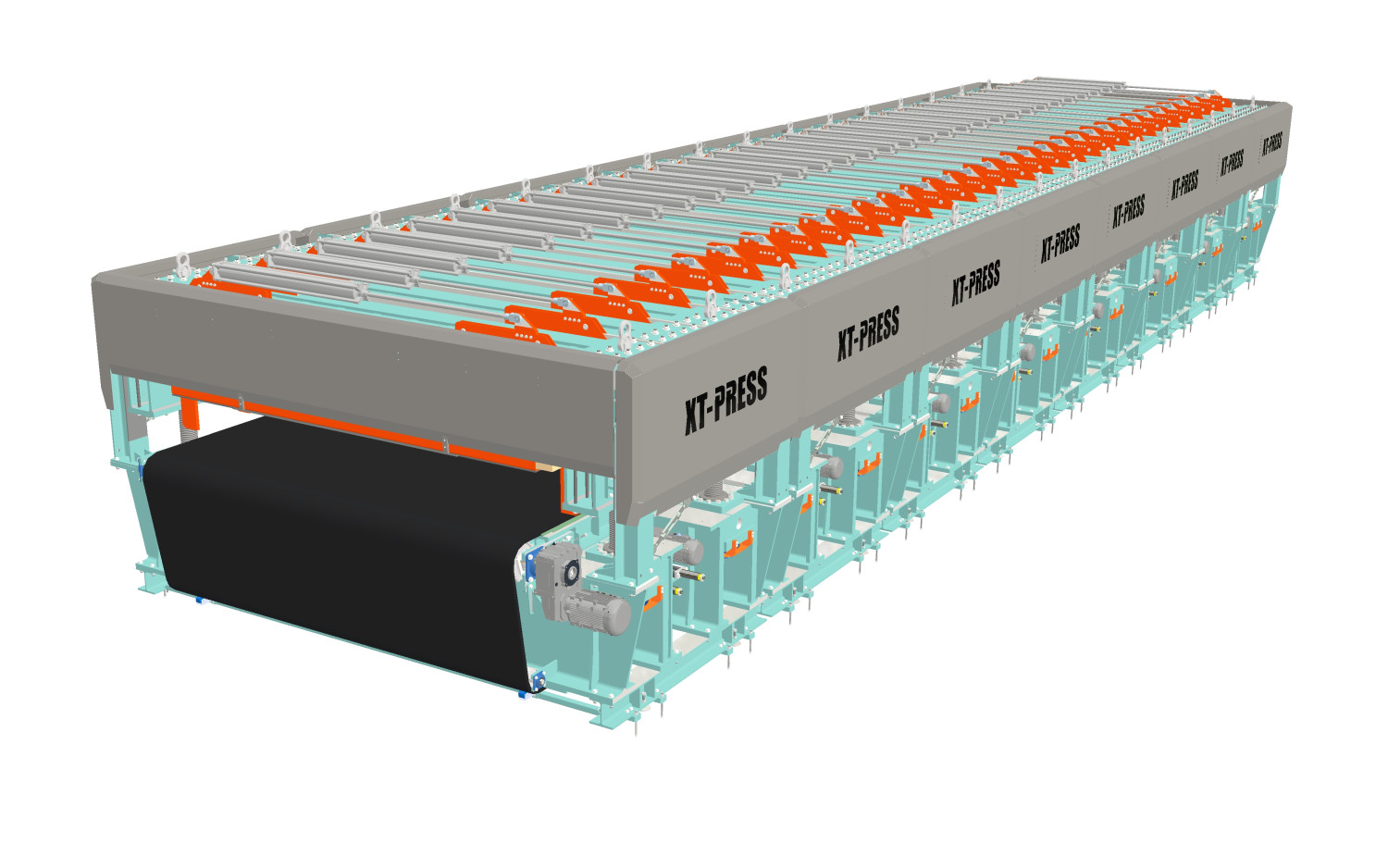

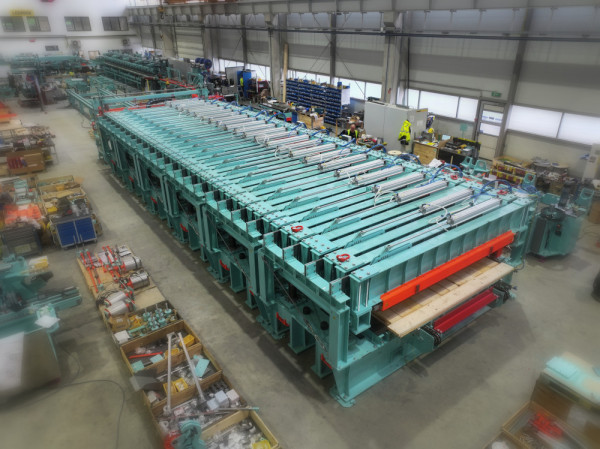

The XT-PRESS is a high-performance CLT press for the production of standard cross-laminated timber panels. The transport system uses a special chain that allows for simultaneous emptying and filling of the press.

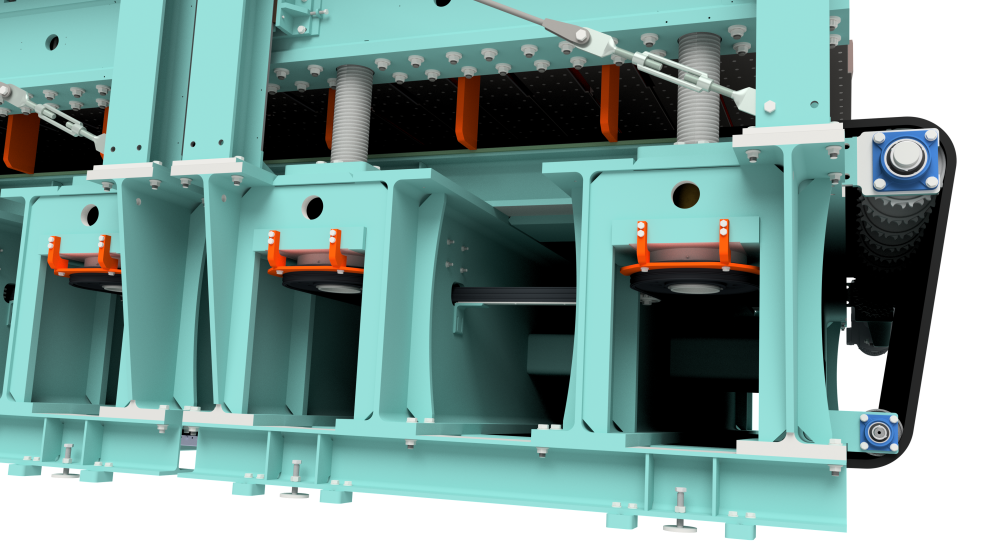

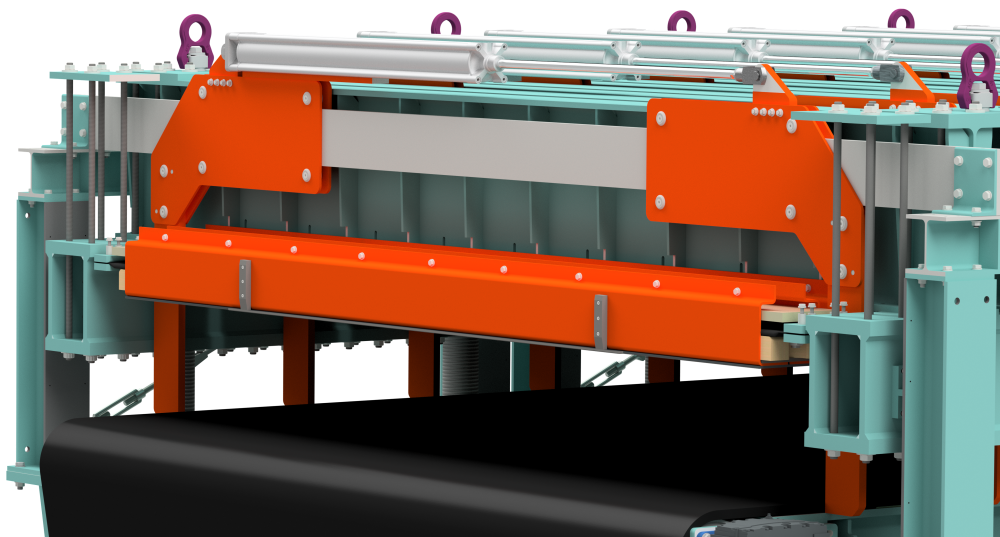

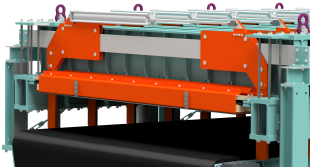

This optimizes cycle times. Side pressure is pneumatic. Front pressure is pneumatically controlled by a pivoting unit. The XT produces according to the requirements of EN 16351.

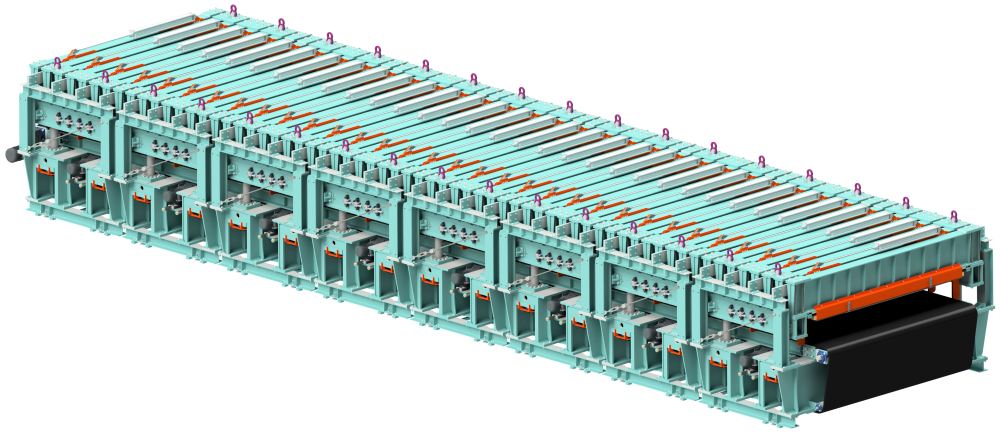

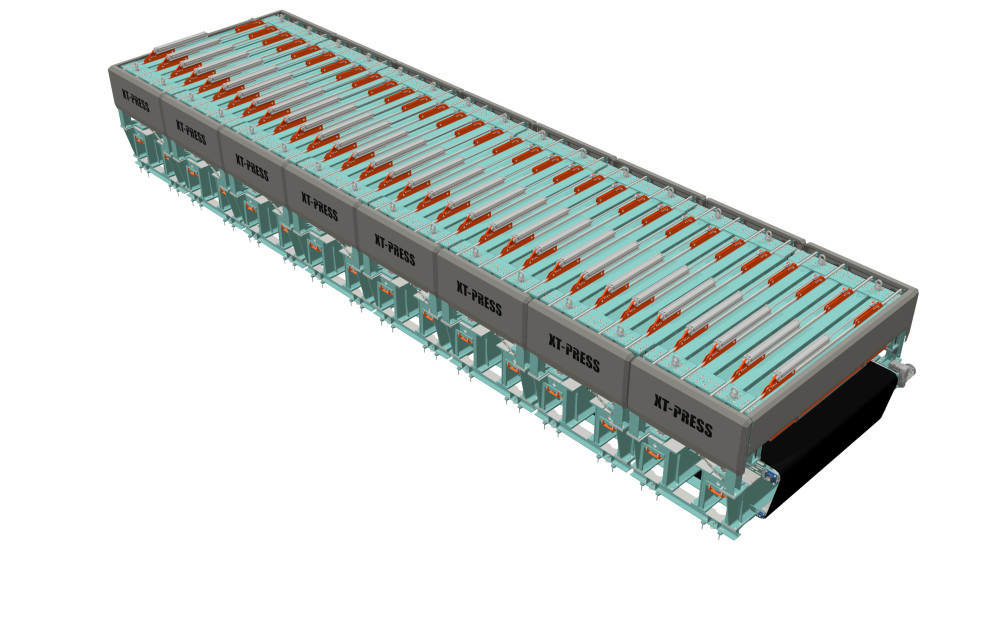

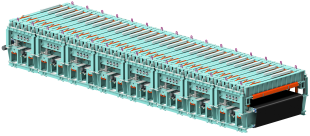

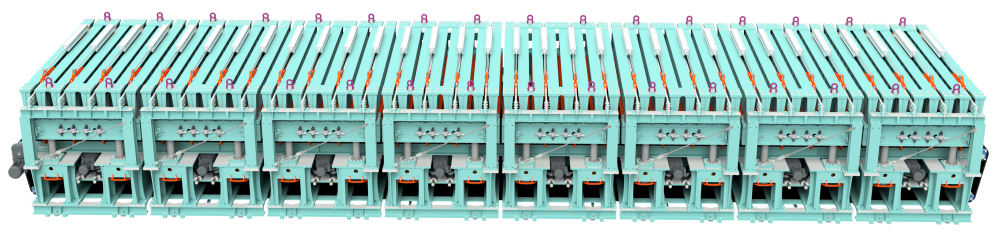

The XT press has a modular design and can be manufactured in 2.1 m increments (6 m - 20 m).
The XT-Press guarantees the highest precision, performance, and product quality. Prefabricated timber walls, ceiling elements, and complete houses—everything is possible.

Highlights:

  • Pneumatic pressure buildup
  • High capacity
  • Strong top pressure up to 0,8 N/mmup to 1,2 N/mm²l
  • Independent side pressure for virtually any length
  • Thickness independent front pressure
  • Precise glue application
  • Moveable transport carriage
  • Automatic sequence control

Benefits of pneumatic pressure buildup:

  • High force through flat tubes
  • No hydraulic cylinders and valves
  • Low and steady consumption of energy
  • No oil - no leakage
  • No heat
  • Environmentally friendly
  • No high frequency radiation
  • Low maintenance

Technische Daten

XT-Press
Pressing thickness 60 - 360 mm
Pressing thickness
Pressing width 2.400 - 3.500 mm
Pressing width
Pressing lenght 6 - 18 m
Pressing lenght
