X-Form for CLT formatting

X-Form 3600

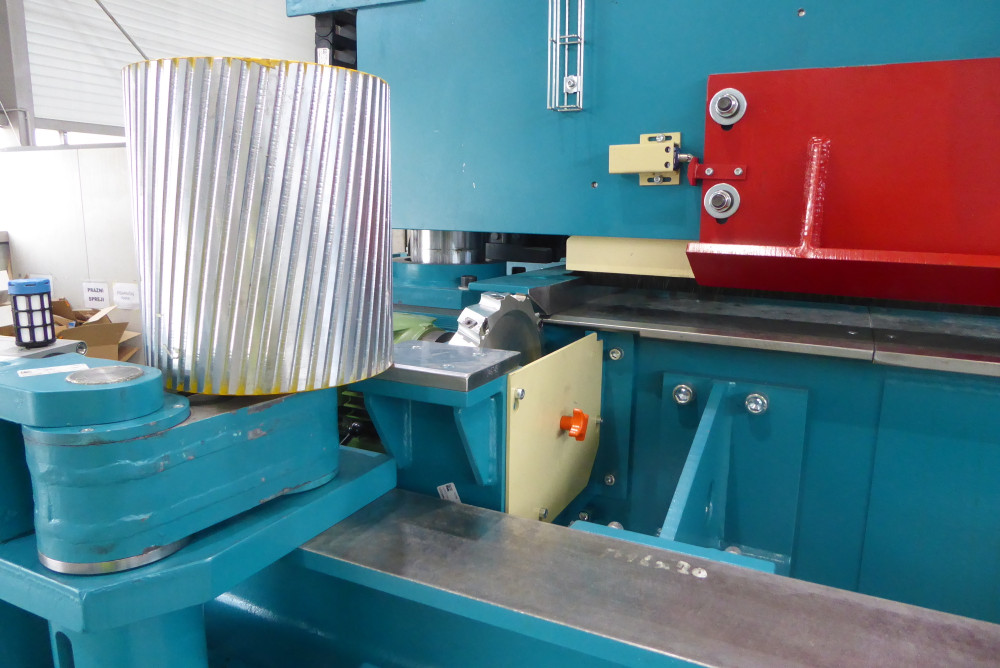

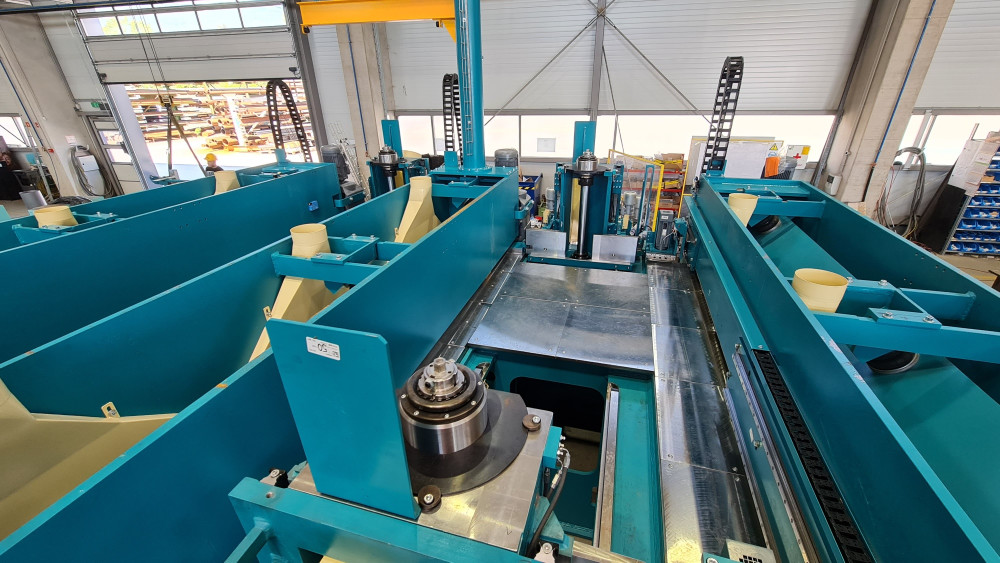

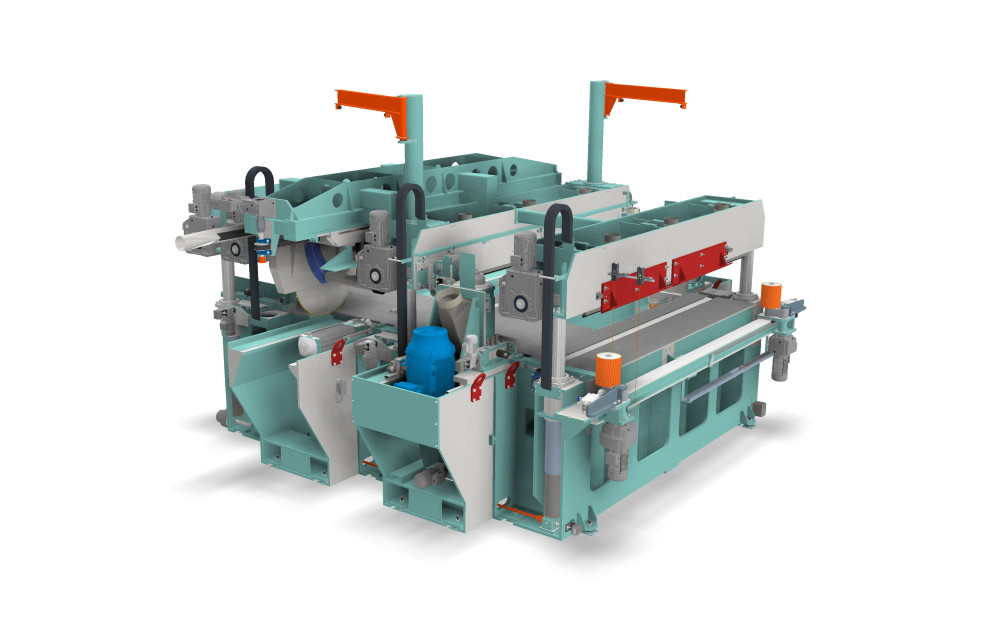

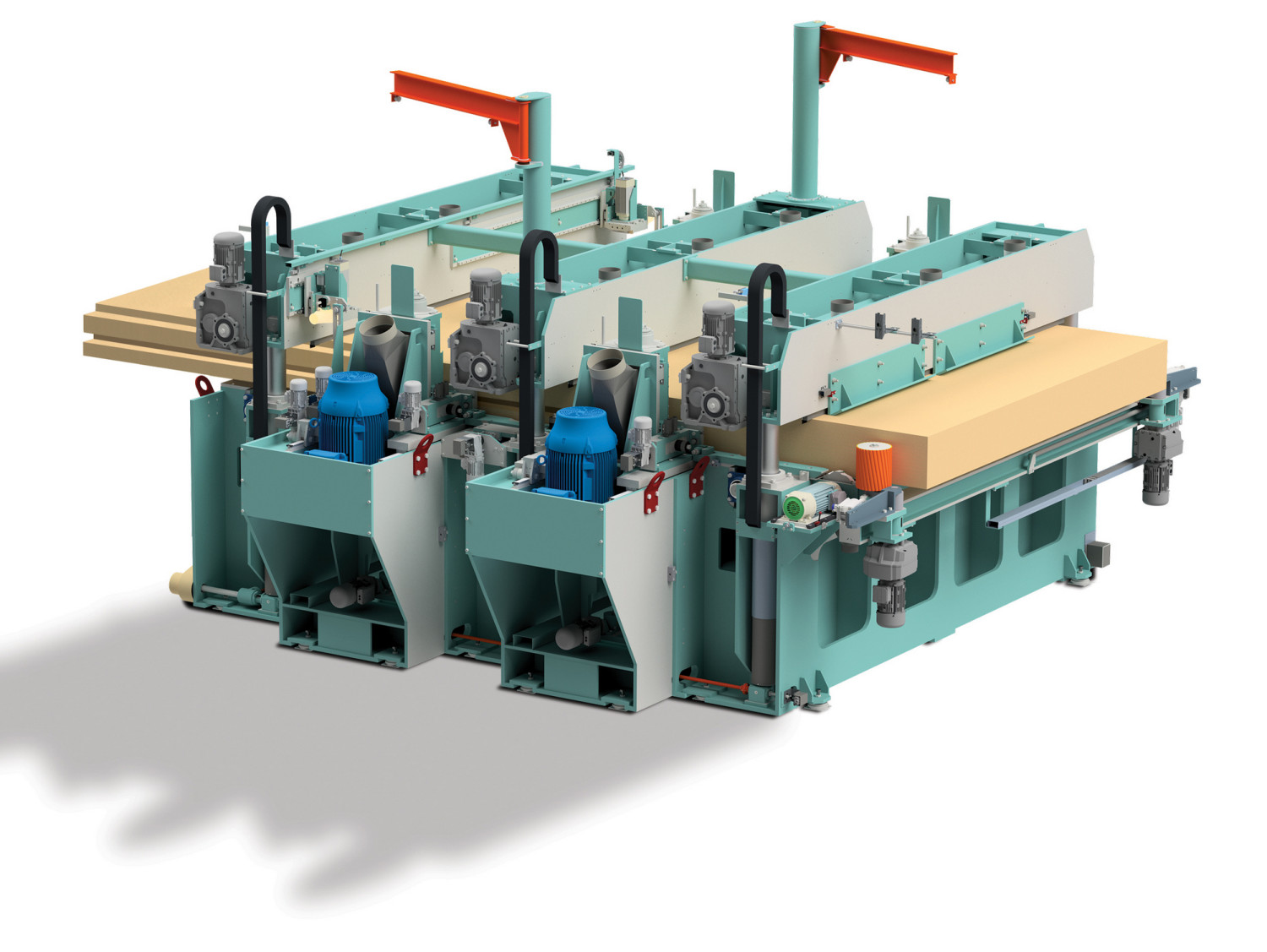

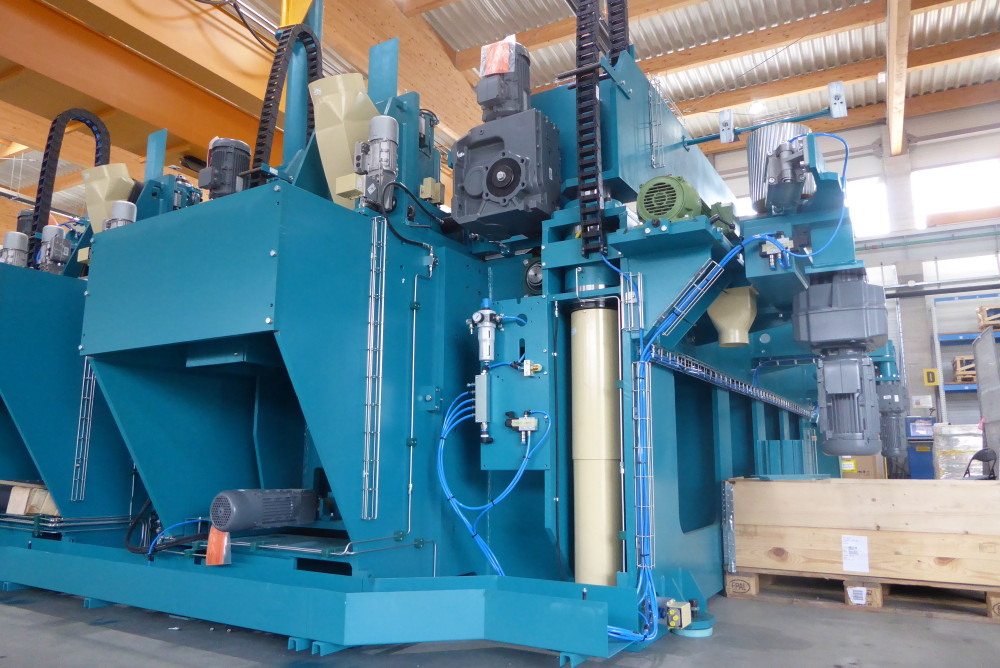

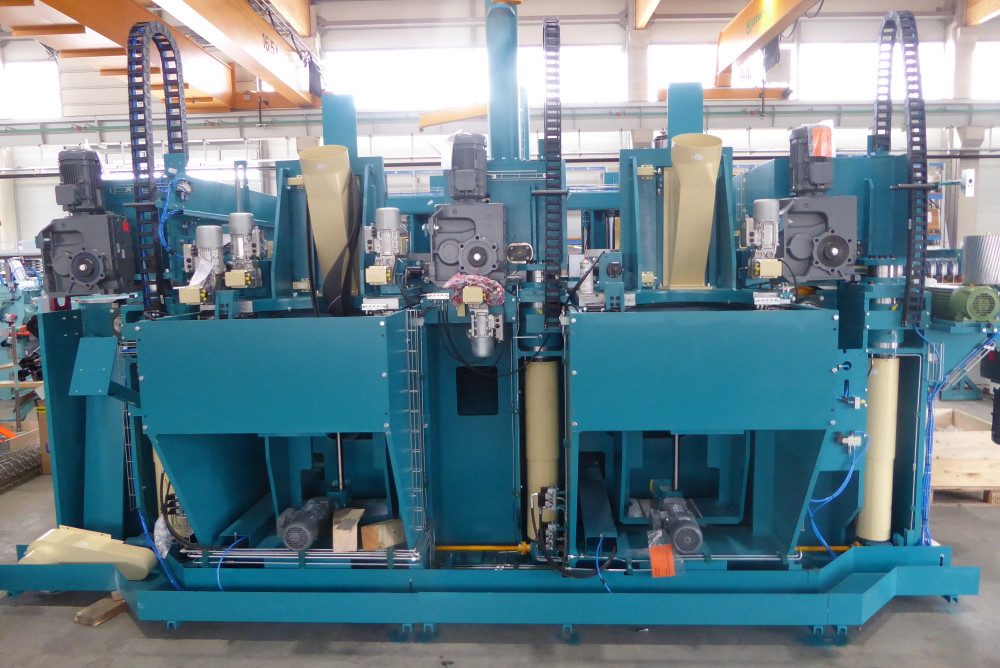

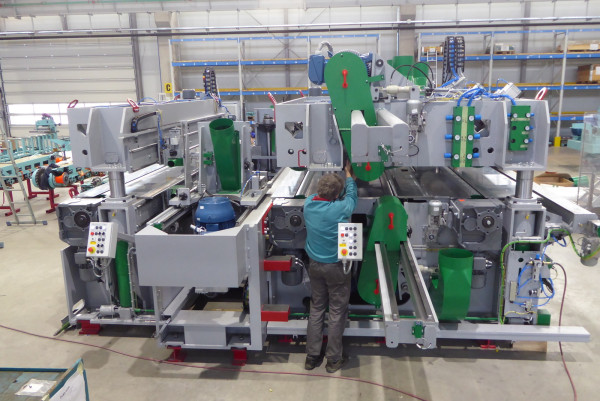

This multi-spindle processing machine has been specially developed for processing solid wood, for use in automated cross laminated timber (CLT) production plants. It is particularly suitable for pre-formatting of glued multi-layer wood panels. The processing with X-Form increases the value of the cross laminated timber panel as a semi-finished product or reduces the processing time on the CNC system

Highlights:

  • Formatting of raw CLT billets

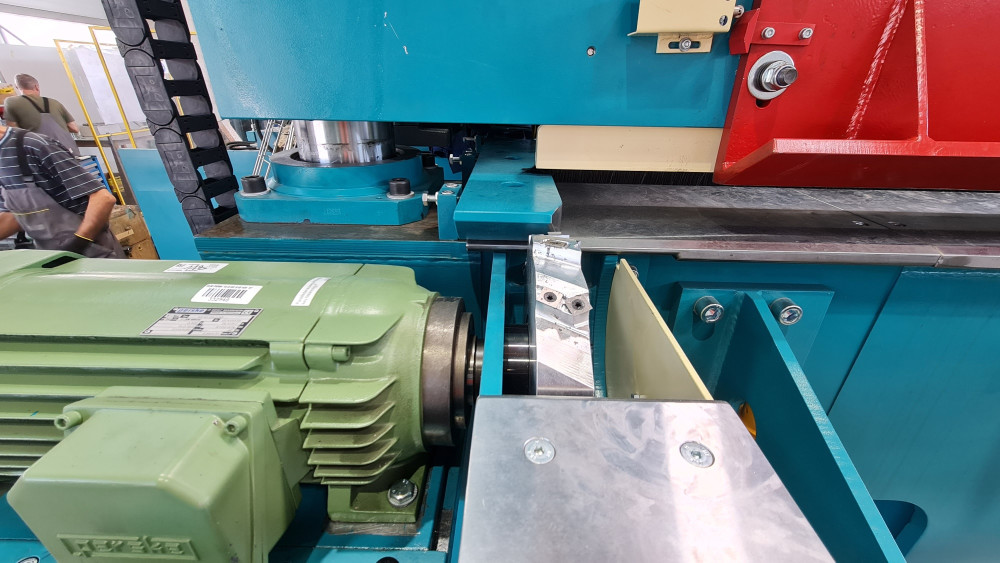

  • Large cut off due to massive motor power
  • High feeding speed due to heavy duty feeding system
  • High performance tooling for perfect surface and lifetime
  • Heavy frame 60.000 kg

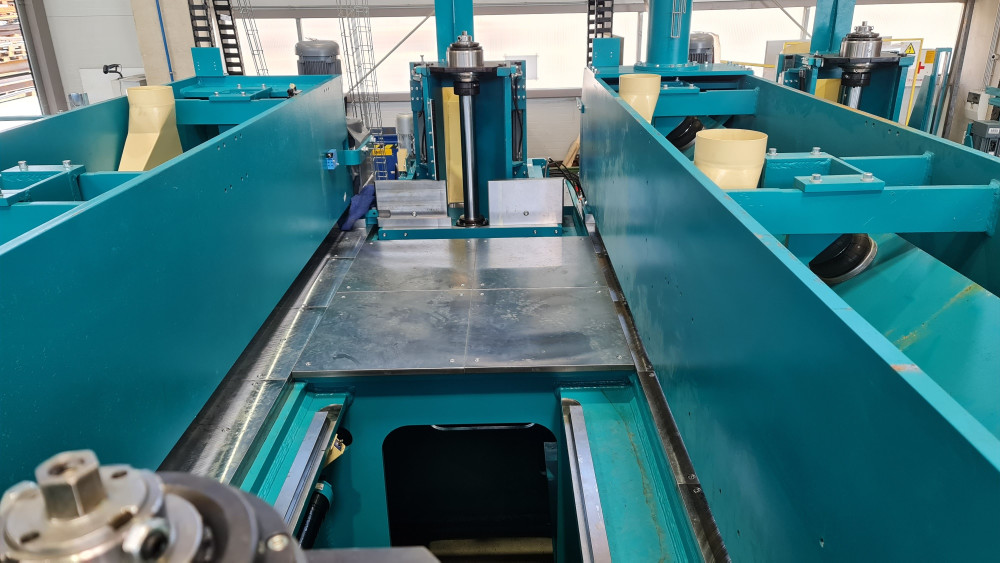

  • Robust and powerful feeding rollers

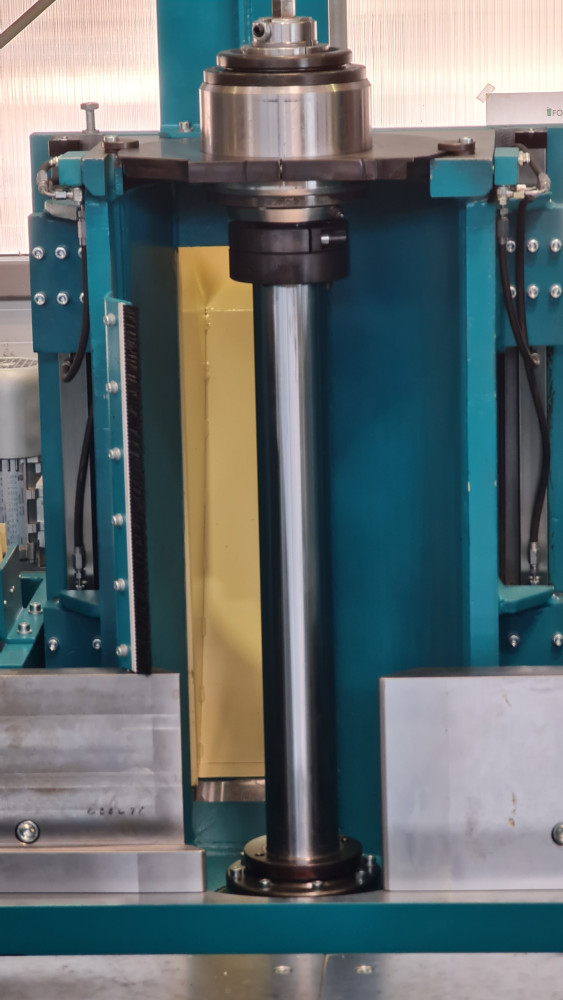

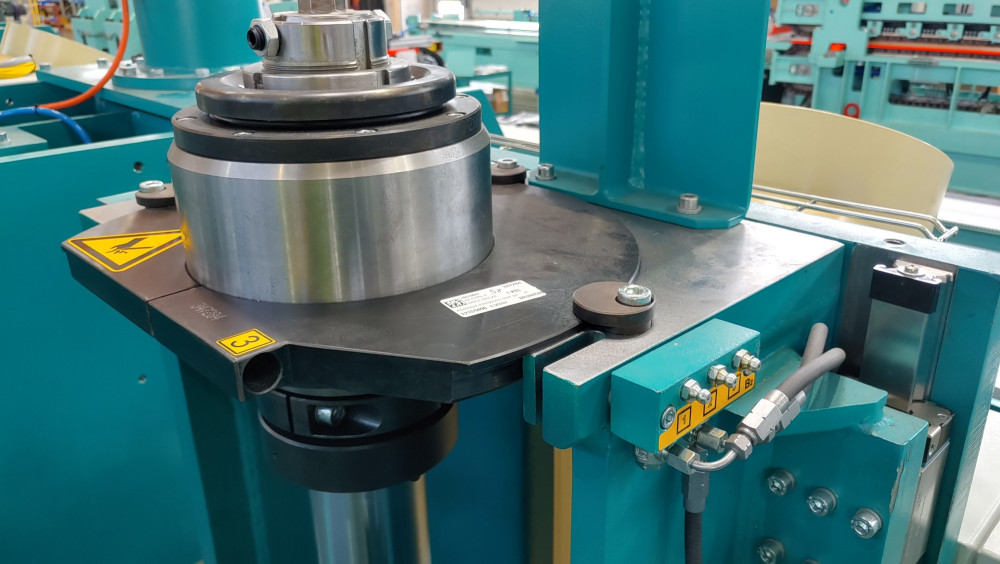

  • Tooling spindles for easy exchange of tools with bearings

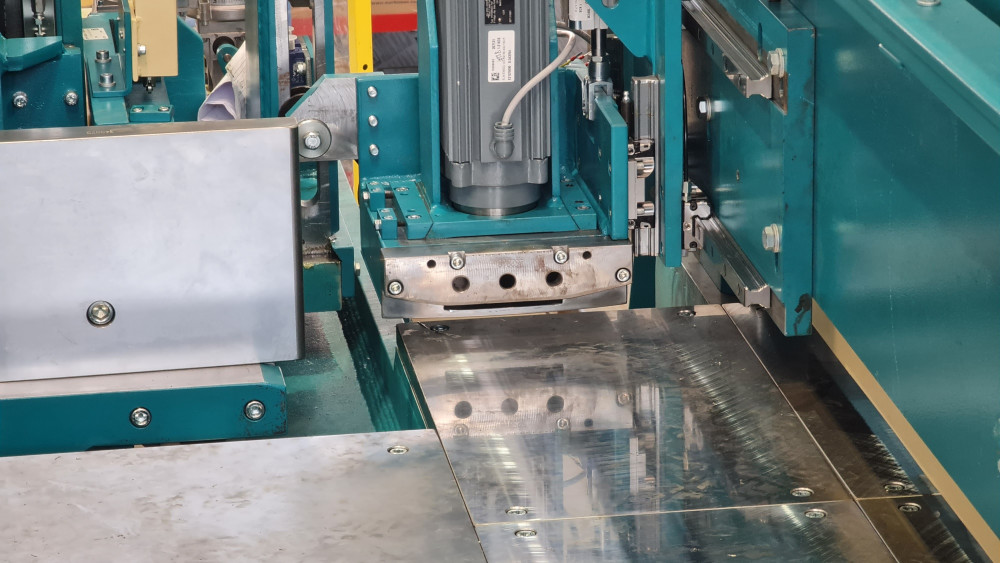

  • Optional chamfering units 2 or 4 sides

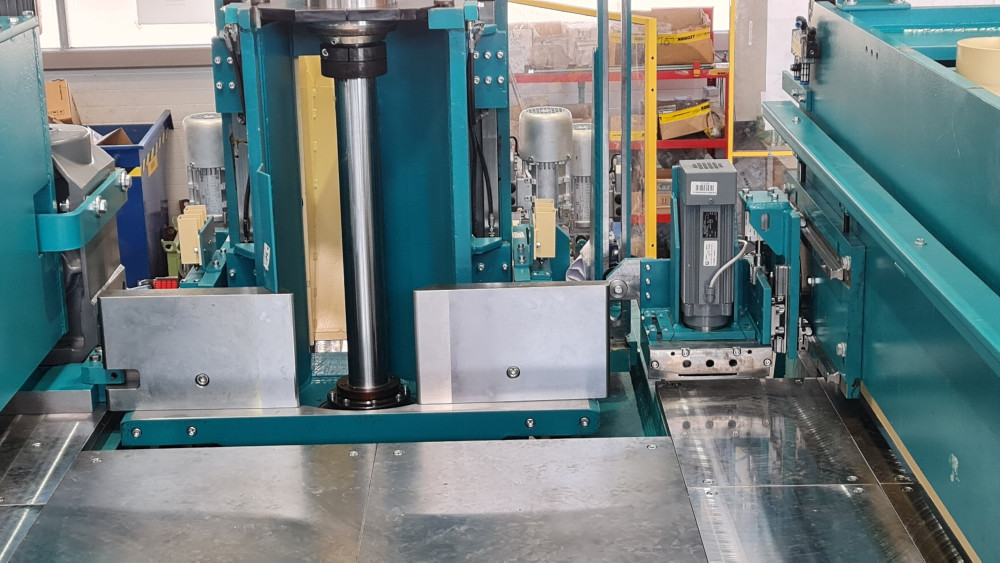

  • Large axial setup range of vertical tooling for fast profile change
  • Additional units are available
  • Groove units bottom/top and left/right (vertical spindle)
  • Rabbet units bottom/top and left/right (horizontal spindle)
  • Horizontal top and bottom profiling (for acoustic panels)
.

Technical data

X-Form 3600
Thickness 40 - 600 mm
Thickness
Width 1.800 - 3.600 mm
Width
Diameter of cutterheads 200 - 340 mm
Diameter of cutterheads
Diameter of feeding rollers 310 mm
Diameter of feeding rollers
Feeding speed 5 - 20 m/min
Feeding speed
