Without compromise

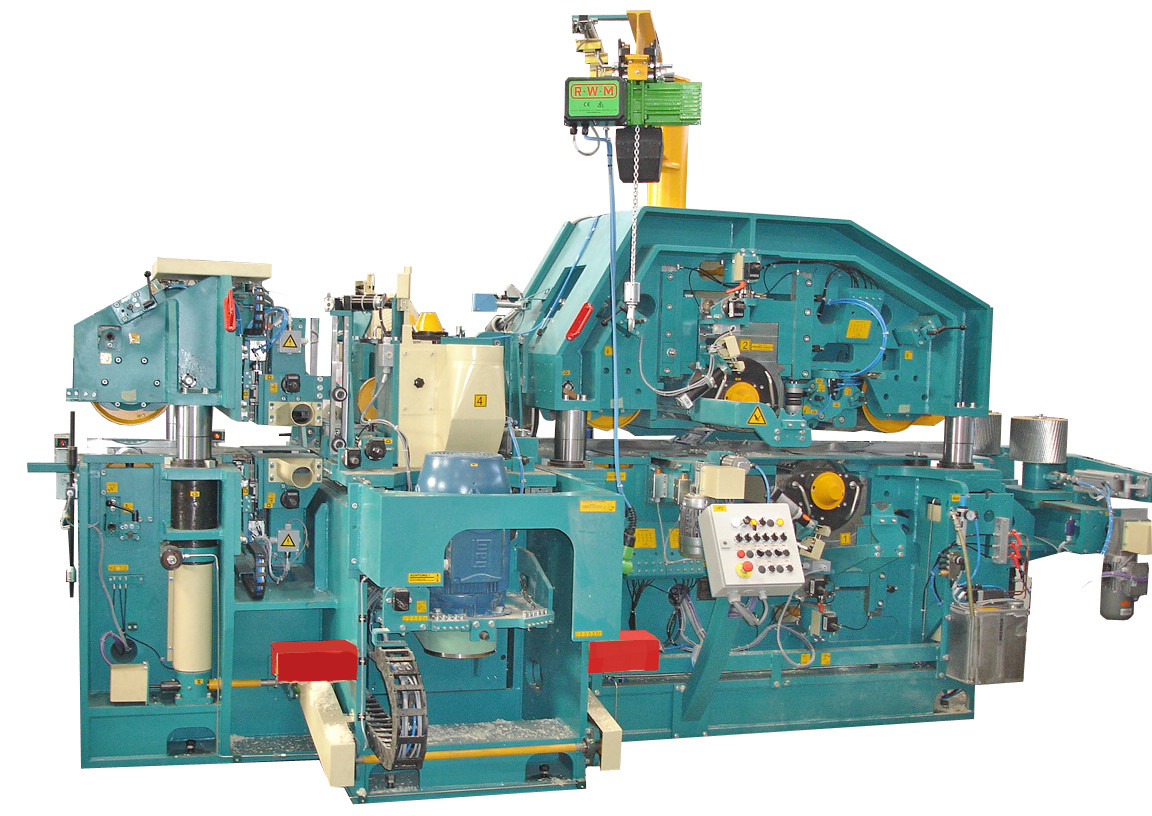

Superplan-B S60 / S120

SUPERPLAN moulding quality is also available for solid construction timber, with no compromises.

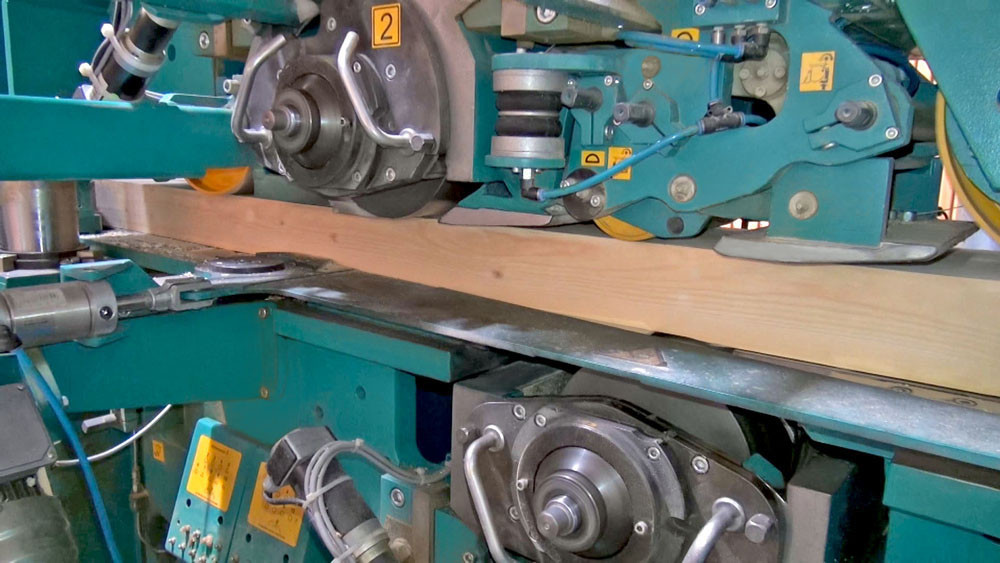

Based on our Superplan family of robust but precise moulders, the SUPERPLAN-B also offers the additional benefit of machining workpieces of up to 300 mm in height. The focus is still on superb surface quality. Imagine a smooth profiled board; you can also achieve the same surface on a post or a beam. Made using a tough and robust machine that can deal with any dimension with ease.

Highlights:

  • Portal design for stronger rigidity

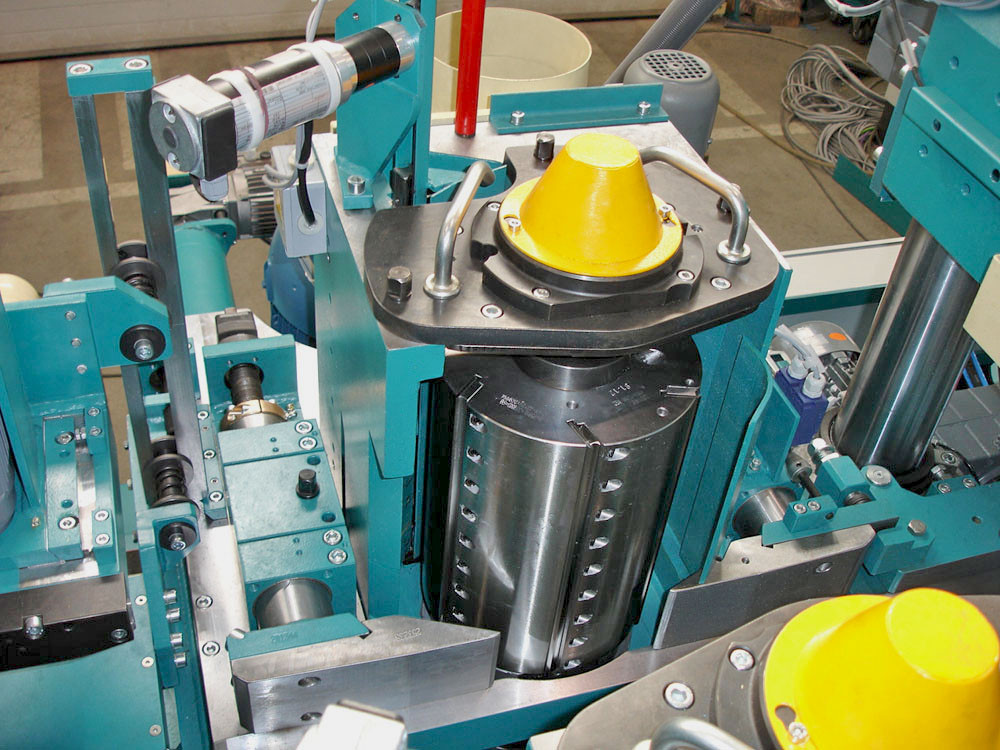

  • Bigger tools for shallow knife wave,  smooth and accurate surface

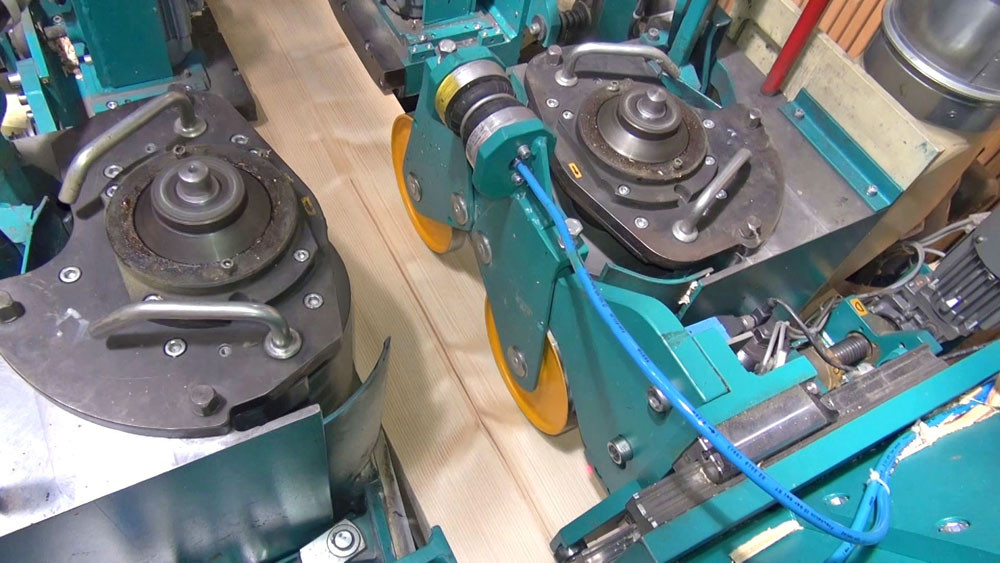

  • High vertical spindles with support bearing and floating action
  • Axial adjustment for all spindles
  • Independent chamfering units
  • Easy tooling solutions for splitting with eased edge
  • Extra heavy frame
  • Comprehensive fully PLC supported automated setting system

Technical data

Superplan B S60 / S120
Width 70 - 300 mm
Width
Thickness 19 - 300 mm
Thickness
Diameter of cutterheads 250 mm
Diameter of cutterheads
Diameter of feeding rollers 310 / 240 mm
Diameter of feeding rollers
Feeding speed 60, 80, 100, 120 m/min
Feeding speed
