Fast and productive

Eurozink 1500

Fast and productive

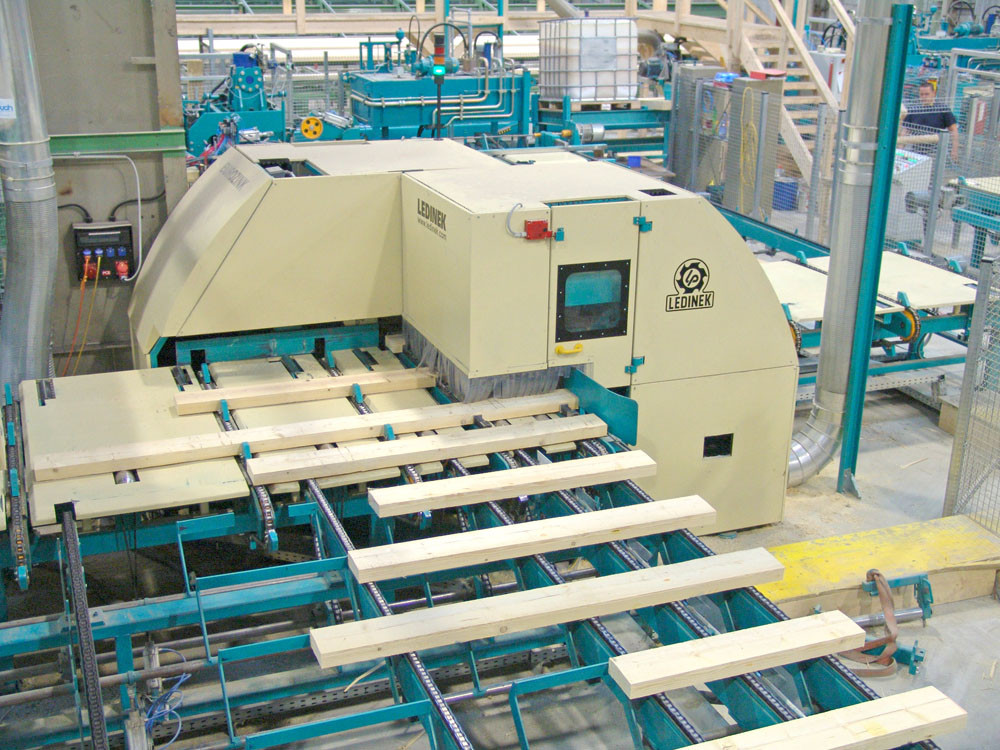

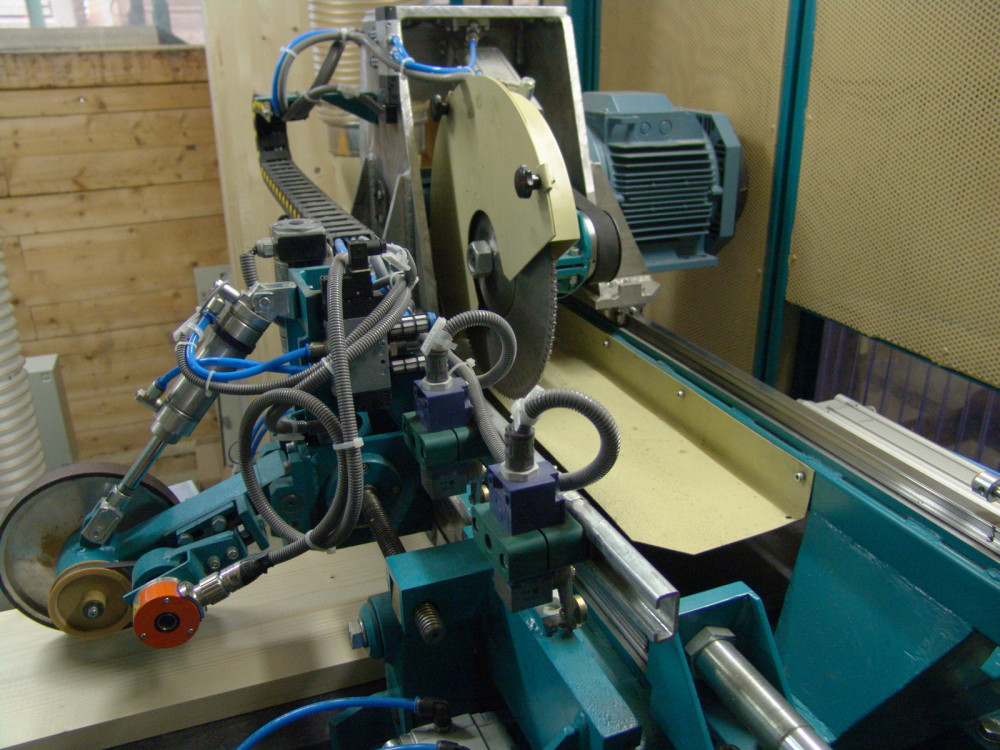

Single piece finger jointing system with high power cycle press for production of solid construction timber and glulam laminations.

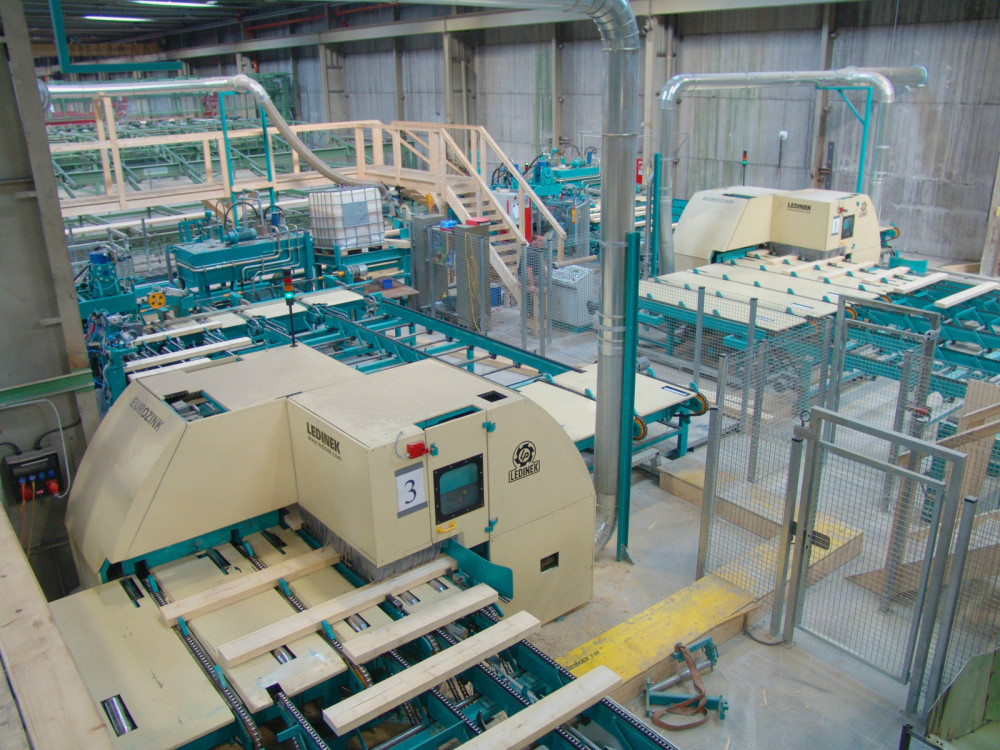

This machine is perfectly suited for production lines designed for high output volume of timber with large cross sections. All components of the machine are well-designed and robust, comprising a strong backbone for this excellent machine and ensuring a long life cycle even at high strains presented by enormous loads of heavy timber.


Highlights:

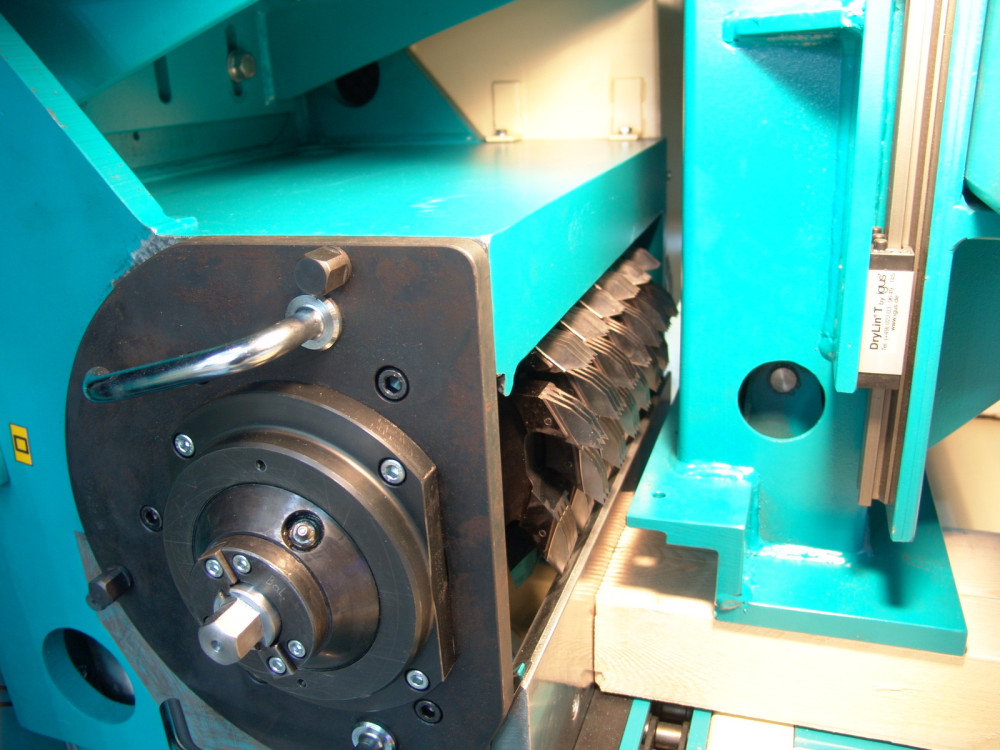

  • Single piece milling system
  • Individual clamping – very exact joint
  • Suitable for unplaned sawn timber
  • Random lengths up to 6 m
  • Big workpiece cross section

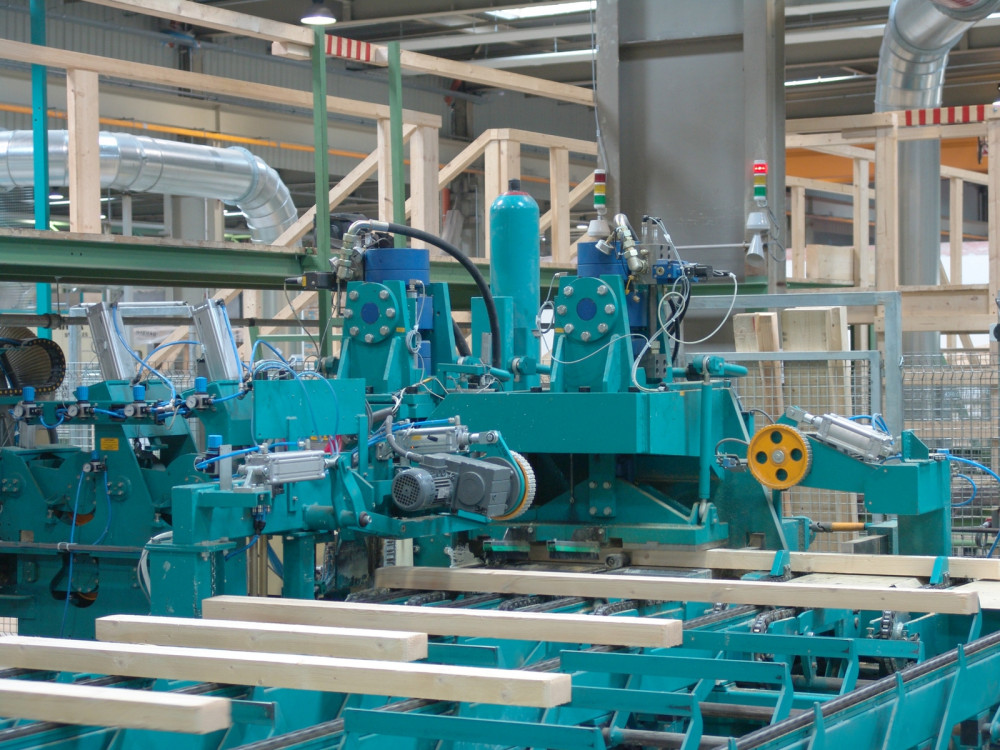

  • Strong hydraulic press
  • Contactless computer controlled glue application
  • Maximal productivity

Benefits of the single piece finger milling system:

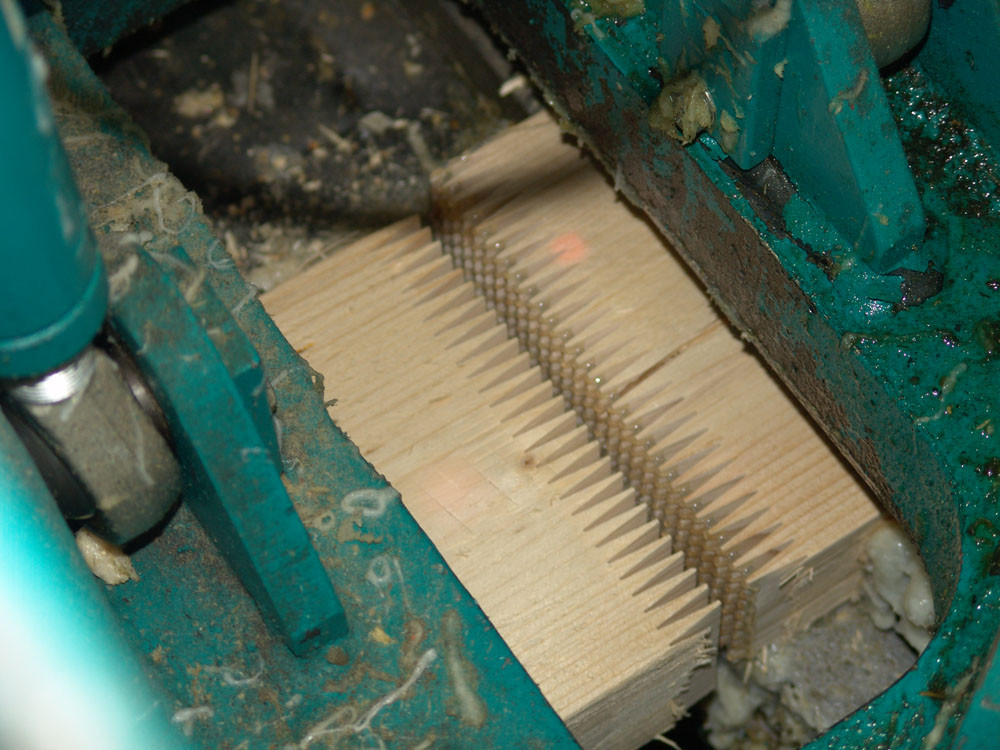

  • Excellent alignment of finger joints
  • Every workpiece is independently aligned against reference surface
  • No addition of thickness deformations in the package
  • Uniform application of glue on every workpiece
  • Insensitive to the variable lengths of the workpieces

Technical data

Eurozink 1500
Width 85 - 300 mm
Width
Thickness 20 - 110 mm
Thickness
Cycles 12 1/min
Cycles
Typical capacity 1.500 m/h
Typical capacity
Feeding speed 40 m/min
Feeding speed

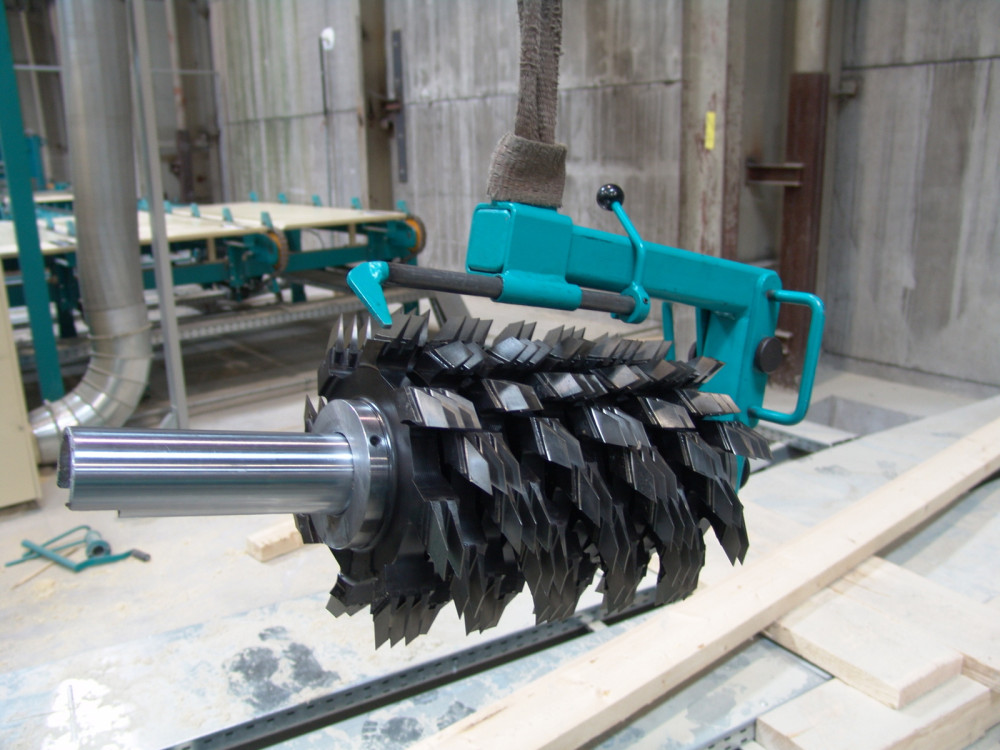

Diameter of finger cutters 260 mm
Diameter of finger cutters
