ROTOLES Revolution

Rotoles D calibrating milling planers with belt feed

Superb accuracy for lamellas and excellent machining results of extremely thin workpieces at high feeding speeds.

ROTOLES D calibrating machines are the best choice for calibration of lamellas and panels.

Face milling method offers improved quality of machining compared to conventional planing:

  • No planer snipe
  • No planer marks
  • Higher calibration precision at high machining speed
  • Perfect machining of wood knots and their edges or any damaged areas
  • No deformation of cell structure, therefore smooth and open pore surface

These features present significant advantages for subsequent processing:

  • Lower consumption of glue for glulam beams, panels and parquet
  • Uniform glue bond - consistent delamination test results
  • Better penetration of varnish, oil or wax into the wood structure

    The one-side or two-side calibrating milling machines are suitable for exact calibration of thin top layers for multi-layer boards or other calibrating tasks for thin and wide workpieces. In many processes, the machine can be used instead of a thickness planer or a sanding machine: in the first case providing better machining security and unparalleled surface quality and in the latter case also multiplying the capacity. It is suitable for processing of hardwood as well as softwood. The advantages are specifically evident when machining hardwood.

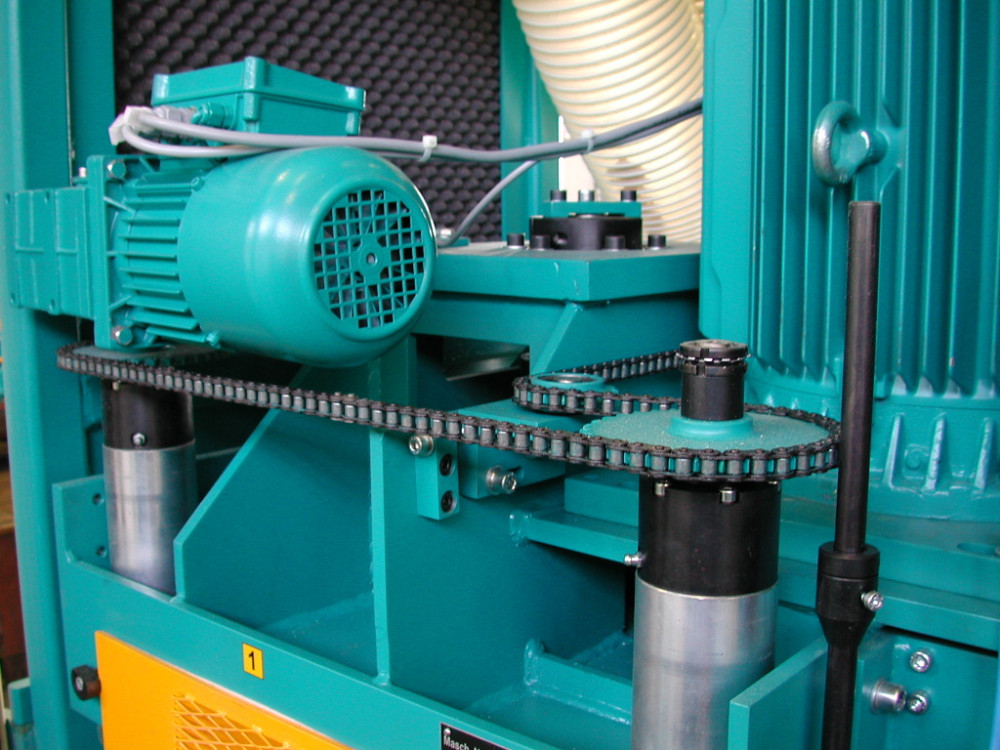

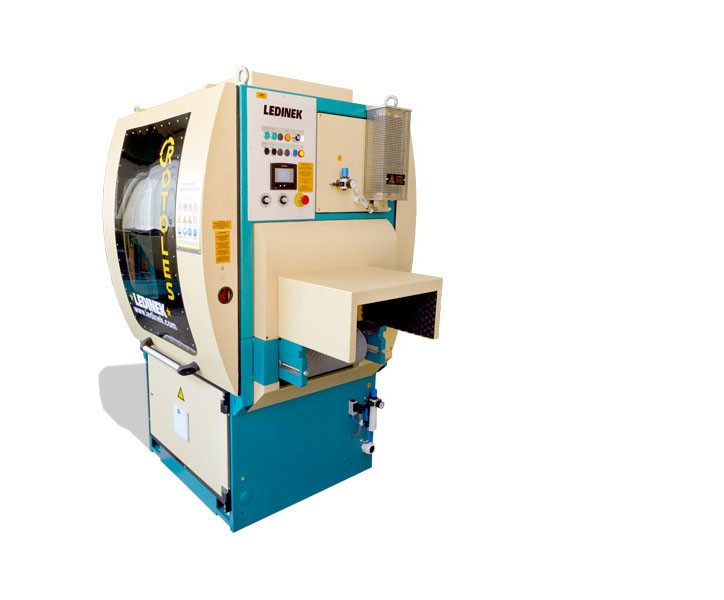

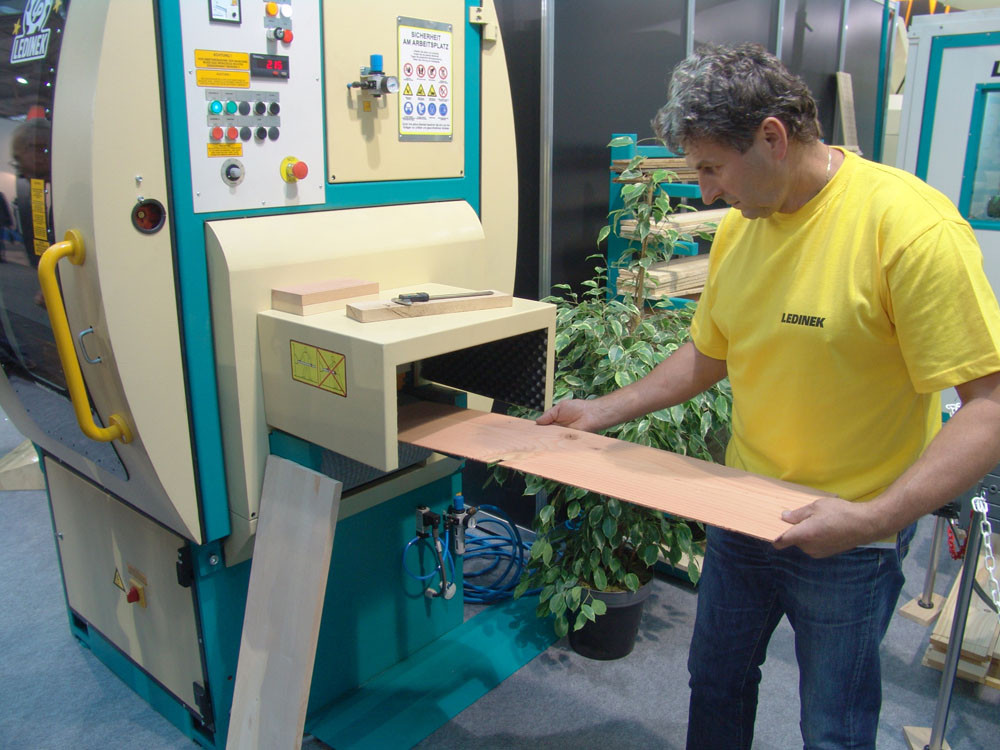

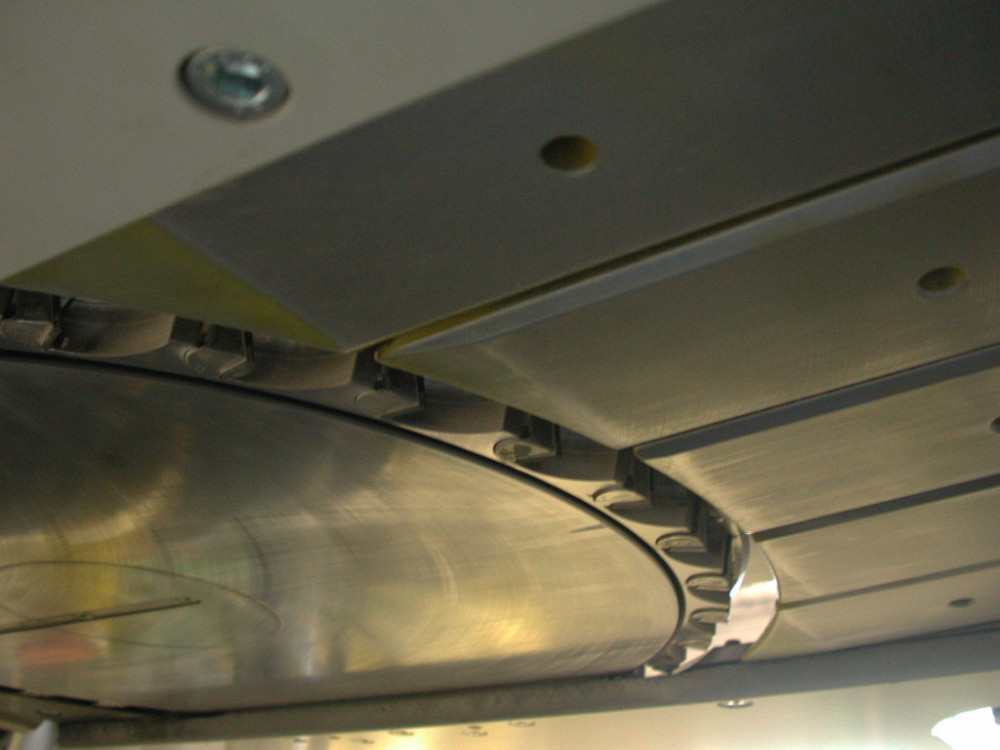

    Rotoles 400 D-S and Rotoles 600 D-S

    one side calibrating milling machines

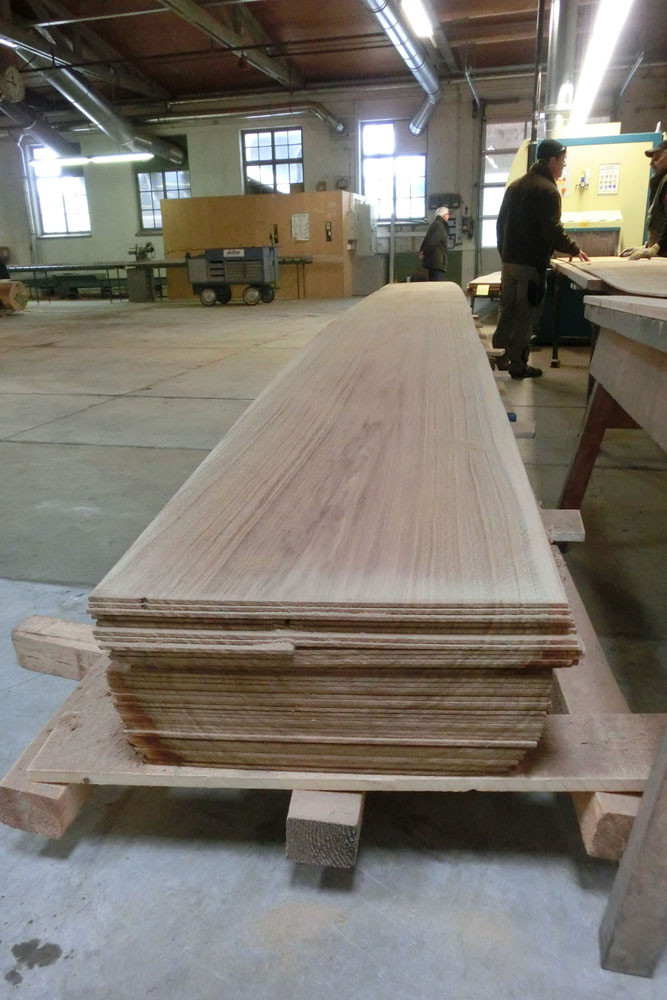

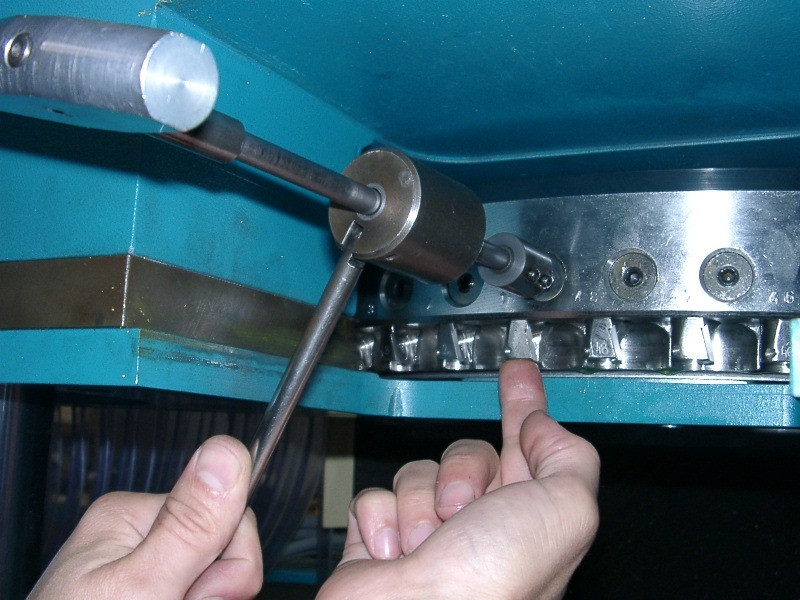

    Machines with a top rotor and feeding belt below are used for calibration of very thin workpieces, such as hardwood top layers for production of engineered flooring.

    Rotoles 400 D-S
    Rotoles 400 D-S
    Rotoles 600 D-S
    Rotoles 600 D-S

    Technical data

    Rotoles 400 D-S / Rotoles 600 D-S
    Width 400 / 600 mm
    Width
    Thickness 2 - 50 mm
    Thickness
    Rotor diameter 520 / 814 mm
    Rotor diameter
    Feeding speed 45 m/min
    Feeding speed

    Machine Models


    Video Rotoles 400 D-S

    Other Rotoles machines with belt feed

    Double side calibrating milling machines        Double side planing milling machine        Wide calibrating milling machines        all types

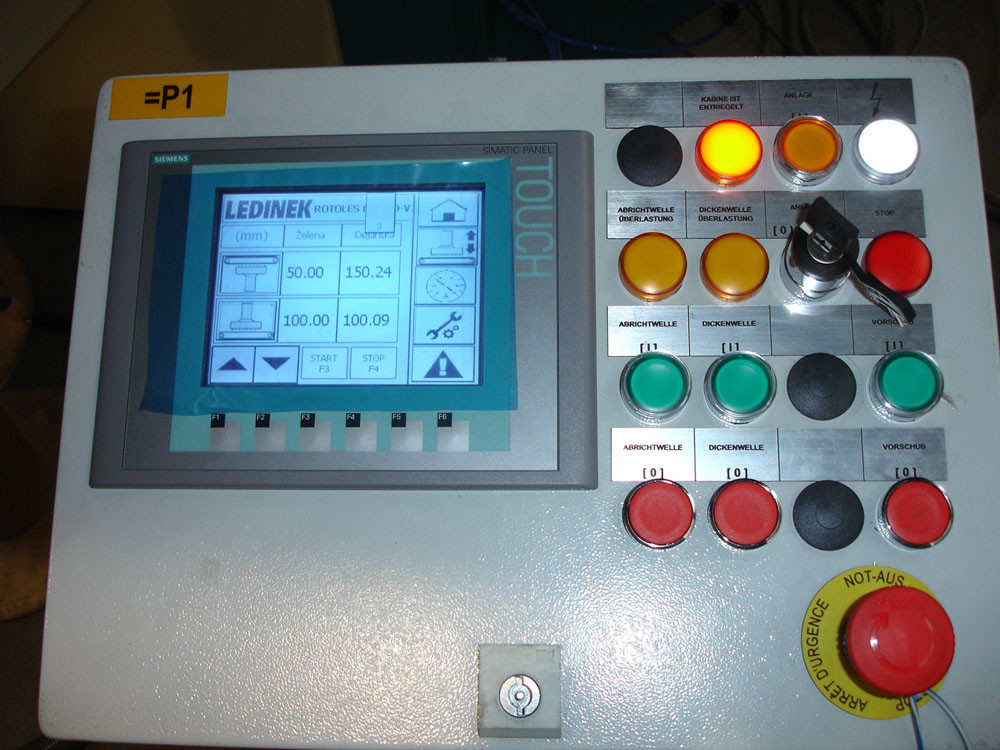

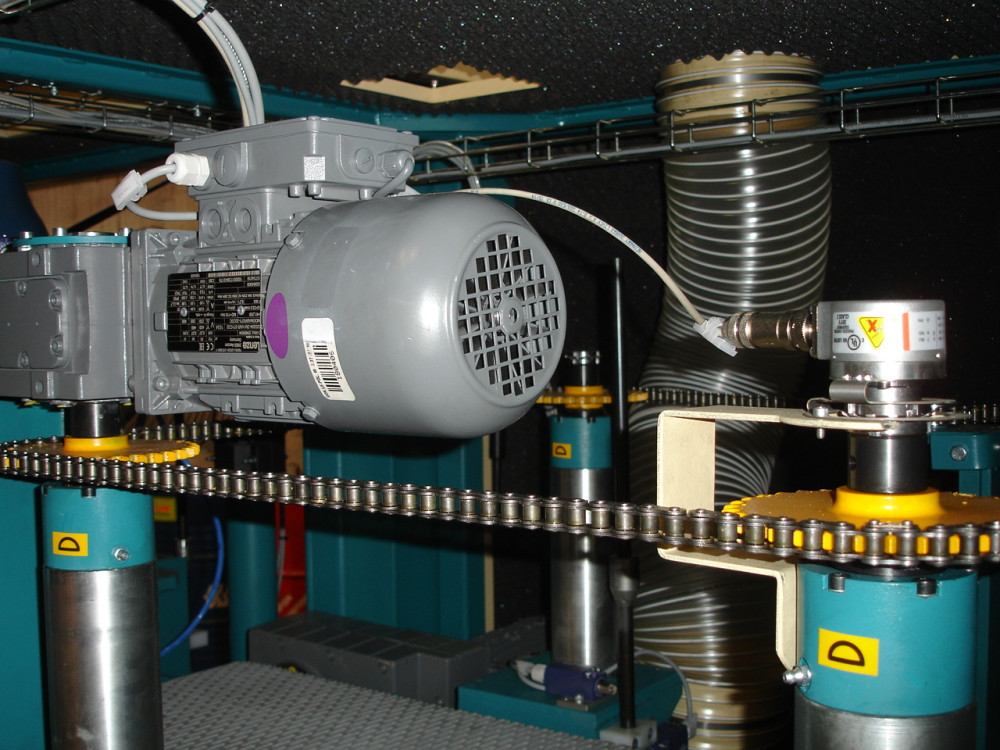

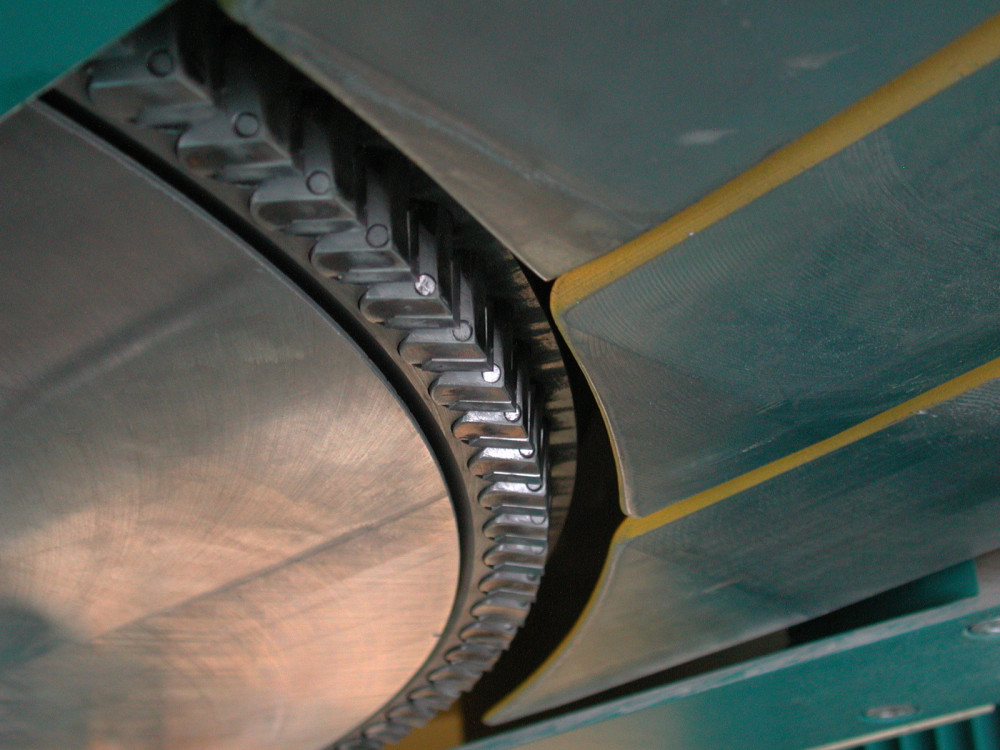

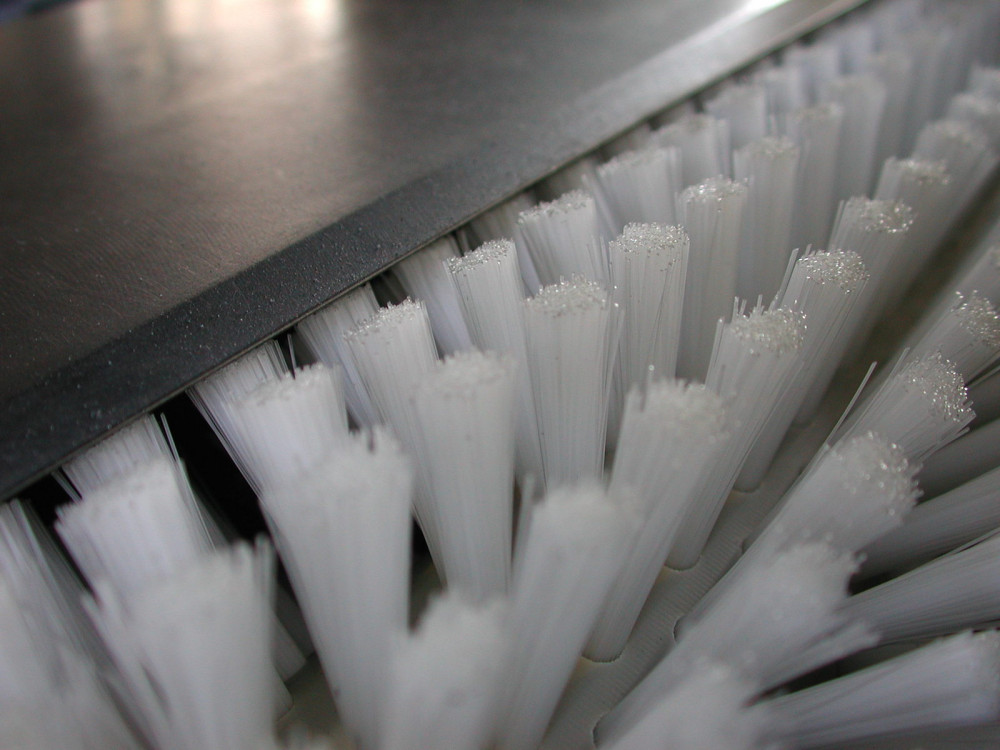

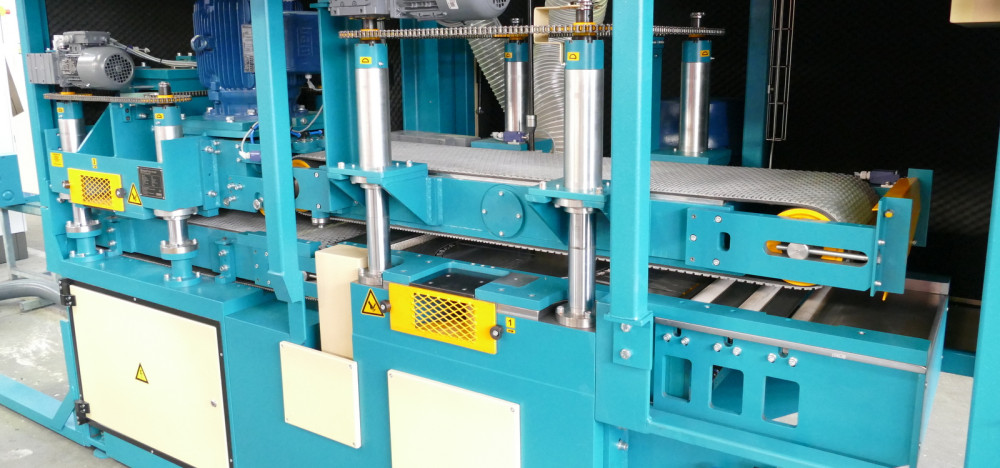

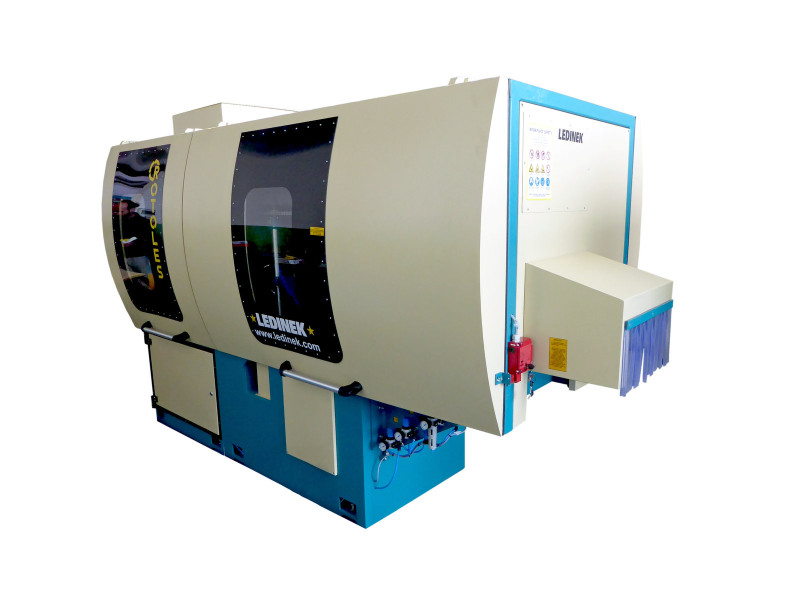

    Rotoles 400 PD-SV and Rotoles 600 PD-SV

    double side calibrating milling machines

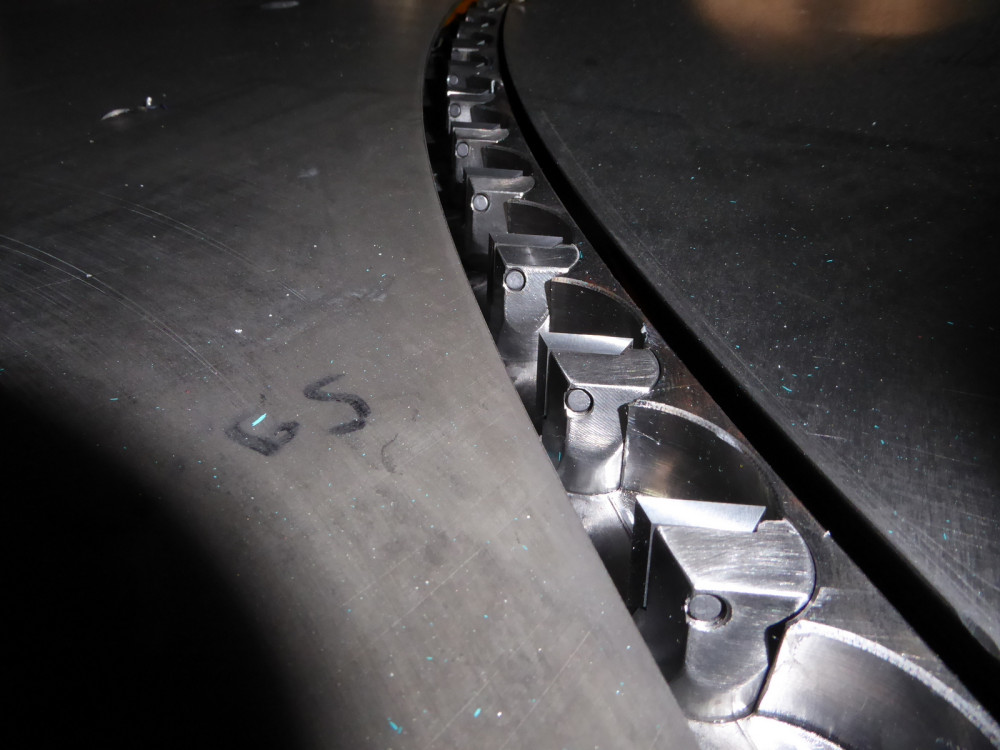

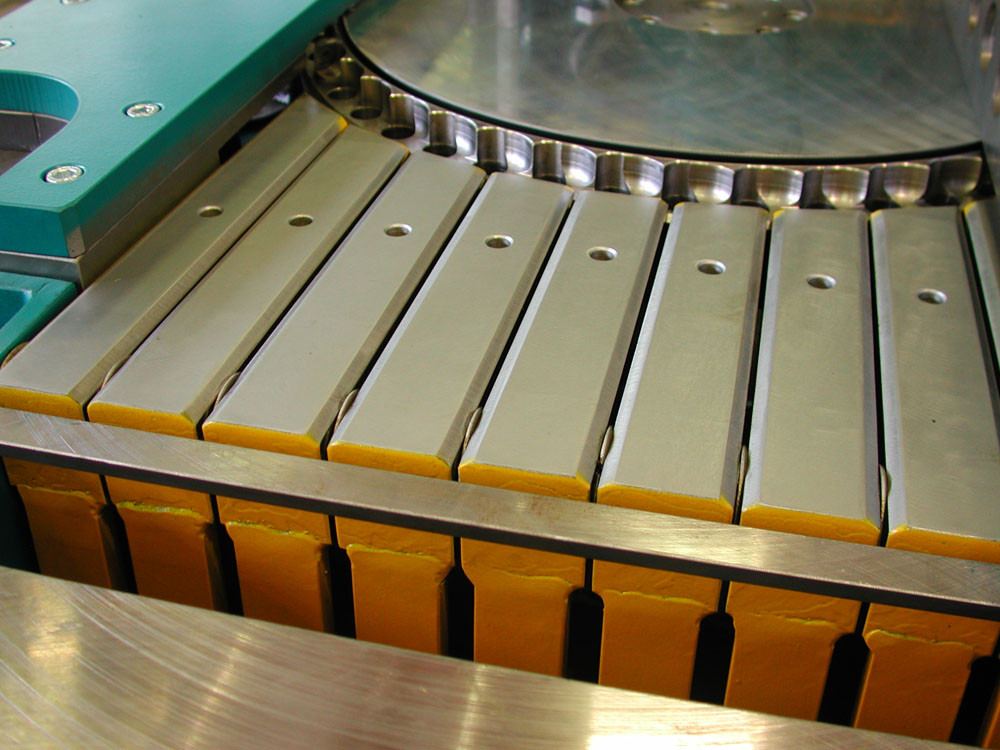

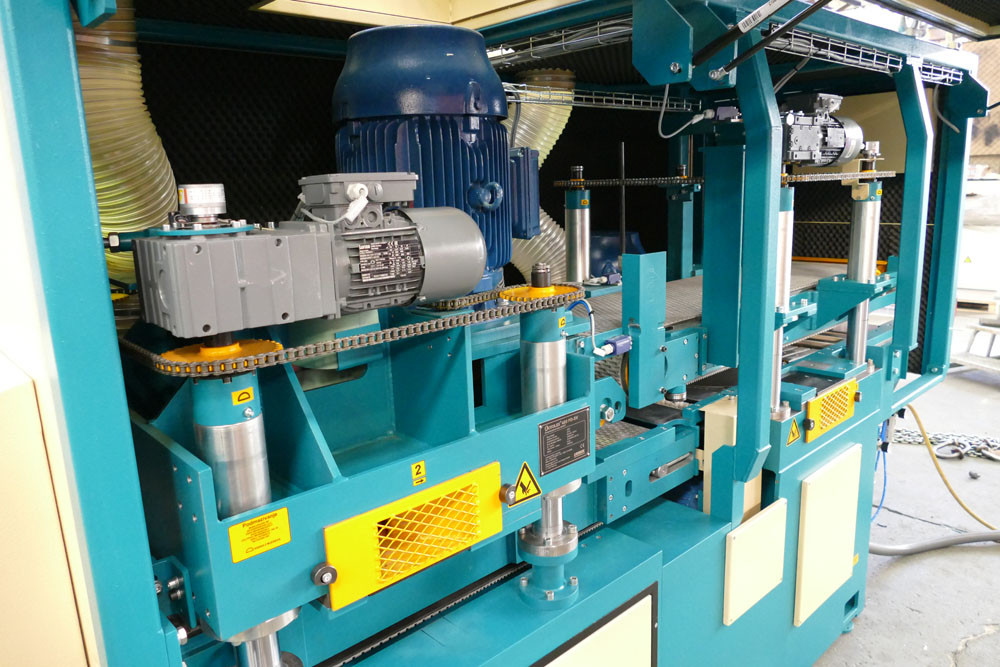

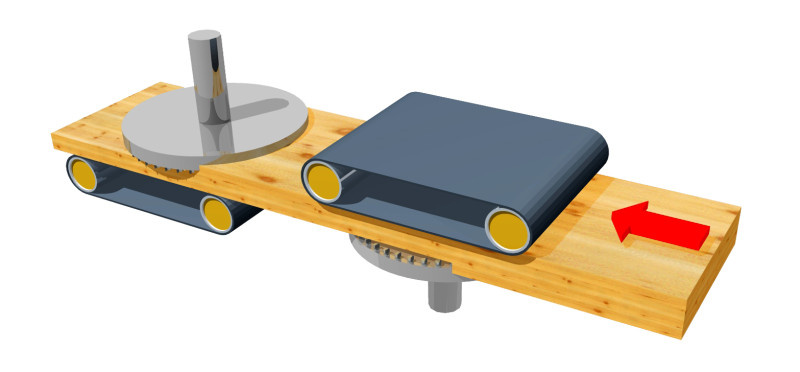

    Machines with bottom and top rotors as well as feeding belts above and below, are used for calibration of very thin workpieces, such as hardwood top layers for production of engineered flooring.

    Rotoles 400 PD-SV
    Rotoles 400 PD-SV

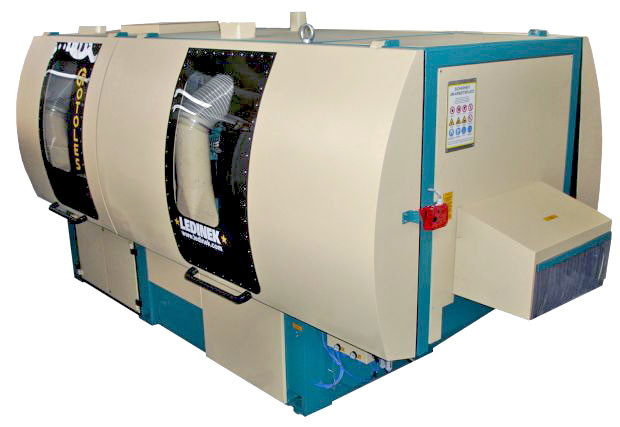

    Rotoles 600 PD-SV
    Rotoles 600 PD-SV

    Technical data

    Rotoles 400 PD-SV / Rotoles 600 PD-SV
    Width 400 / 600 mm
    Width
    Thickness 3 - 30 mm
    Thickness
    Rotor diameter 520 / 814 mm
    Rotor diameter
    Feeding speed 45 m/min
    Feeding speed

    Machine Models

    Video Rotoles 400 PD-SV

    Other Rotoles machines with belt feed

    One side calibrating milling machines        Double side planing milling machine        Wide calibrating milling machines        all types

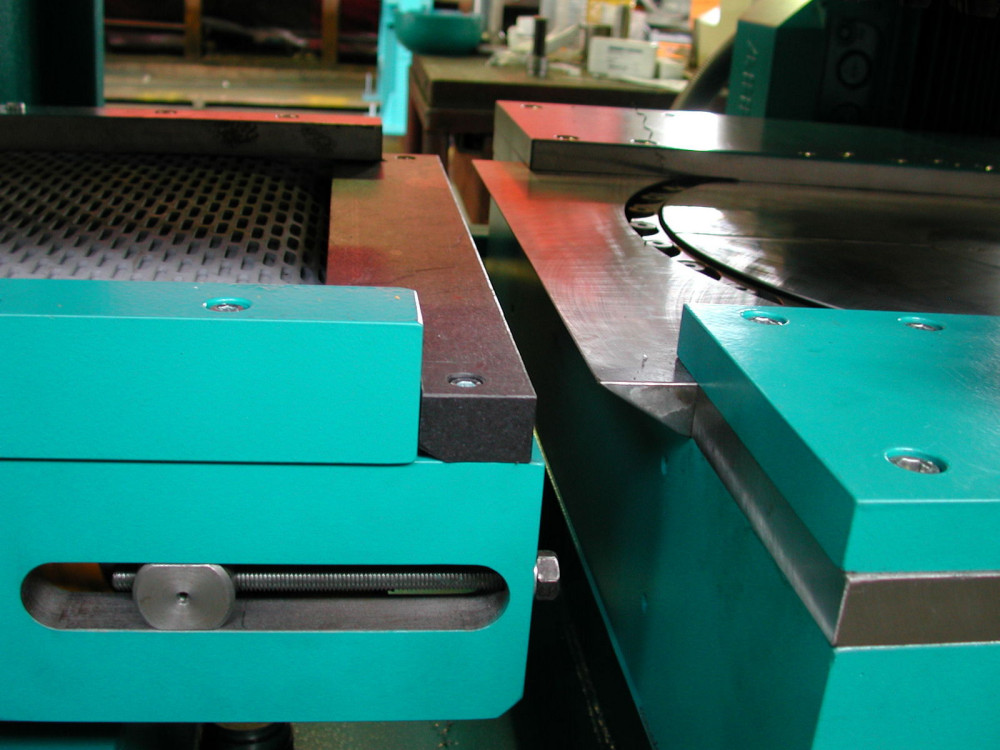

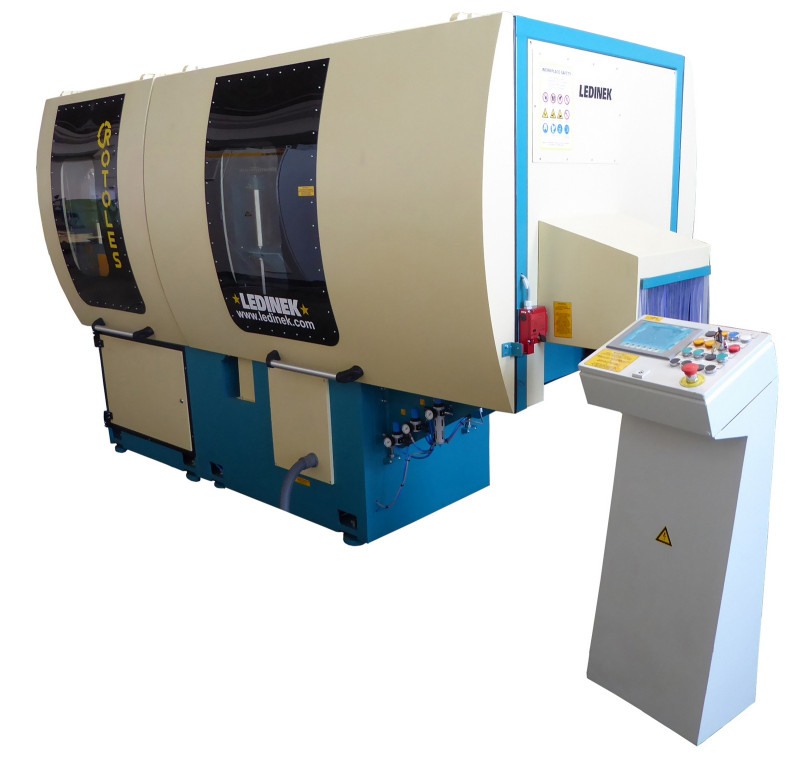

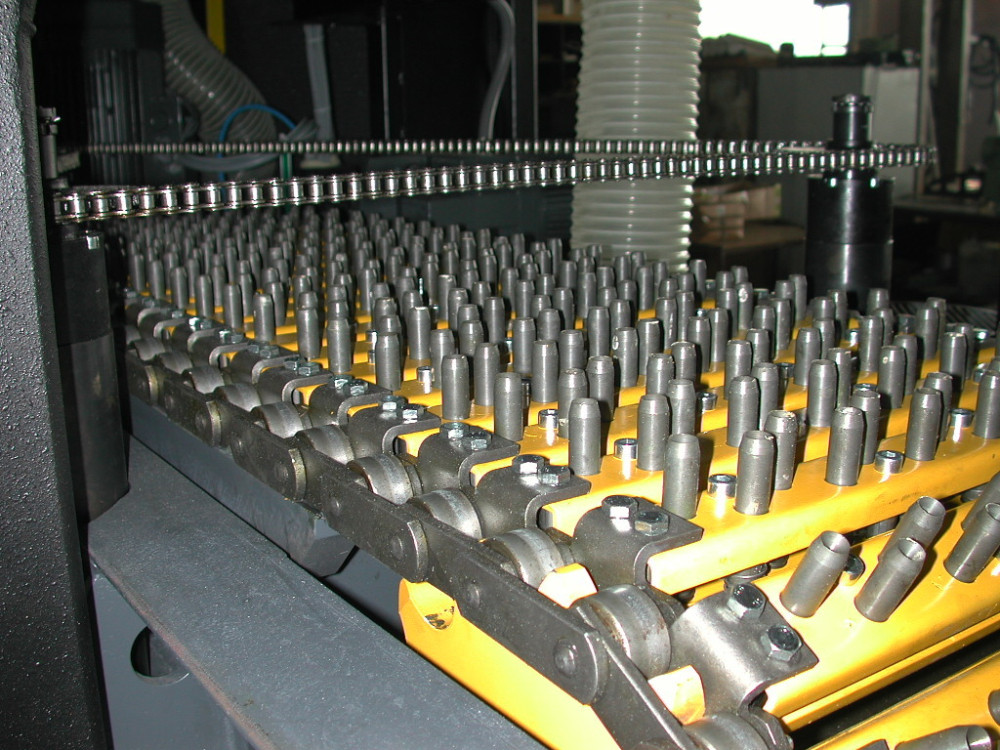

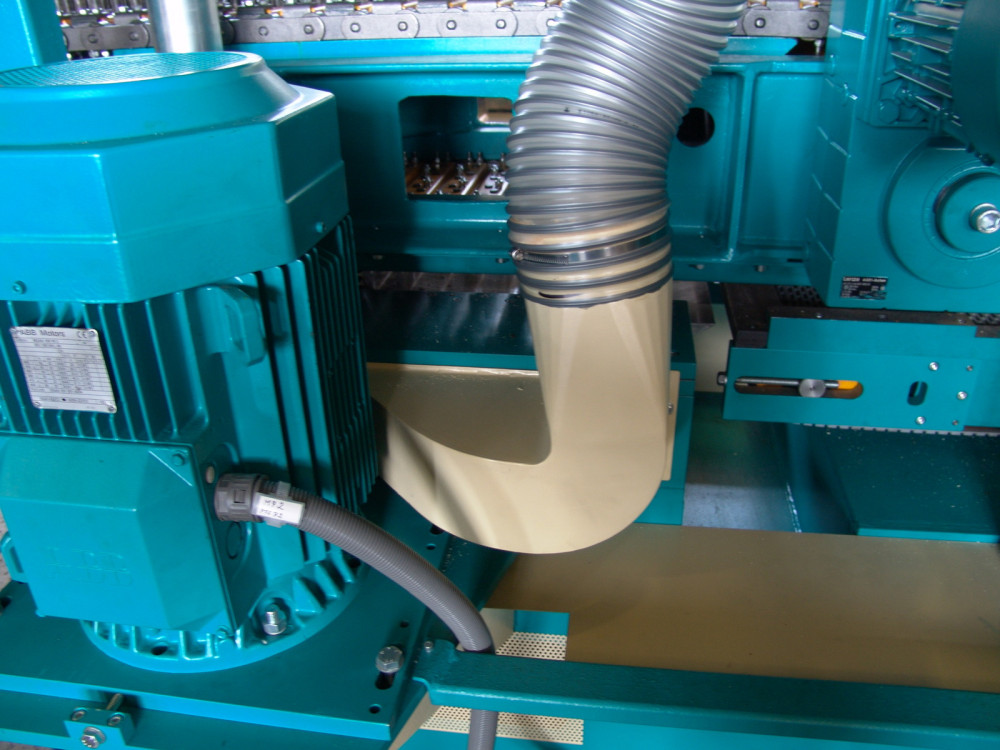

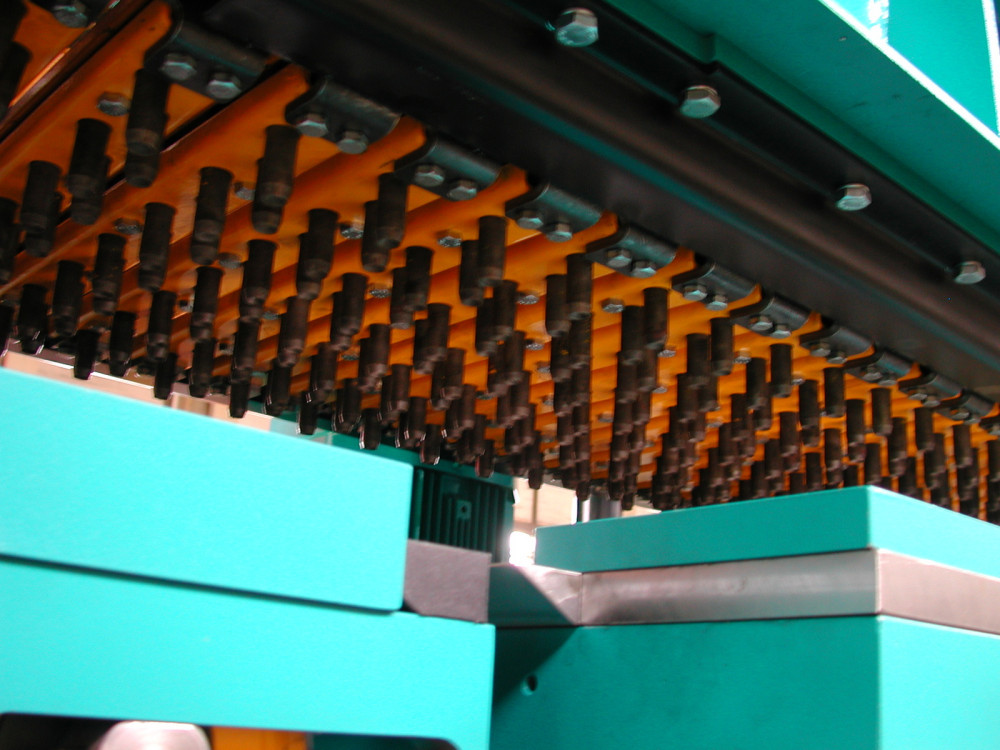

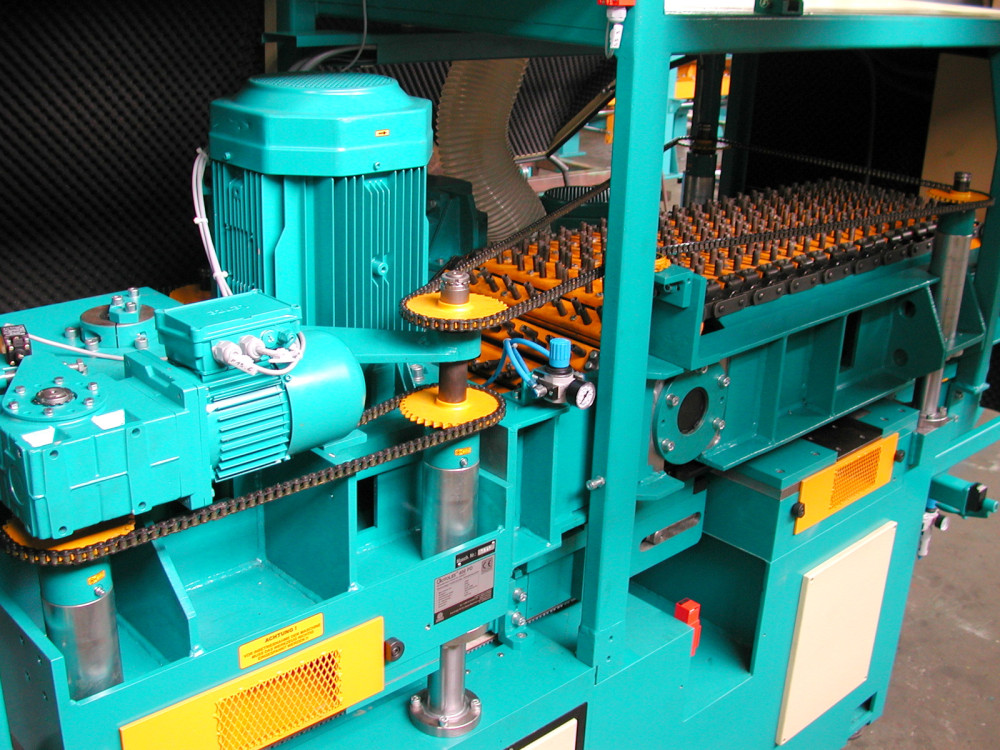

    Rotoles 400 PD-S

    double side planing milling machine

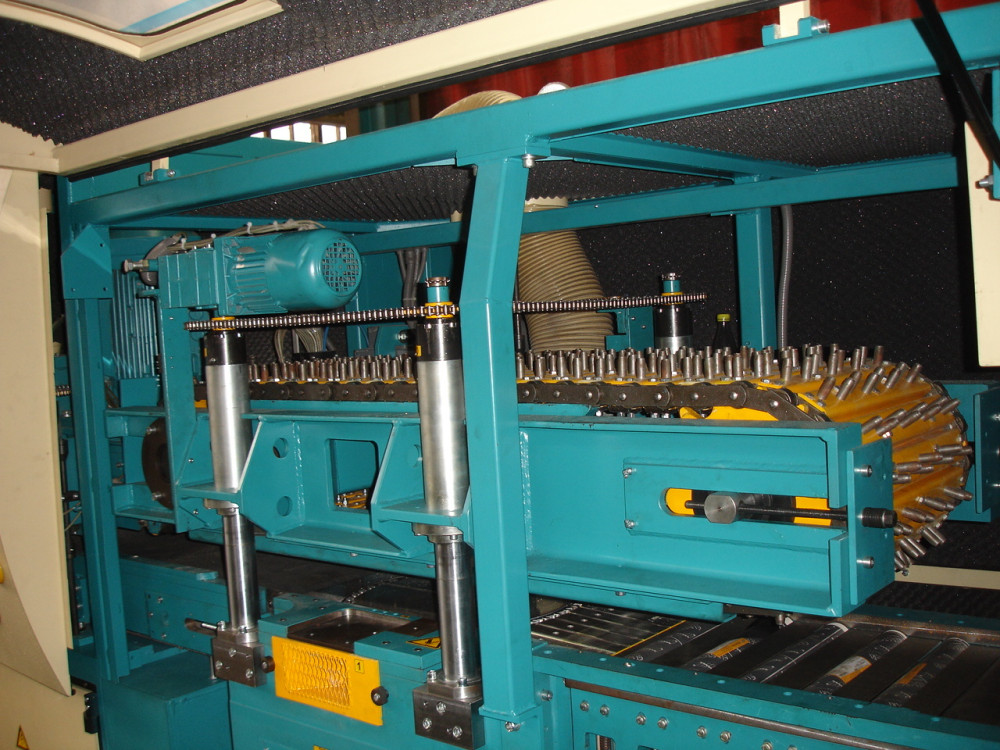

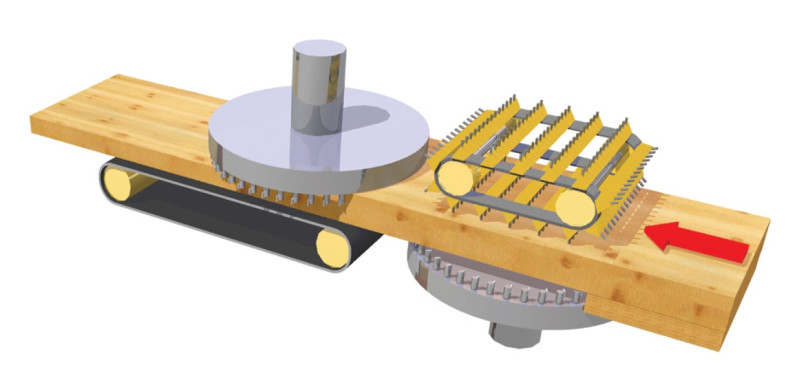

    Machine with bottom and top rotor as well as feeding chain above and feeding belt below, is used for planing of boards of various widths.



    Technical data

    Rotoles 400 PD-S
    Width 400 mm
    Width
    Thickness 6 - 150 mm
    Thickness
    Rotor diameter 520 / 814 mm
    Rotor diameter
    Feeding speed 45 m/min
    Feeding speed

    Machine Models

    Other Rotoles machines with belt feed

    One side calibrating milling machines        Double side calibrating milling machines        Wide calibrating milling machines        all types

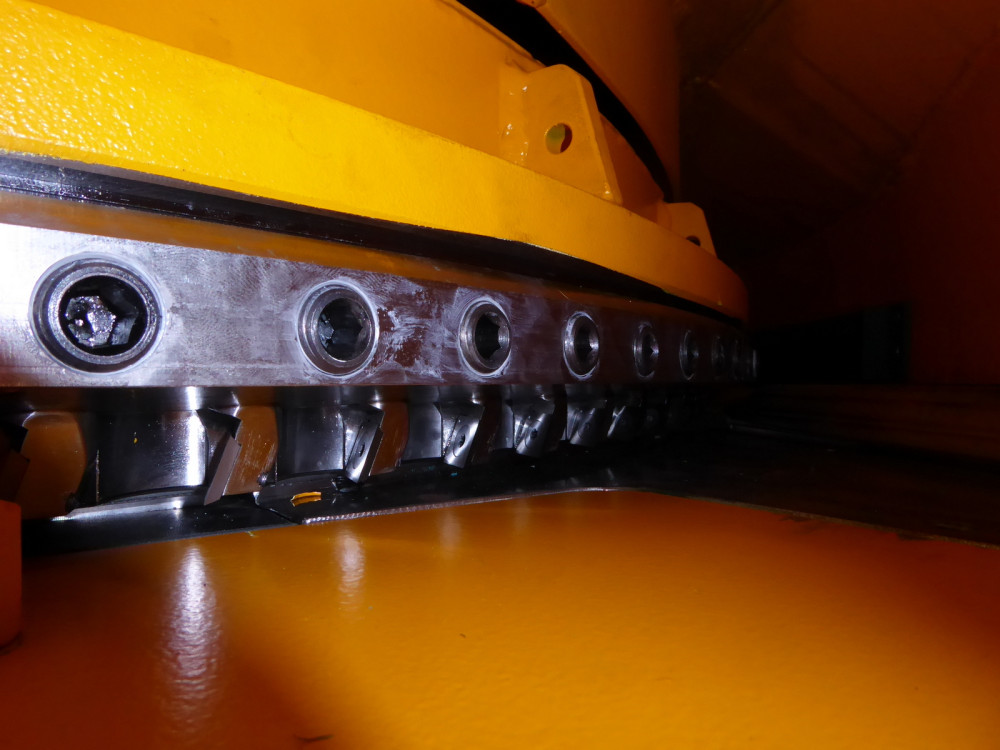

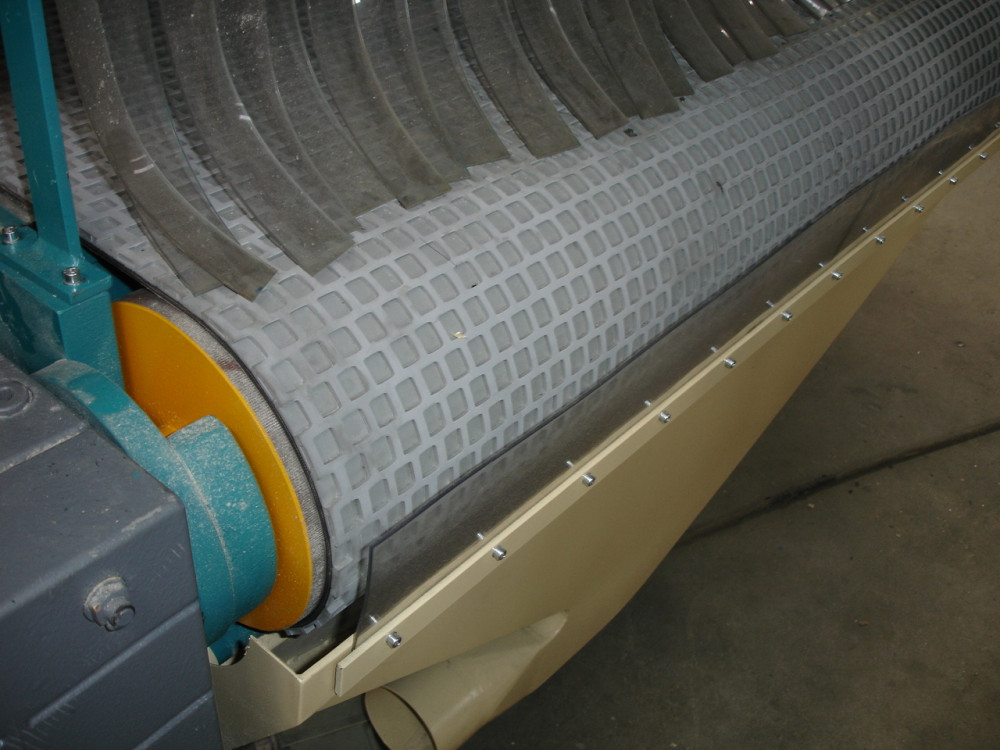

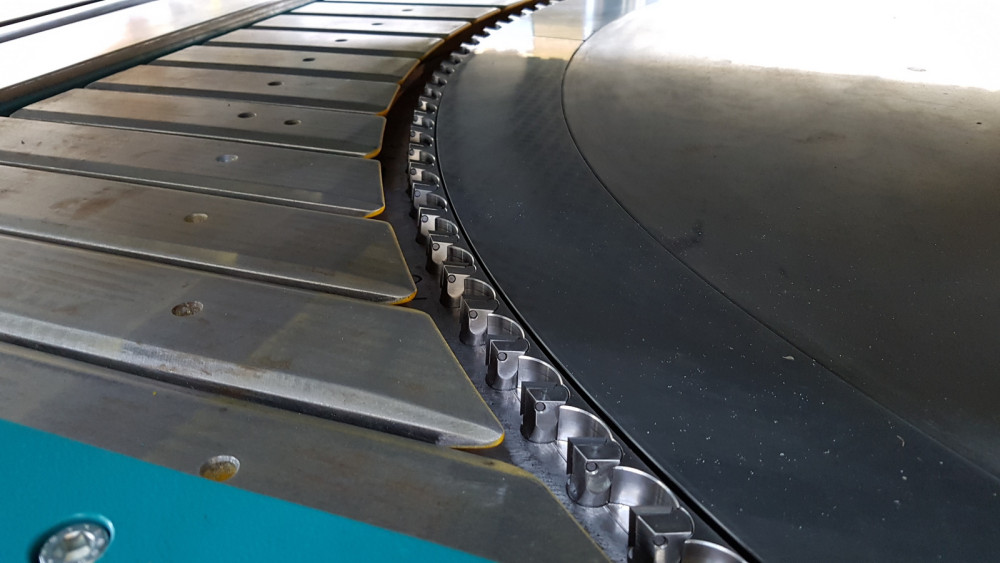

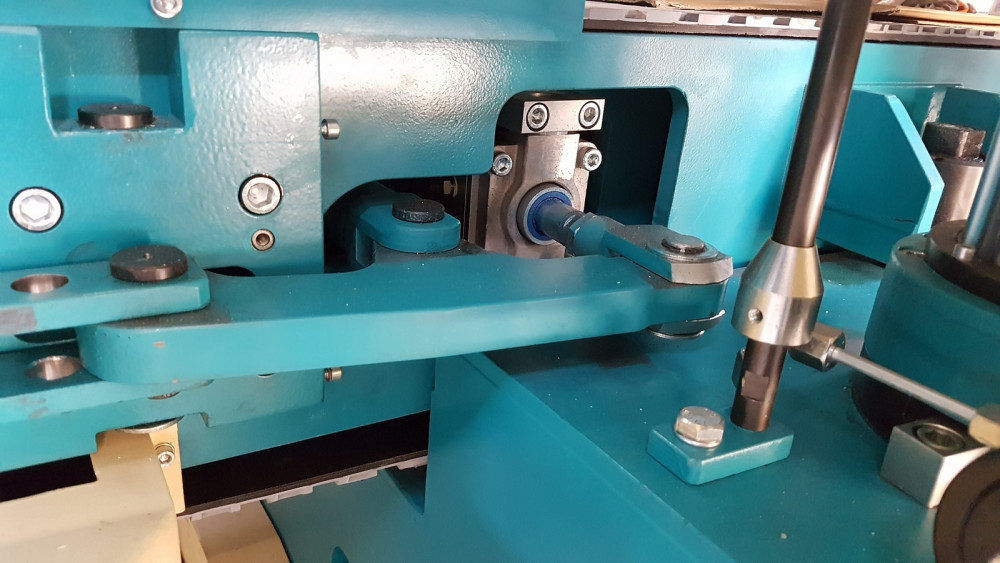

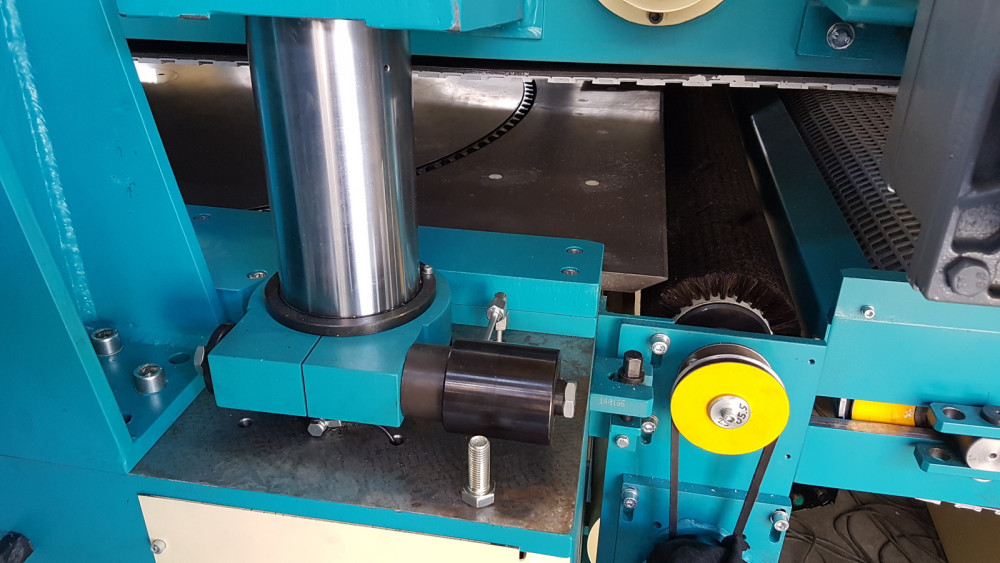

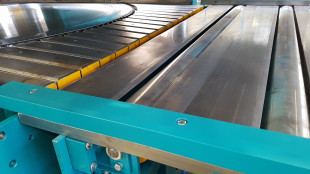

    Rotoles 1300 D and Rotoles 1300 PD-V

    wide calibrating milling machines

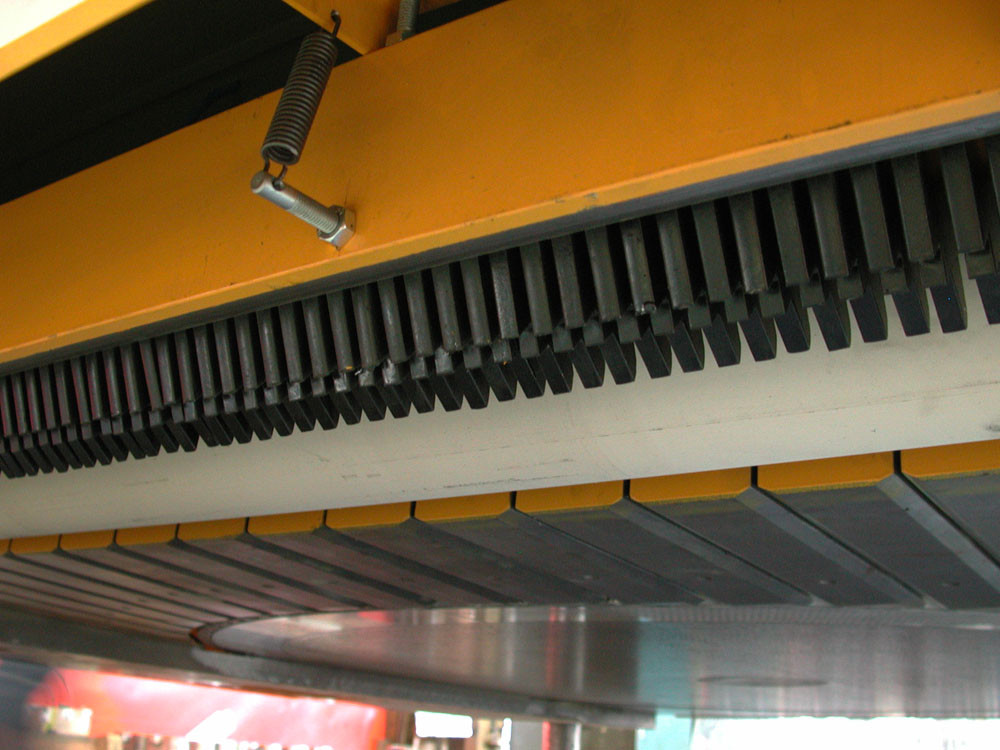

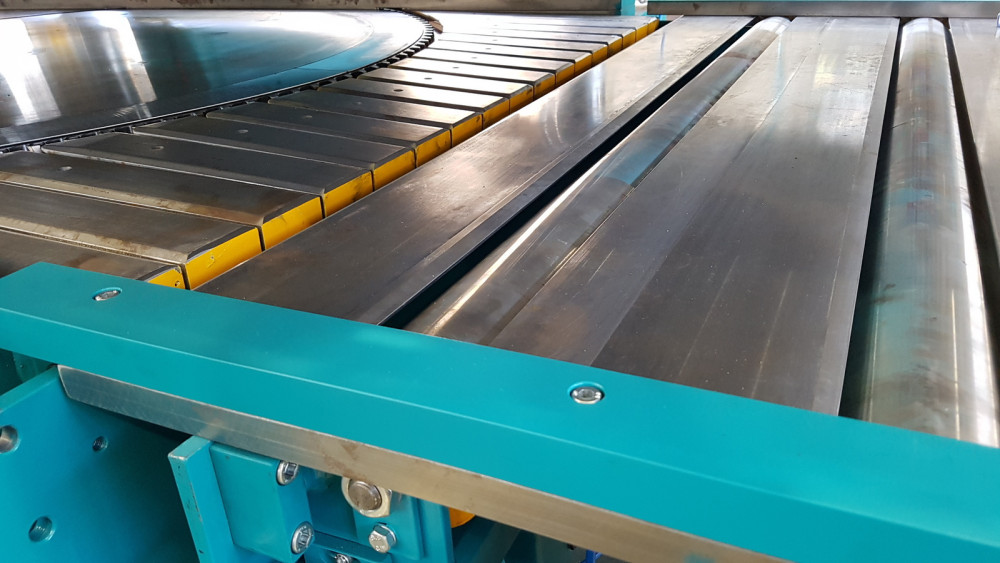

    Machine with top rotor and bottom feeding belt and machine with bottom and top rotor as well as top and bottom feeding belts are used for calibration of wide glued panels or other different engineered products.

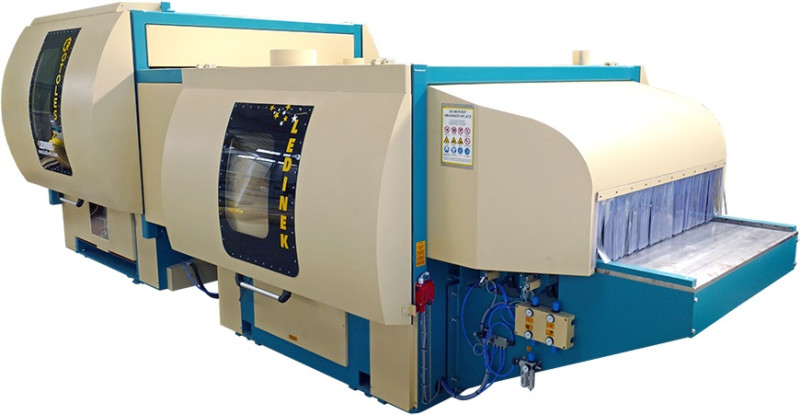

    Rotoles 1300 PD-V
    Rotoles 1300 PD-V

    Technical data

    Rotoles 1300 D
    Width 1.300 mm
    Width
    Thickness 5 - 150 mm
    Thickness
    Rotor diameter 1.650 mm
    Rotor diameter
    Feeding speed 36 m/min
    Feeding speed

    Machine Models

    Other Rotoles machines with belt feed

    One side calibrating milling machines        Double side calibrating milling machines        Double side planing milling machine        all types
