Perfect setup

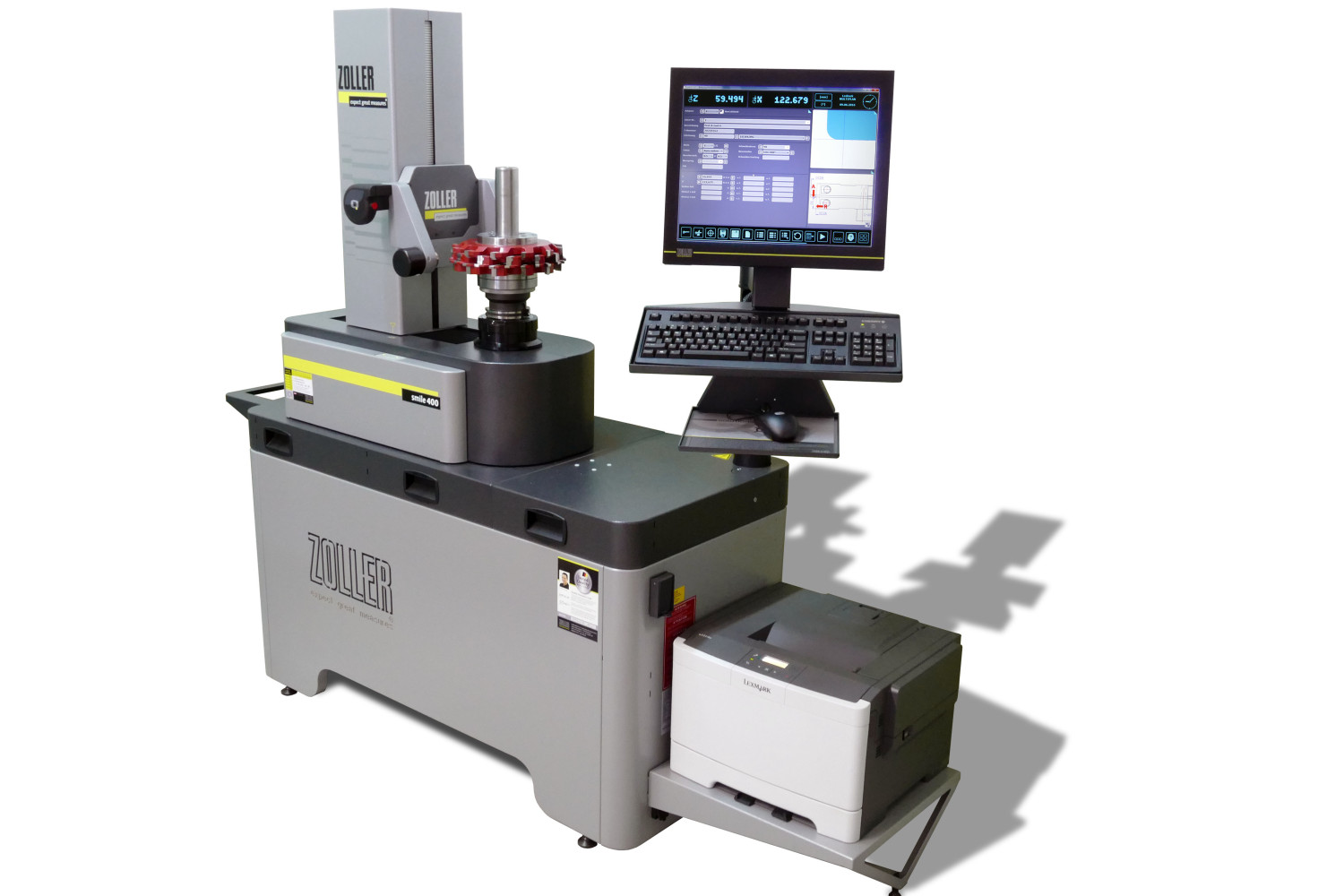

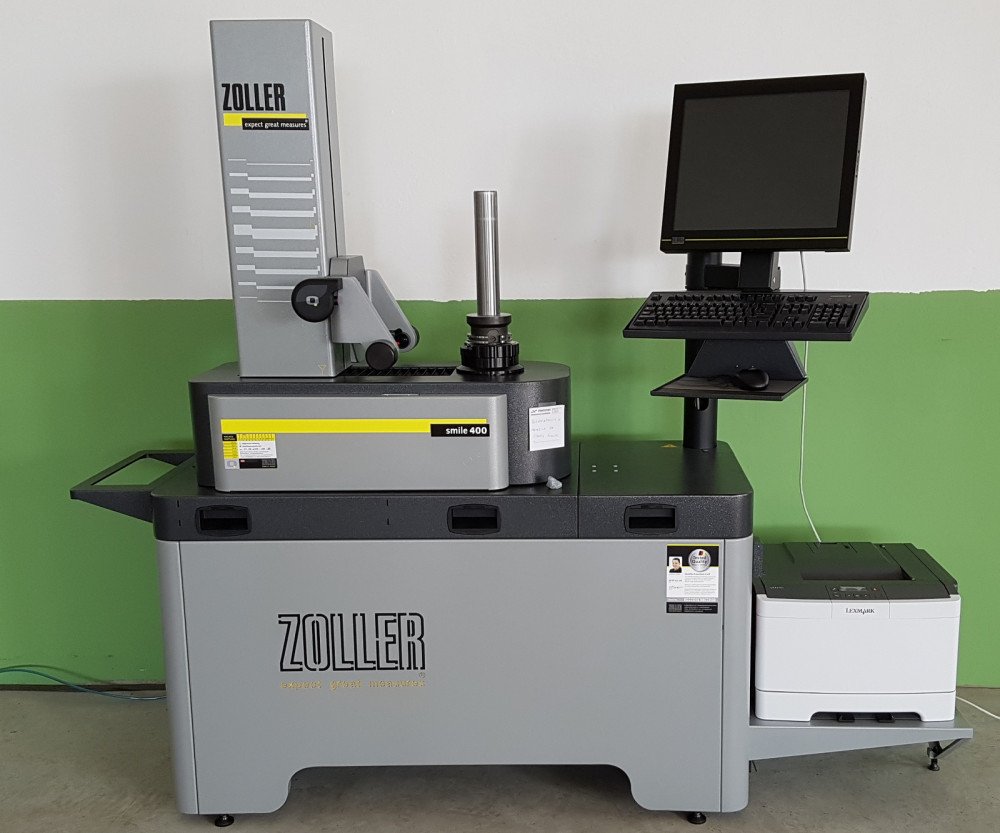

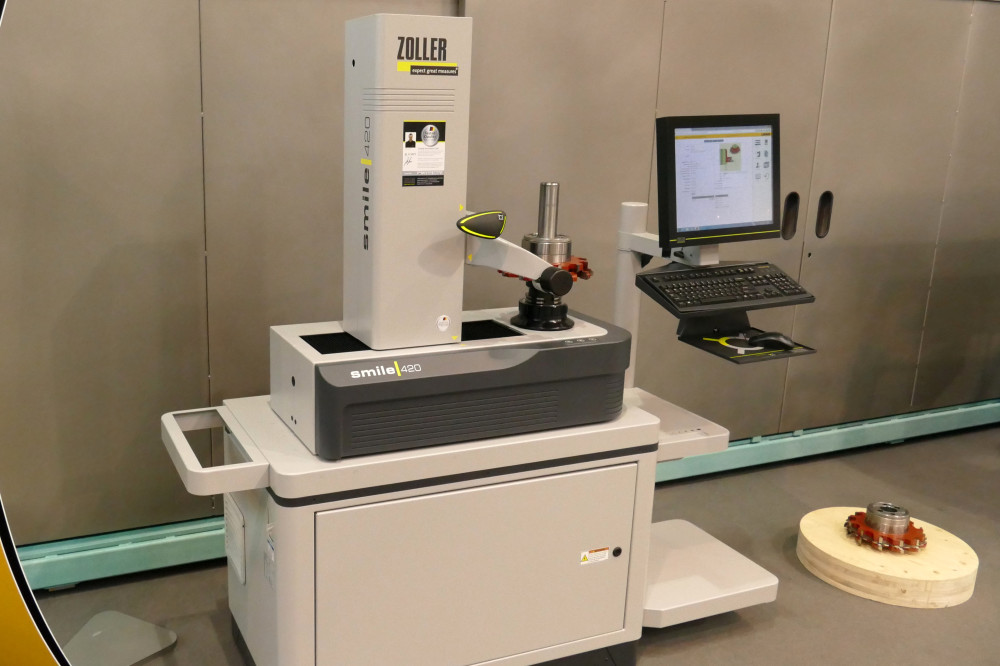

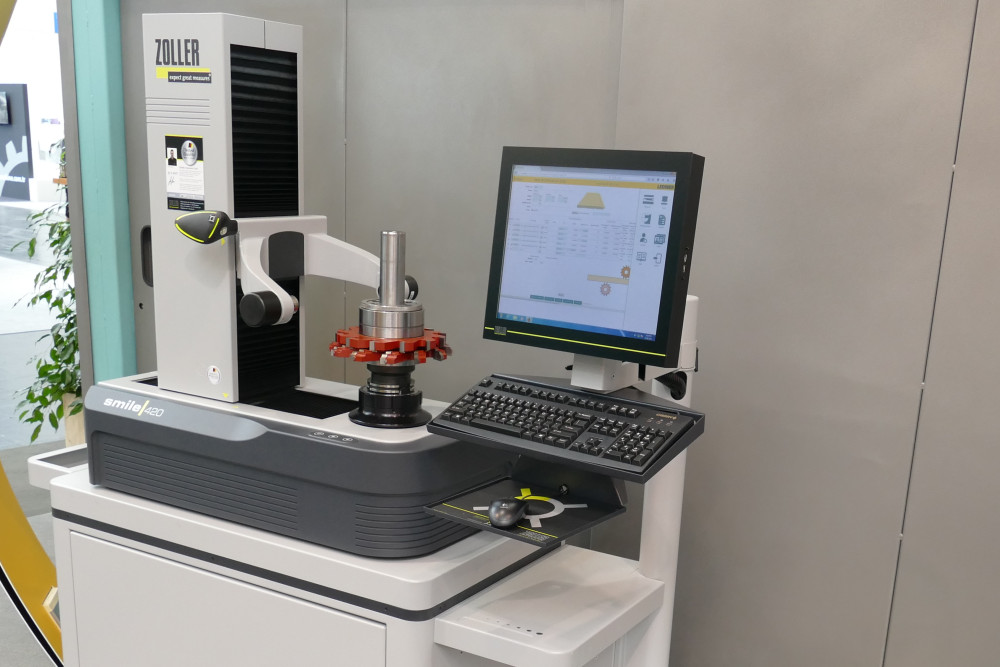

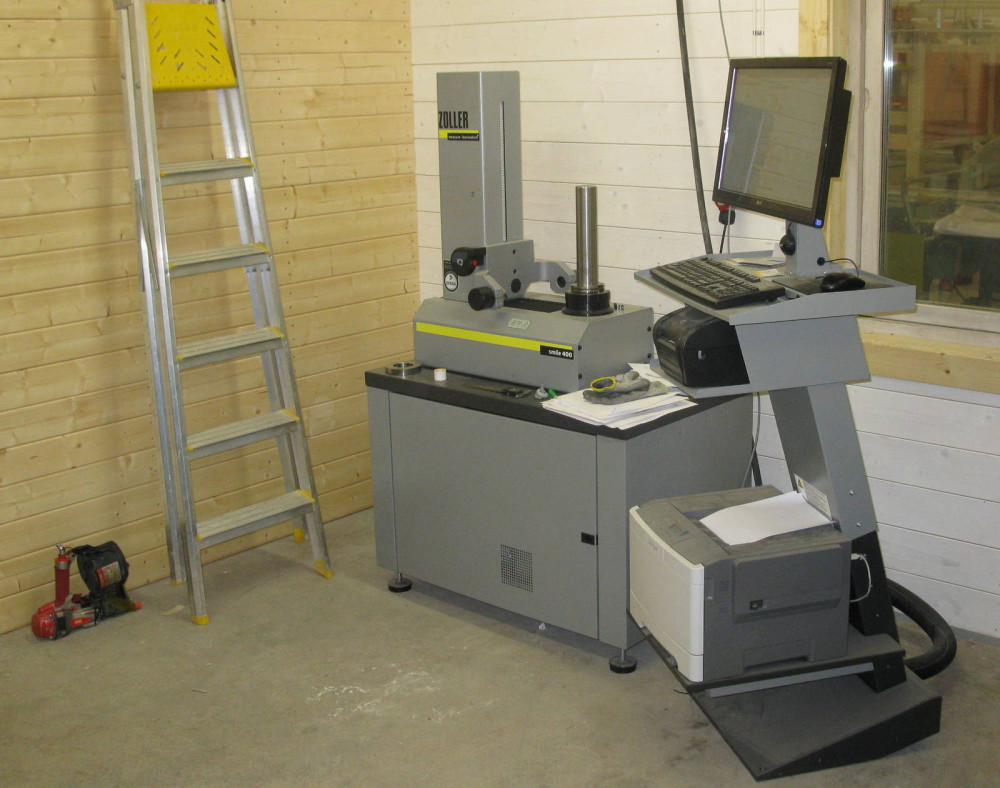

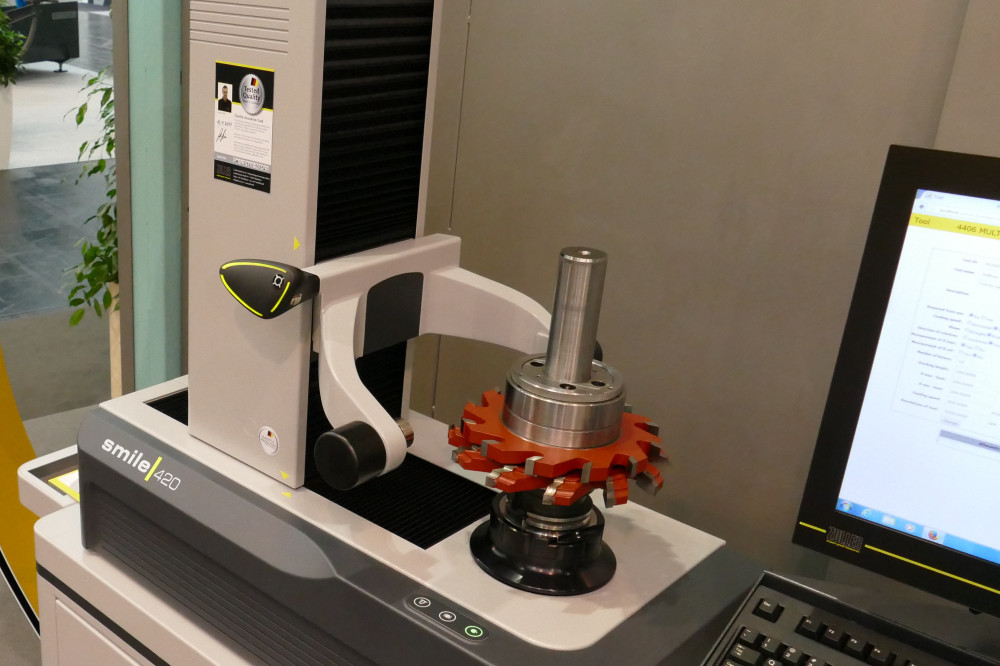

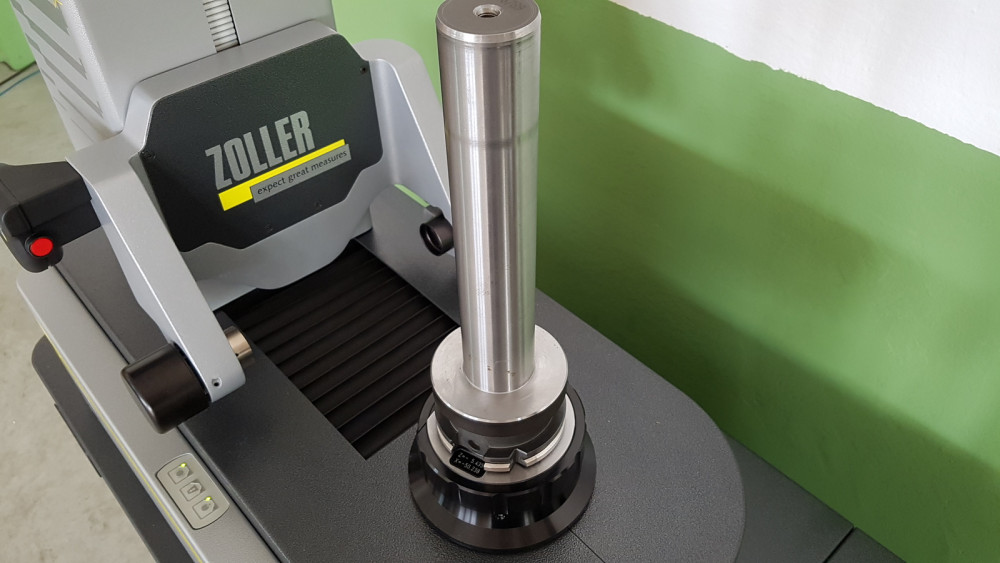

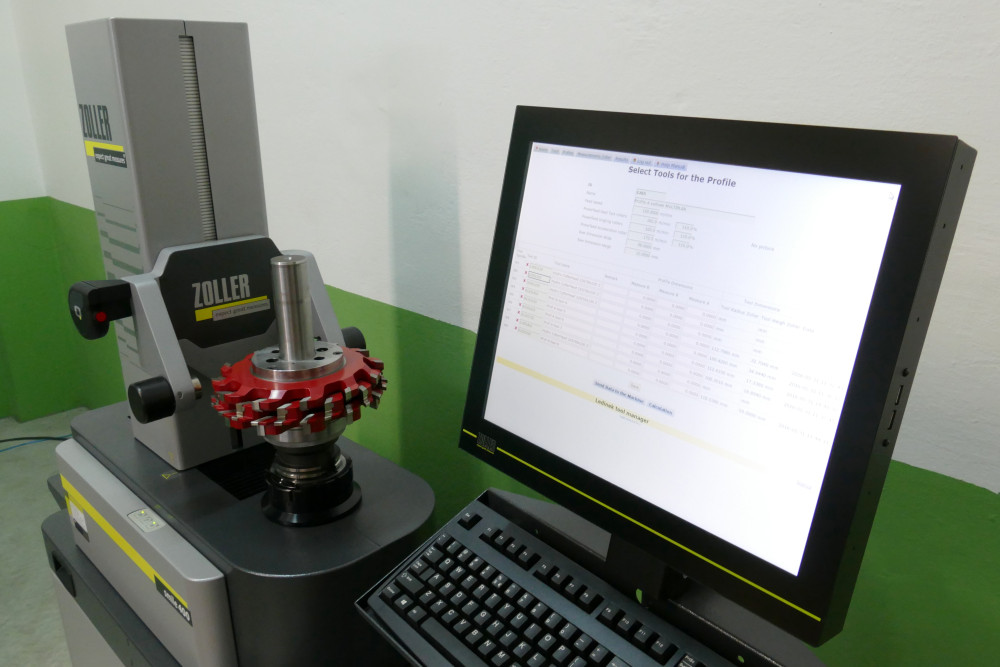

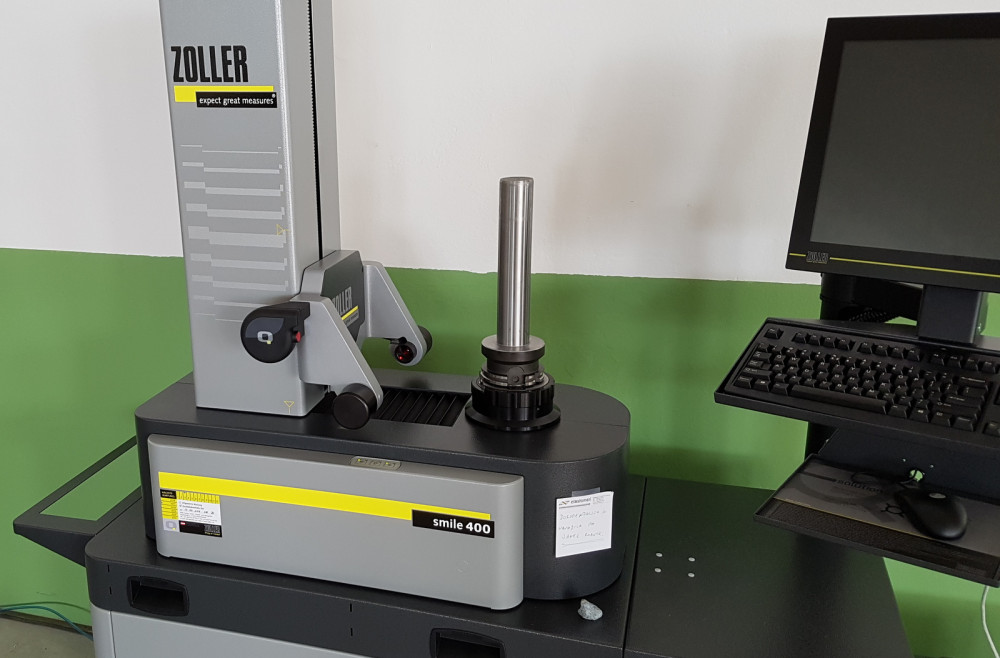

Zoller tool pre-setter

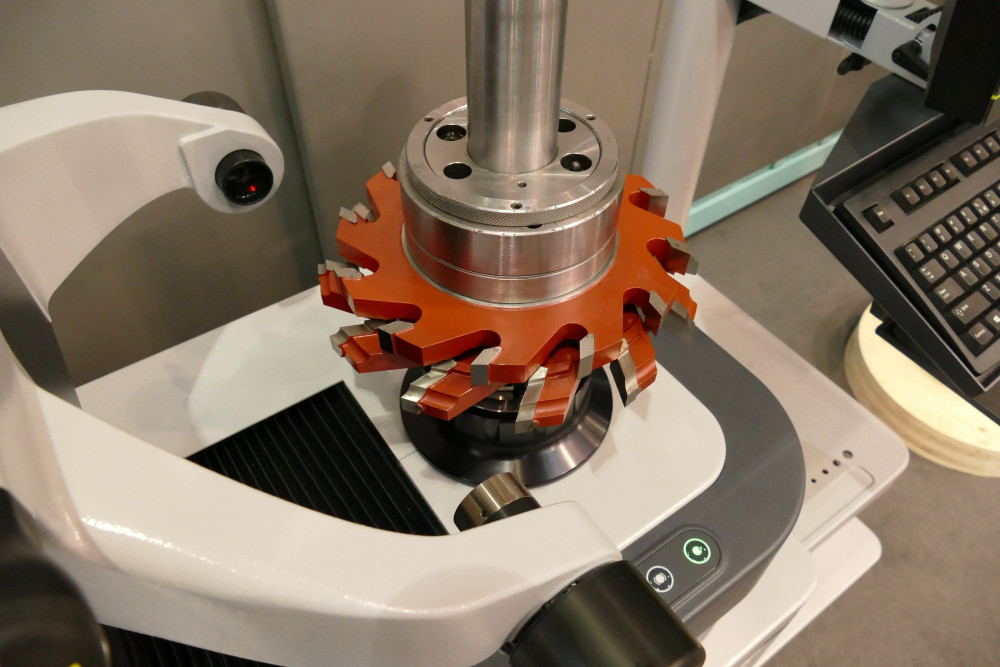

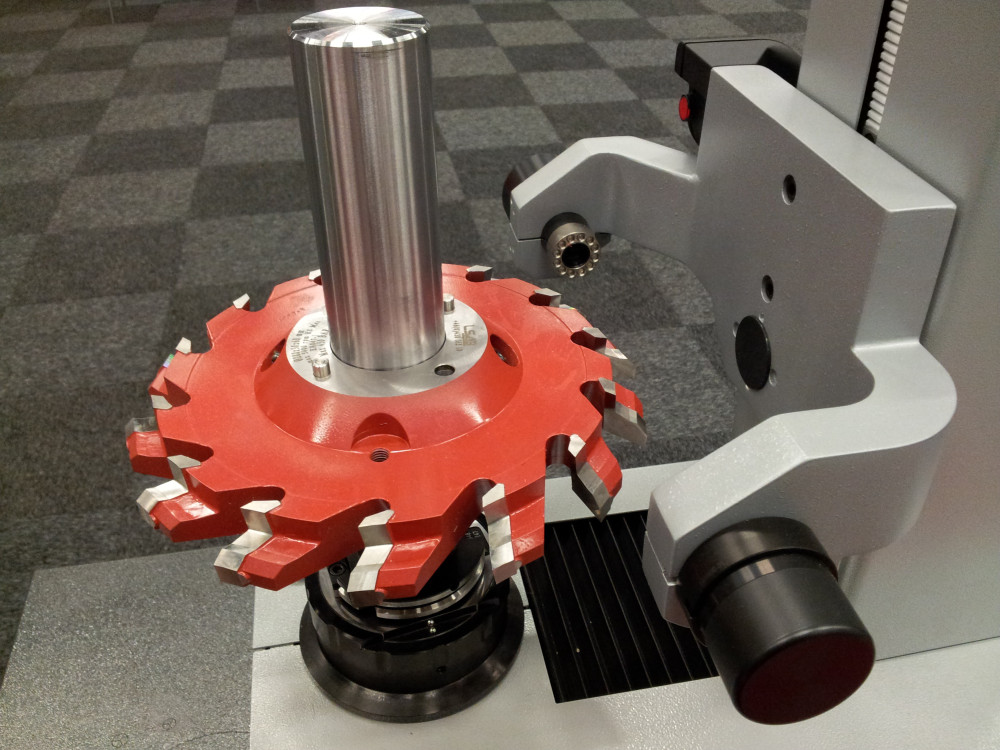

High Precision Spindle ISO 50

Concentricity 0.002 mm (0.000079"), spindle brake, 4 x 90° spindle stop

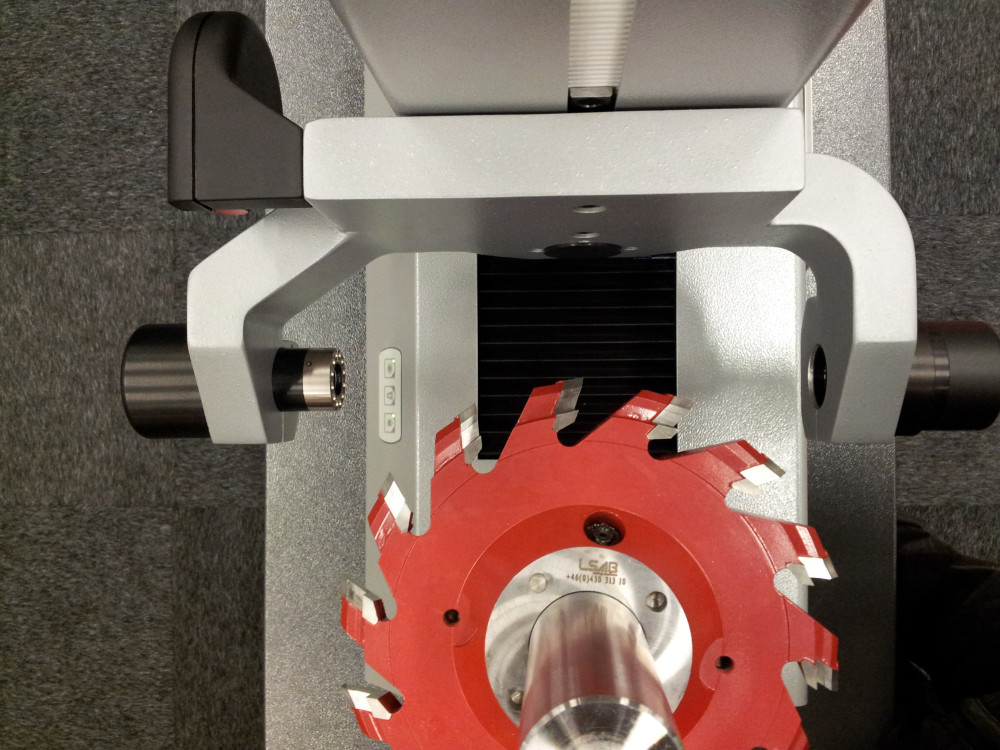

Autofocus CNC drive in C-Axis

for user- independent focusing of the cutting edge and automatic measuring of multi-insert tools



Tool length Z: max. 400 mm
Tool diameter D:
max. 420 mm
Tool weight: max. 50 kg

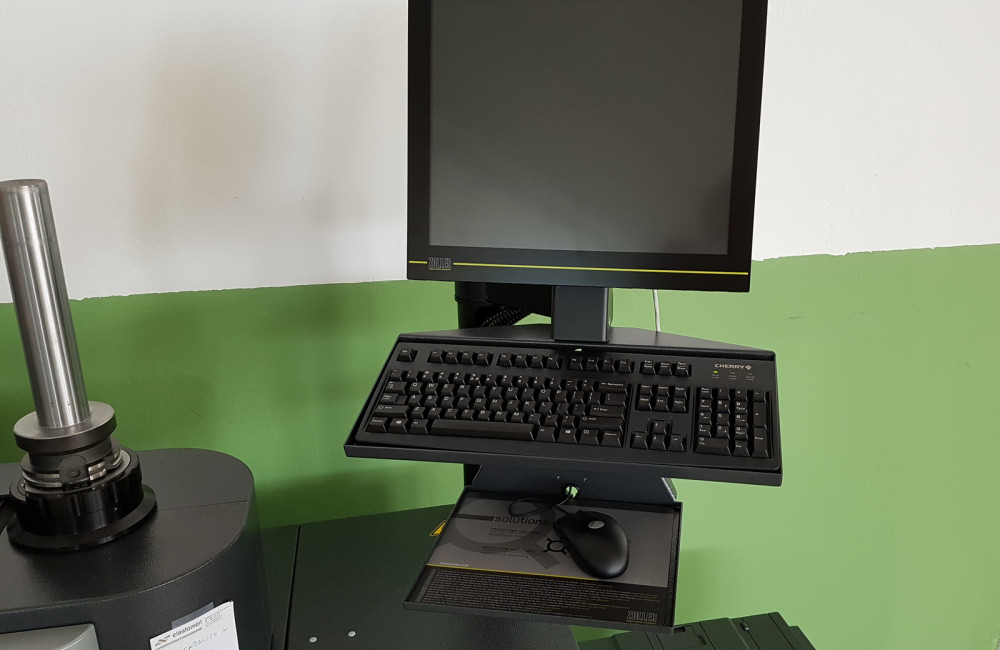

    • Industrial computer with operating system Windows 64-bit.

    • Keyboard English / USA

    • Tray for keyboard and mouse/pad

    • Language Dialog English / German

    • User Manual German

    • Adapter Board

    • Laser Printer Board

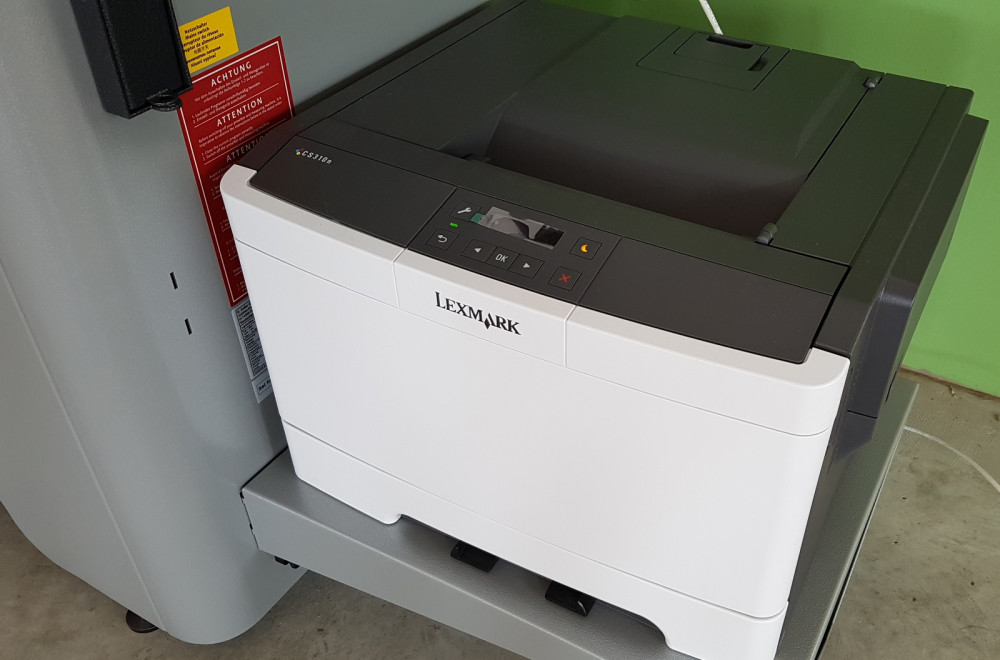

    • Color laser printer for lists and graphics

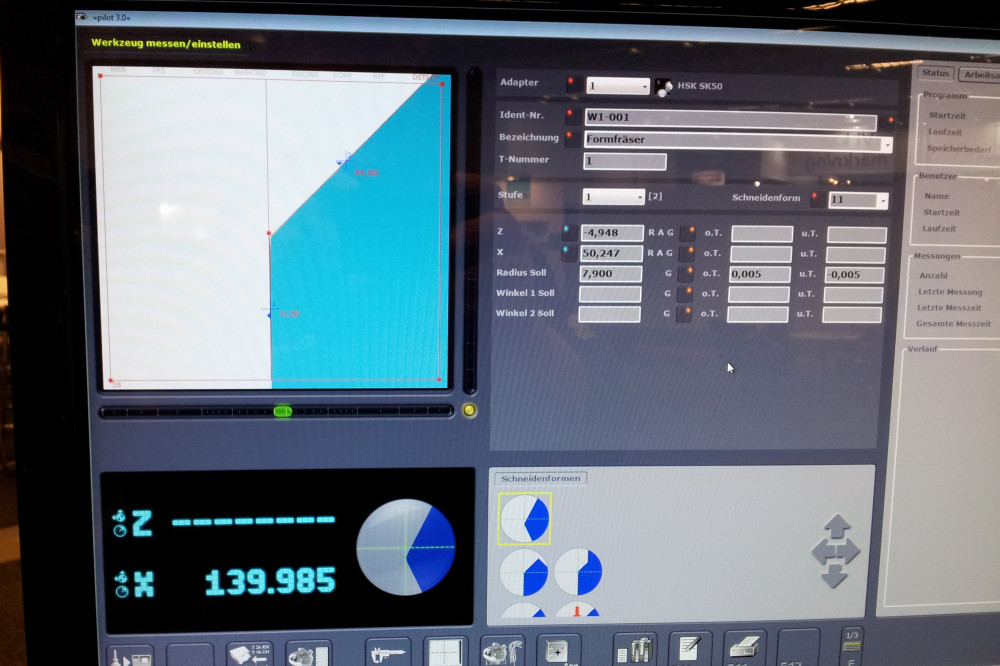

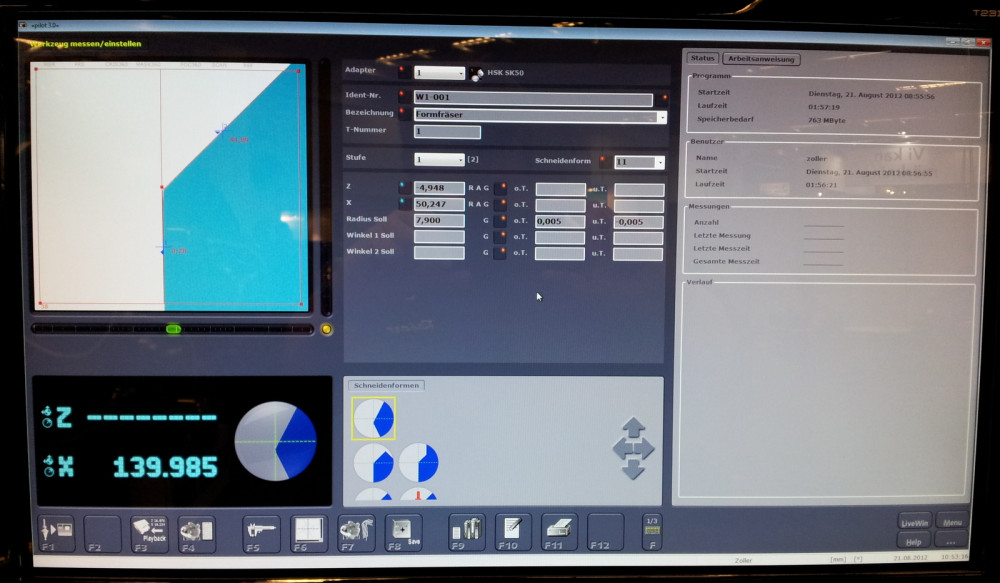

    • Unit Default functions »pilot 2 mT« modern user control interface included.

    • Unit Measuring program package »pilot 2 mT«
