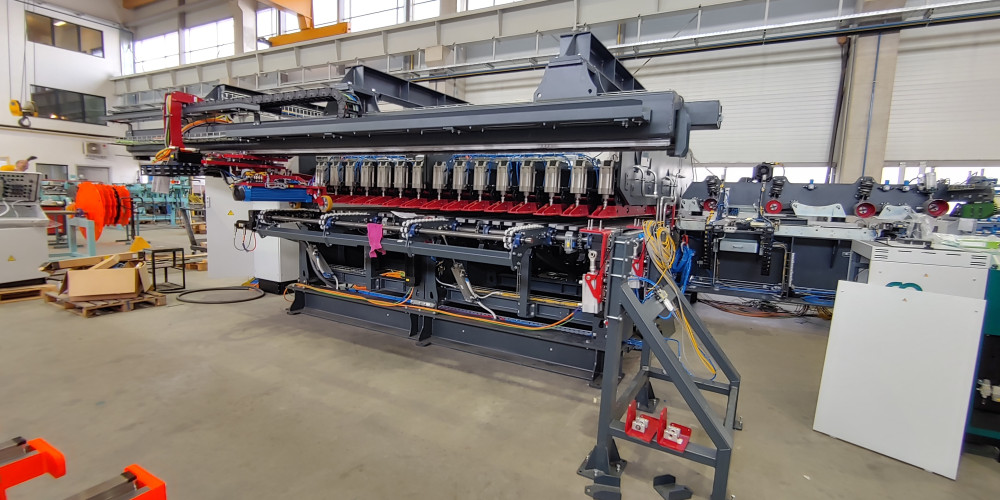

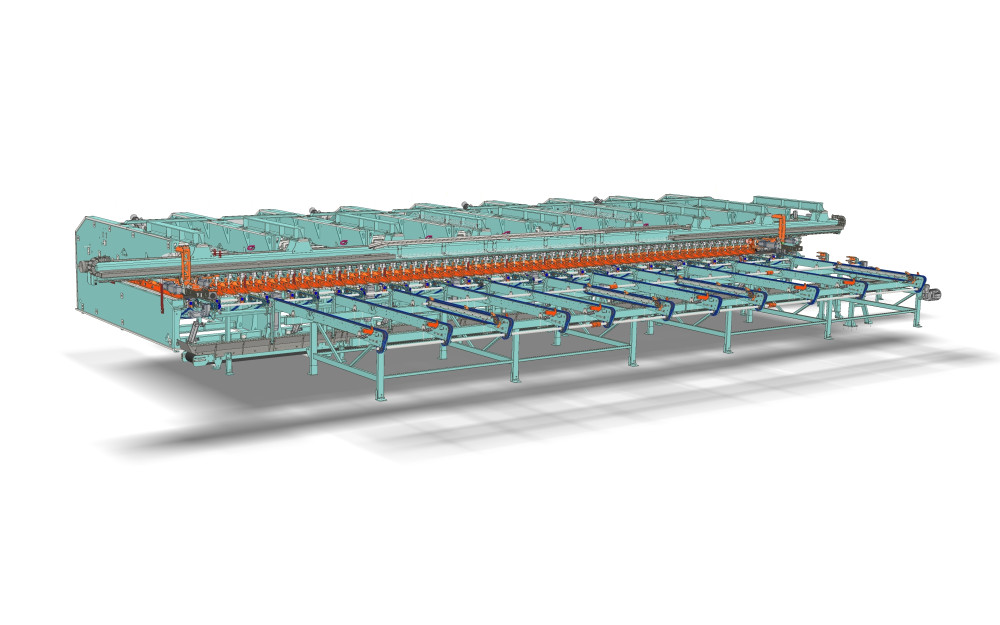

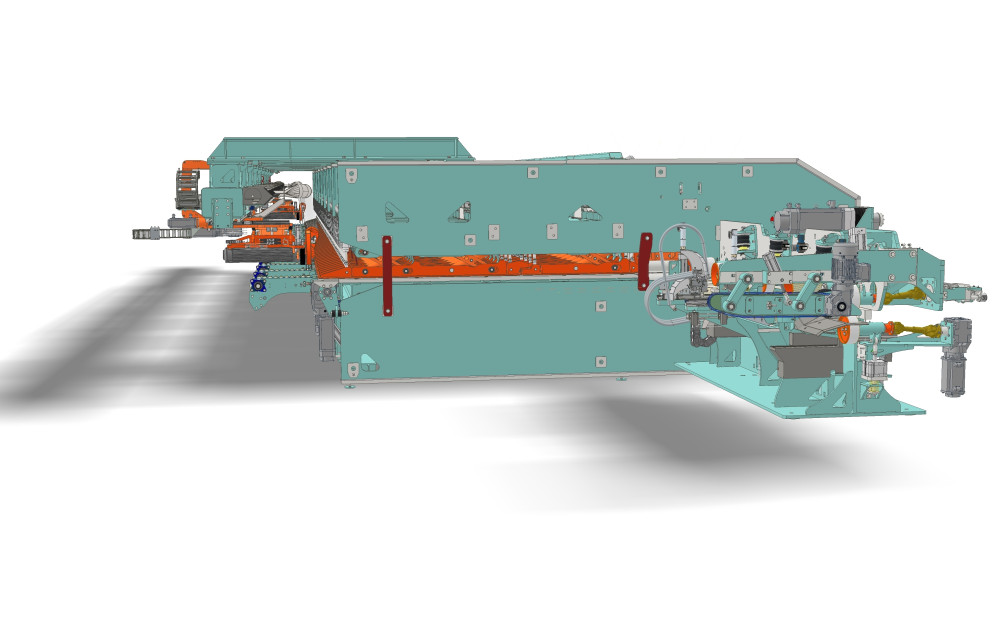

Z-Press Super

Edge glue press Super

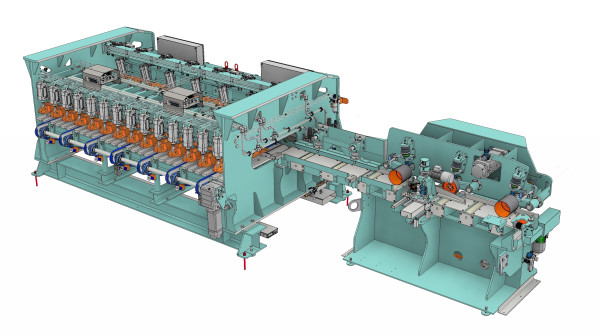

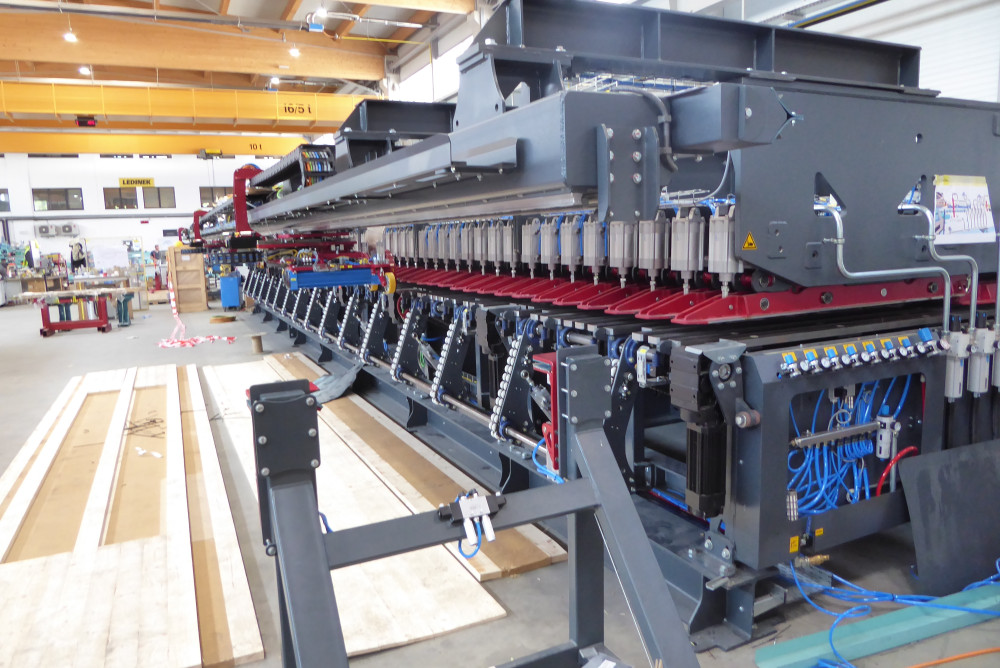

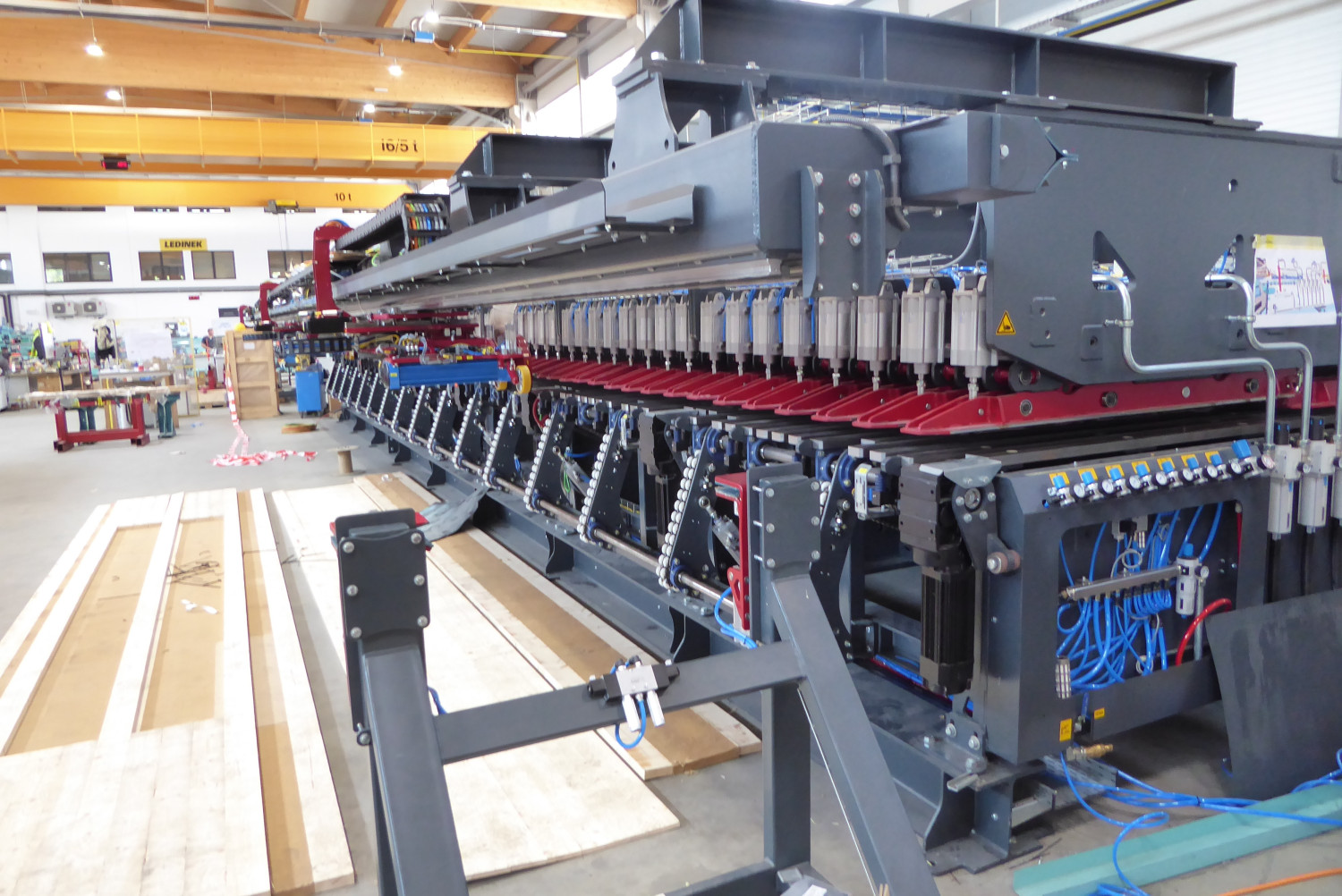

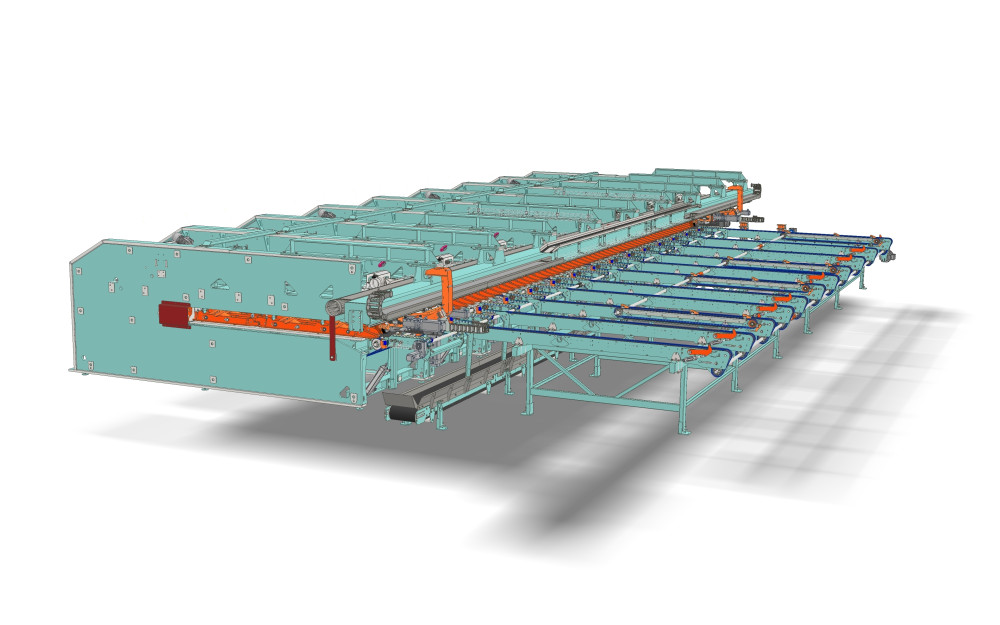

An advanced, extended version of our Z-Press edge gluing system, the "Z-Press Super" is designed for high-speed assembly of solid wood laminations using hot-melt or PUR adhesives. Thanks to its extended pressing area, the Z-Press Super enables the use of PUR glue to achieve an exceptionally strong bond at reduced capacity.This enhanced bond line is especially beneficial when timber moisture decreases due to low ambient humidity. On visible layers, the PUR glue line prevents gaps caused by timber shrinkage, ensuring a flawless appearance.

A quick and simple switch between adhesive types offers remarkable production flexibility. The system allows the production of multiple panel widths or continuous single-layer panels from edge-glued laminations. These pre-assembled panels are ideal for advanced, high-capacity CLT production or similar applications.

A true game changer in modern CLT manufacturing.

Patented!

Main advantages by using edge glued panels in CLT production

Safe production flow; single laminations are assembled to complete layers 1 step before the panel assembly
The effect of crook, twist and bow of single laminations is largely decreased
Faster adhesives in the surface bond; as handling preassembled layers the security time span, for open time, can be shorter
Cheaper than conventional edge gluing; lower investment and less space requirements
Single layers of the panel can be made air tight; wind tight CLT with 3 layers
Multiple panel pressing without separation foil possible; No glue runs through the loose layer into the table or the panel below
Assembly bonding with hot-melt; less waste, no glue mixing, long shelf time
Hotmelt amount app. 0,3 – 1,0 kg/m³; depending on width and thickness of laminations
Lower production costs per m³; more press cycles can be made per shift due to less required open time
Less single parts to be handled; on a 5-layer cross panel (16 x 3m with 100 mm wide laminations) you assemble 5 parts instead of 540
Hotmelt and cold glues (PU, EPI, PVA...) can be combined; for special applications and surface requirements
