Complete planing solution

250 m/min Sorting line

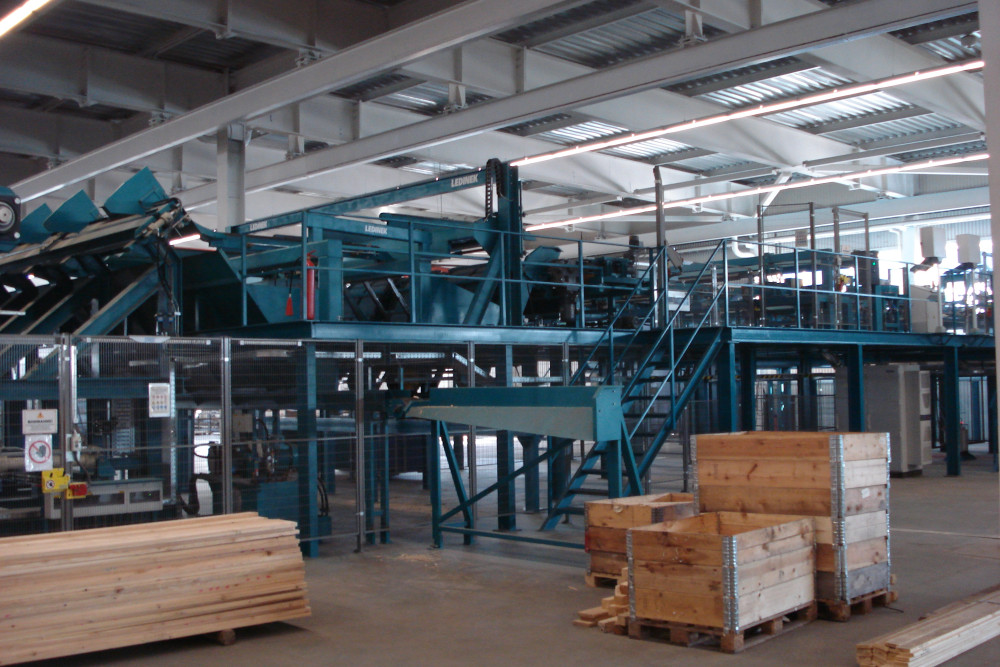

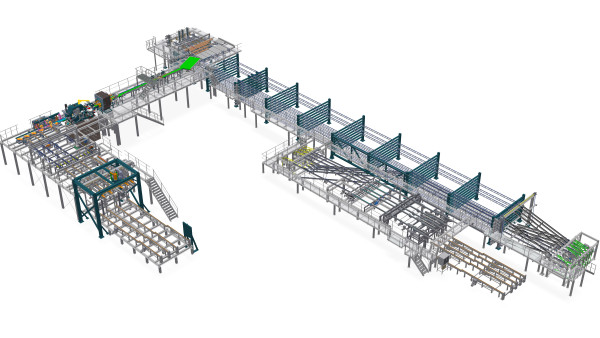

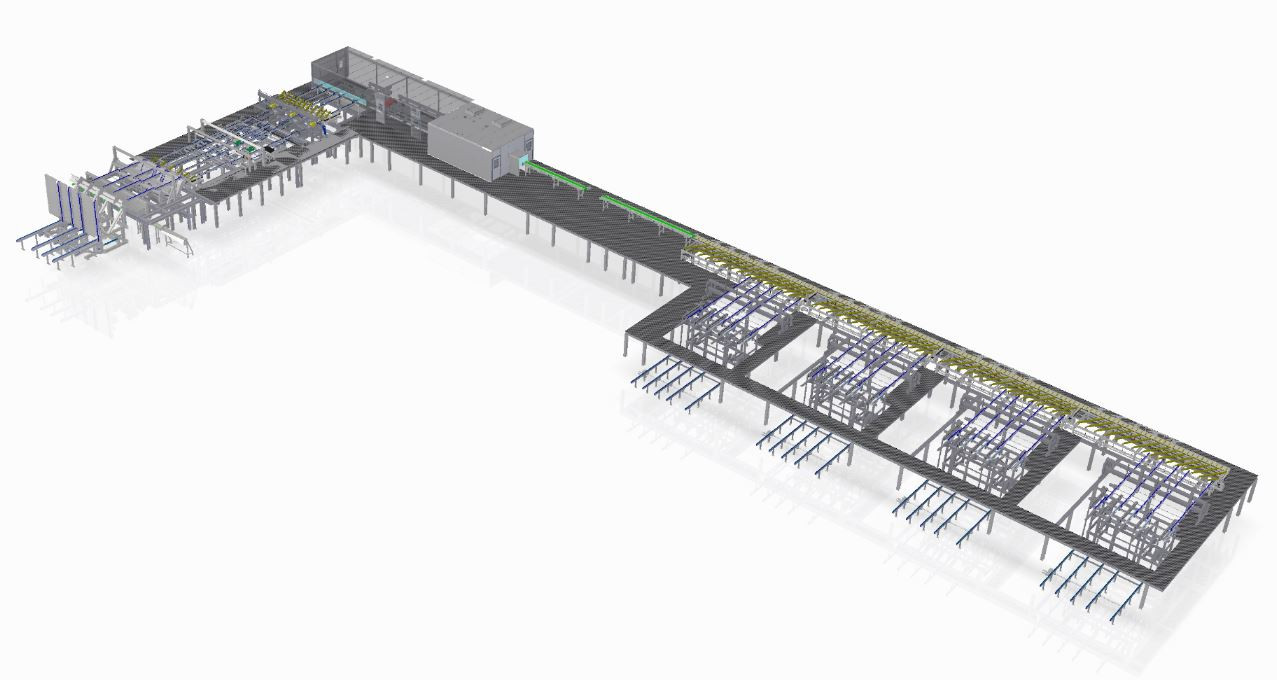

In the scope of a large greenfield investment project for manufacturing of engineered laminated timber products in northern Russia, LEDINEK designed and built an automated high volume sorting line for grading and sorting of boards intended for glulam and cross laminated timber production.

Another important request from the customer was the expansion of their product range in a way that does not influence the current production in the engineered timber production. An independent high capacity line built around a 7 spindle high-speed SUPERPLAN planer and moulder was the perfect solution for both tasks.


Case

  • Pre-planing and Profiling
  • Scanning
  • Sorting
  • Softwood for manufacturing engineered timber products
  • Production of profiled boards

Key components of the solution

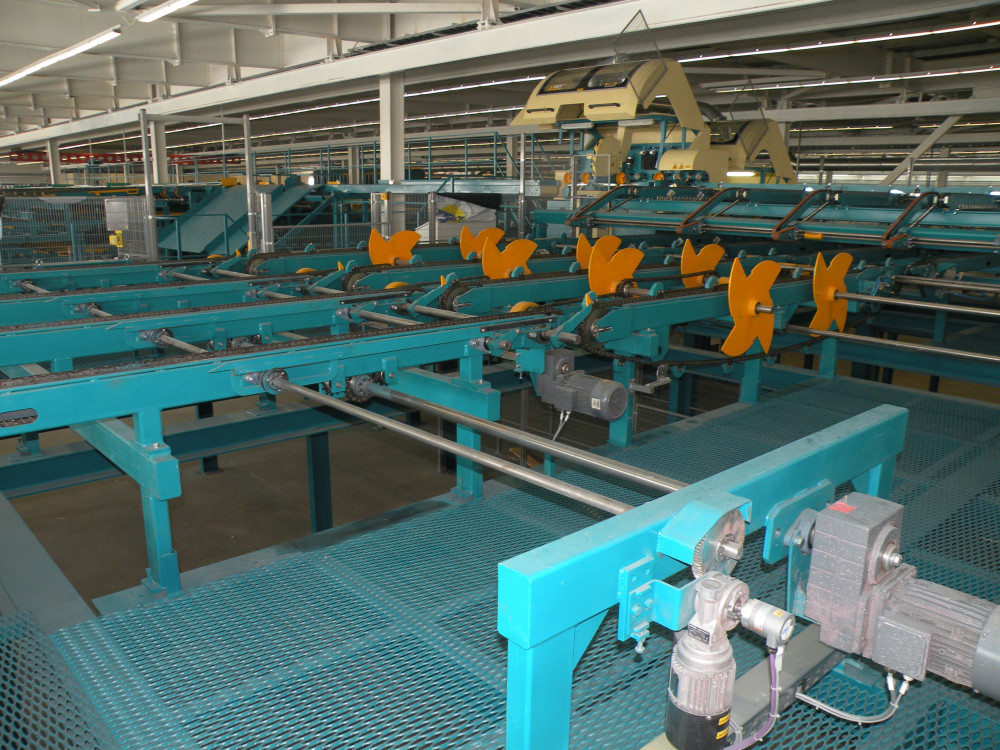

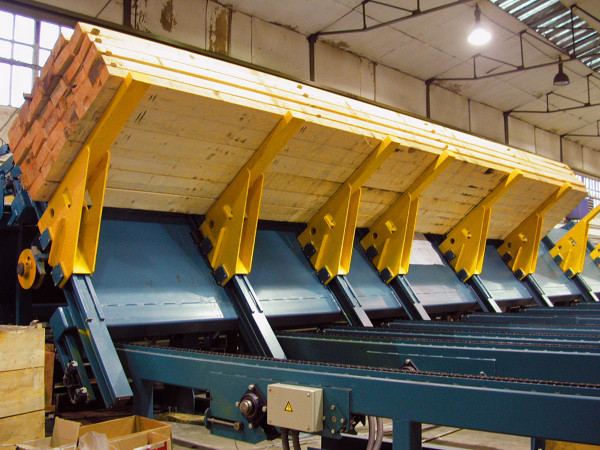

  • Tilting table with board unscrambler

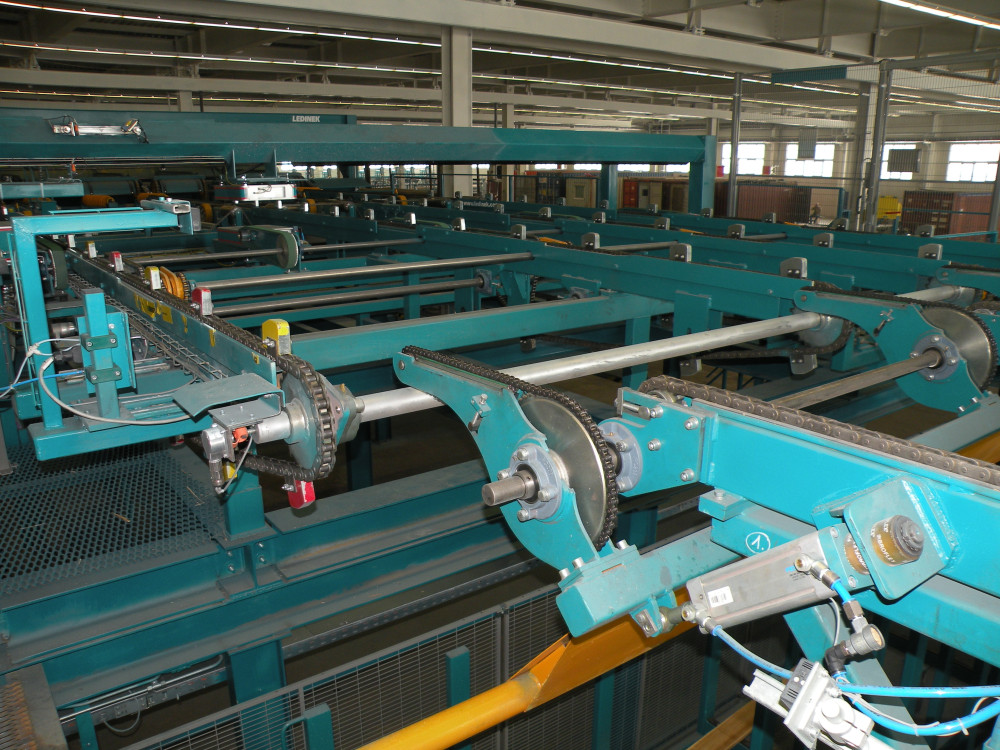

  • Feeding equipment for 50 pcs/min

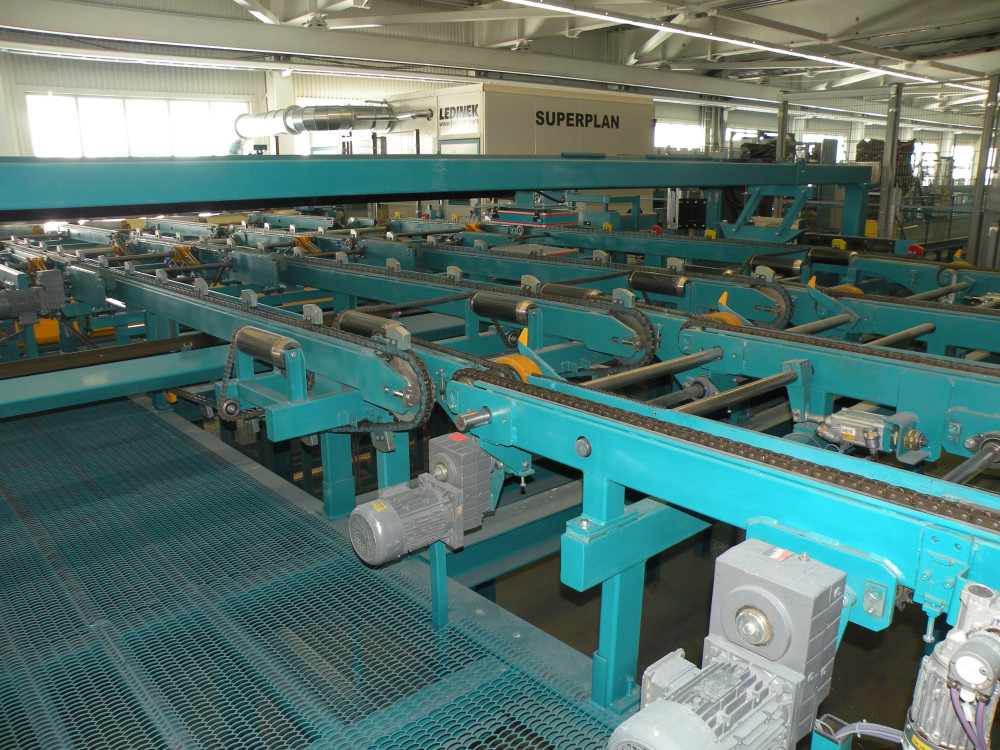

  • SUPERPLAN 7V-S250 planer and moulder

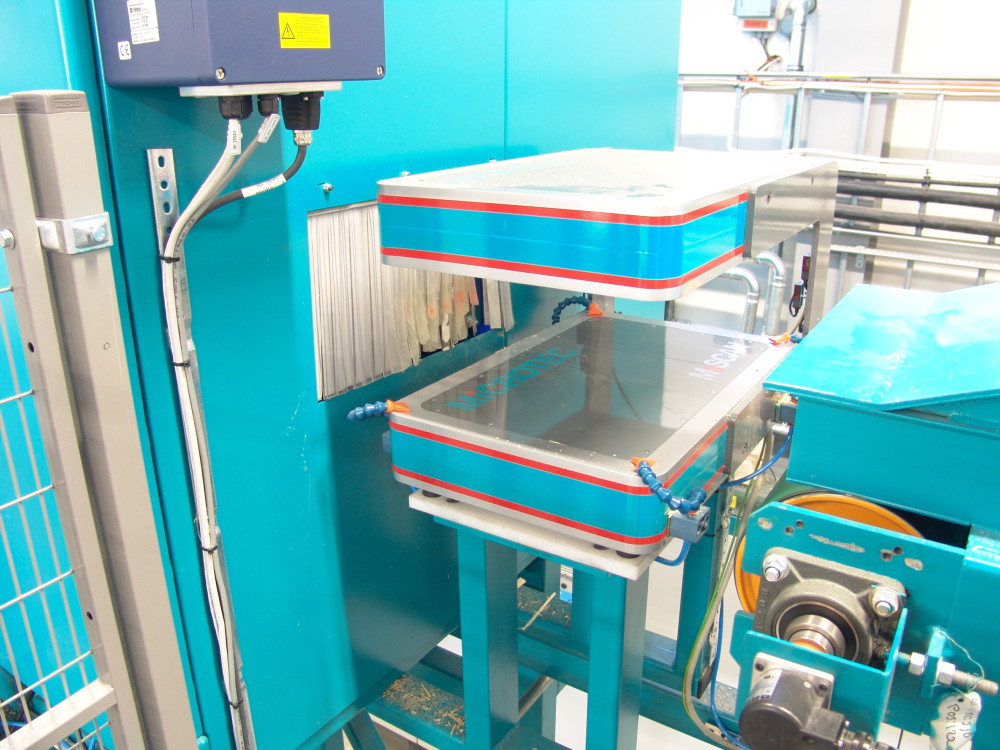

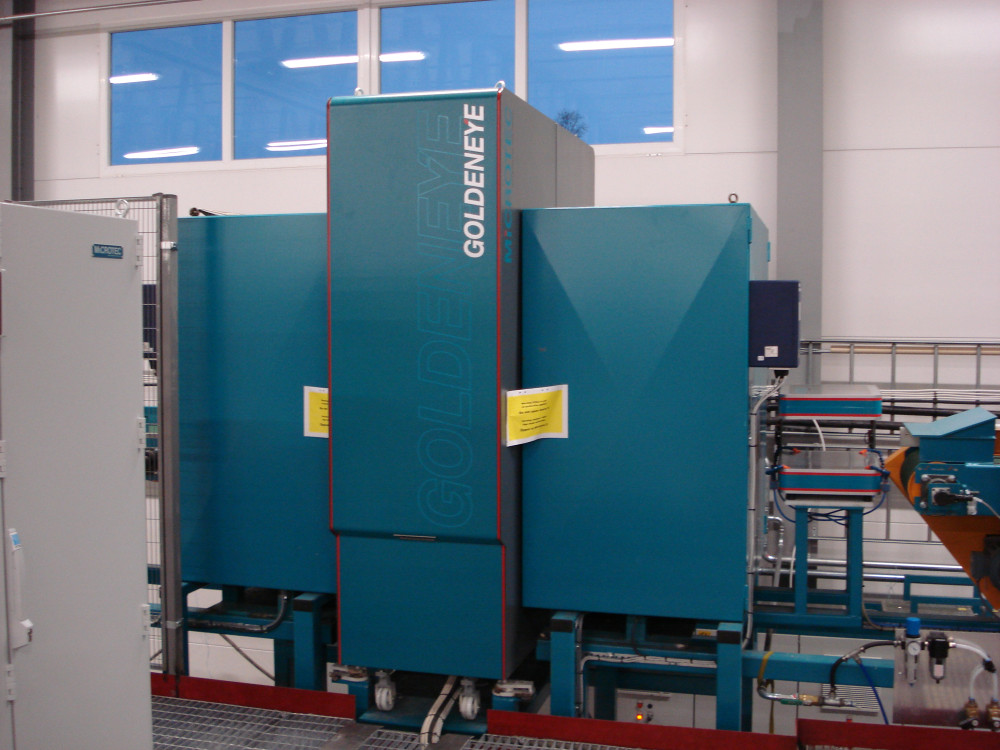

  • GOLDENEYE 702 X-ray scanner from Microtec

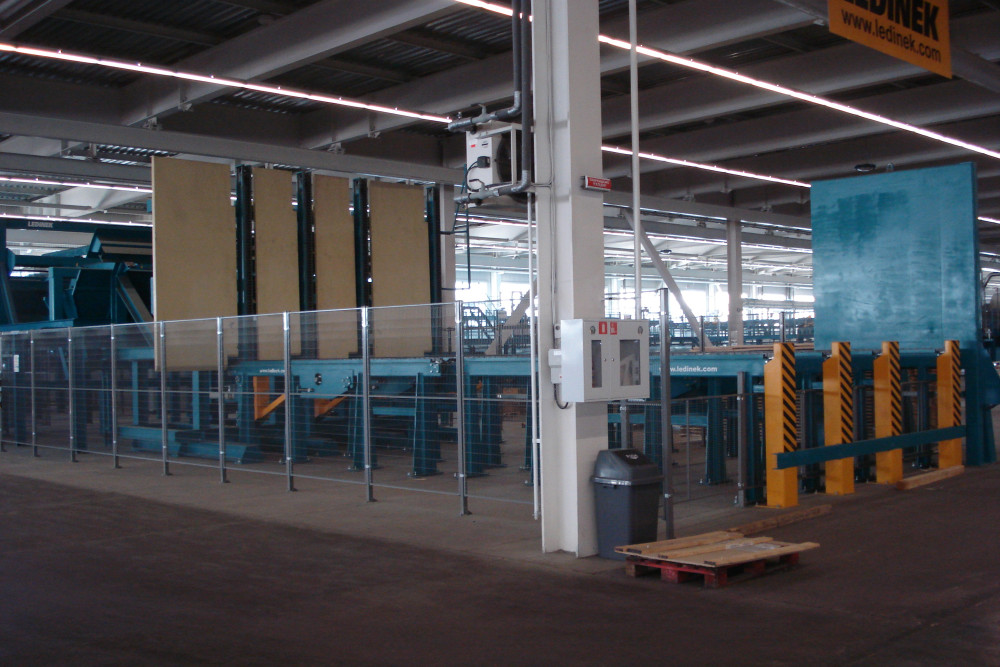

  • 4 high capacity stackers
