High-speed splitting

Splitcut 200

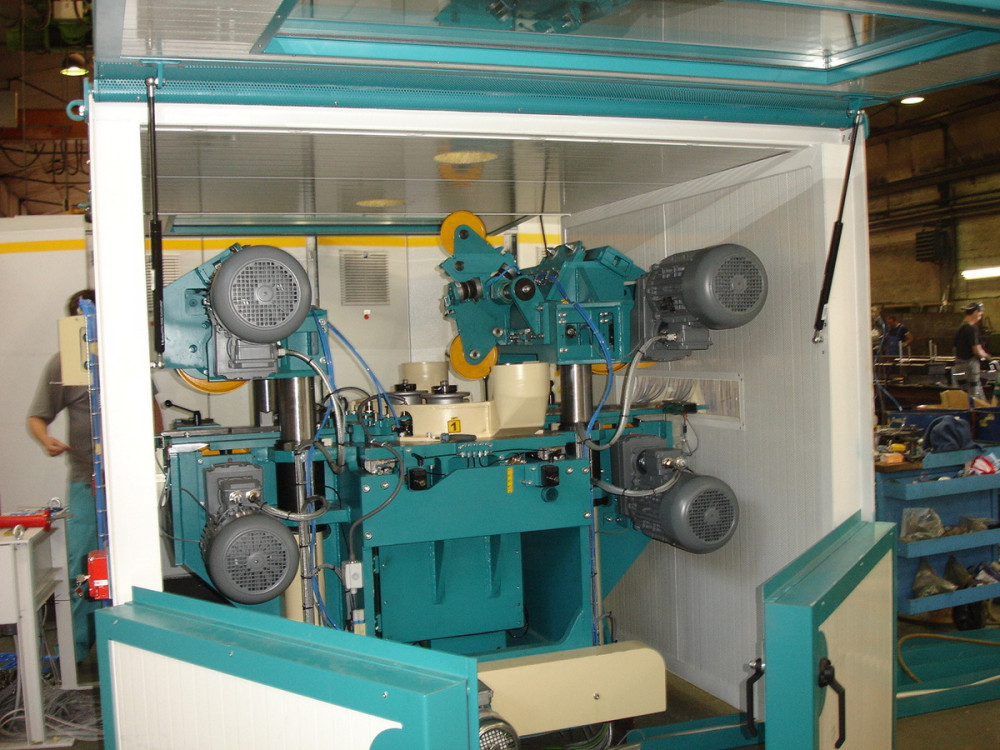

Circular sawblade splitting saw with vertical tooling spindles for high speed splitting of flat boards. The machine is developed to replace vertical bandsaws.

Simple setup, tool change and maintenance are next to horizontal feeding the main advantages.

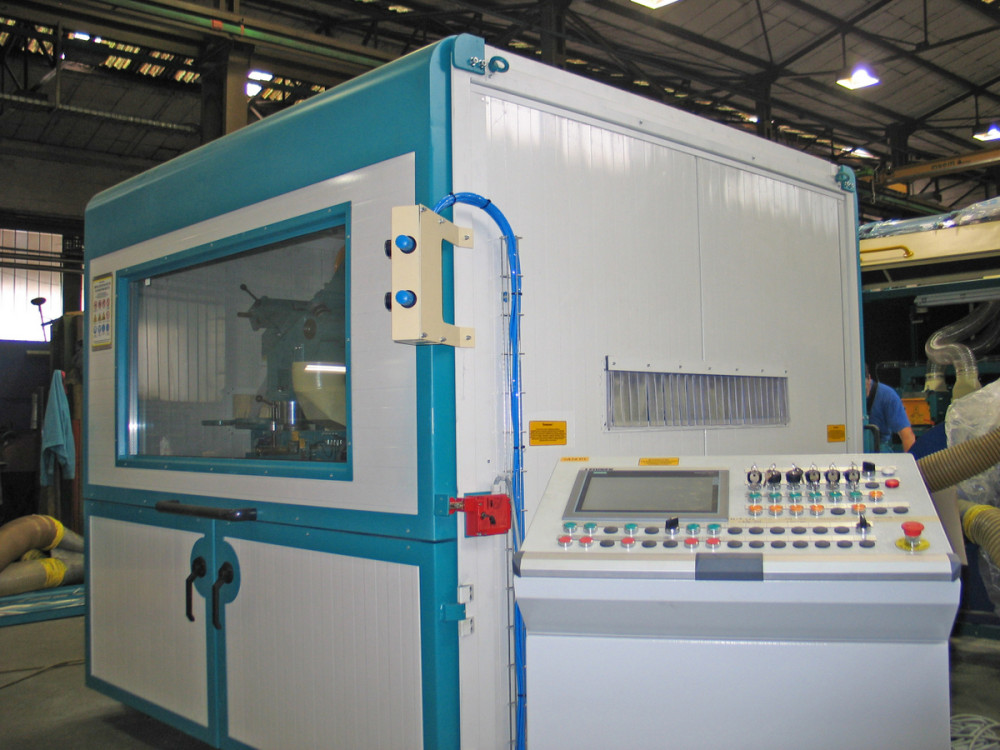

The SPLITCUT saws are built according to the latest industrial standards. Their modern components and special arrangement of feeding units enable versatile and productive engagement in the wood processing industry. They are suitable for integration into mechanized and automated production lines.

Highlights:

  • high precision bearings for smooth, vibration free rotation.

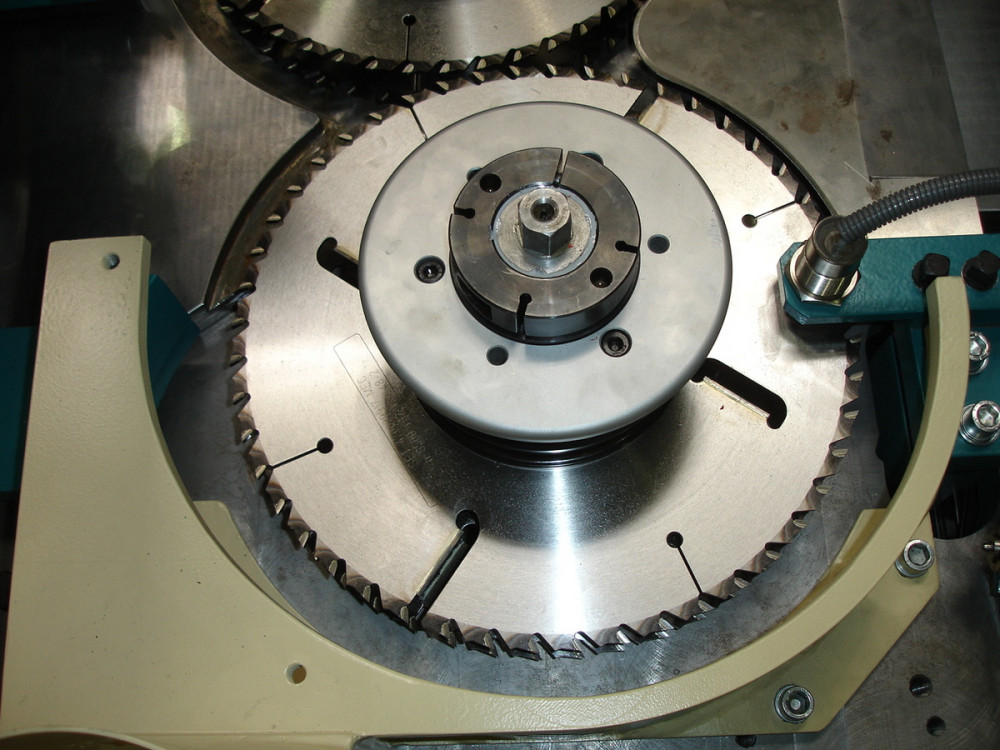

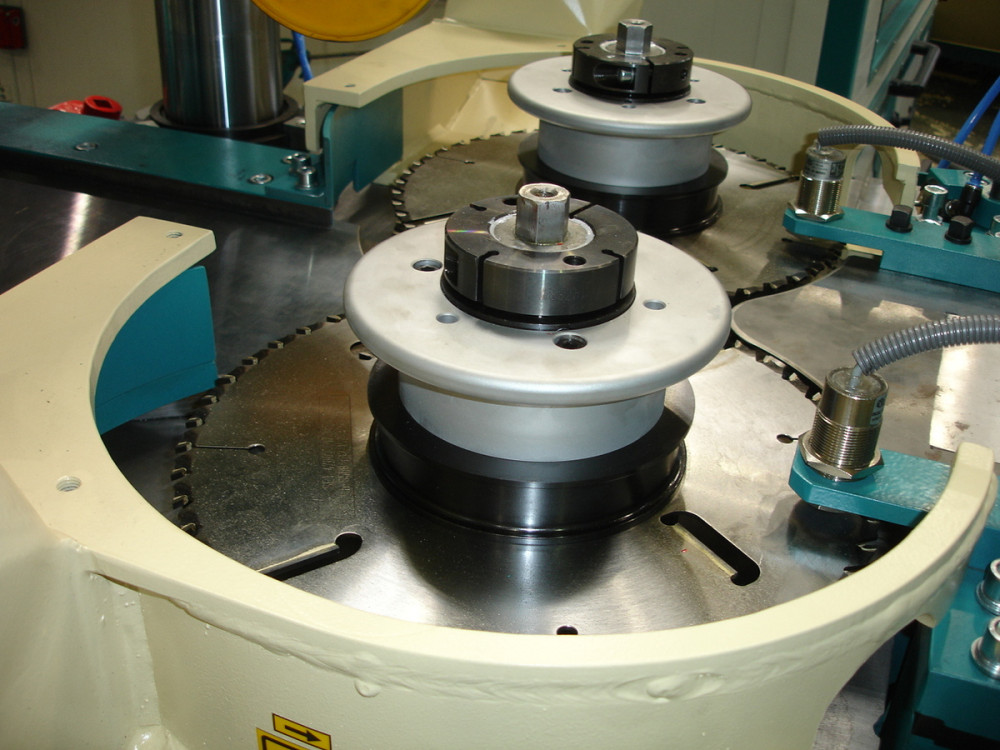

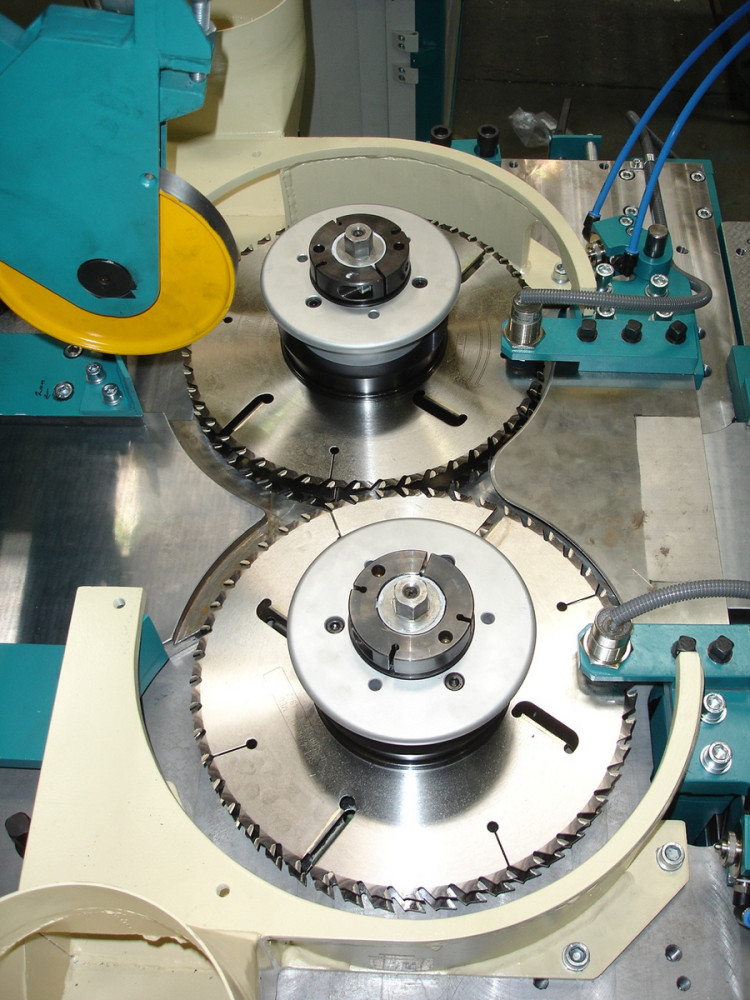

  • slightly offset spindles which can be mounted with large sawblades

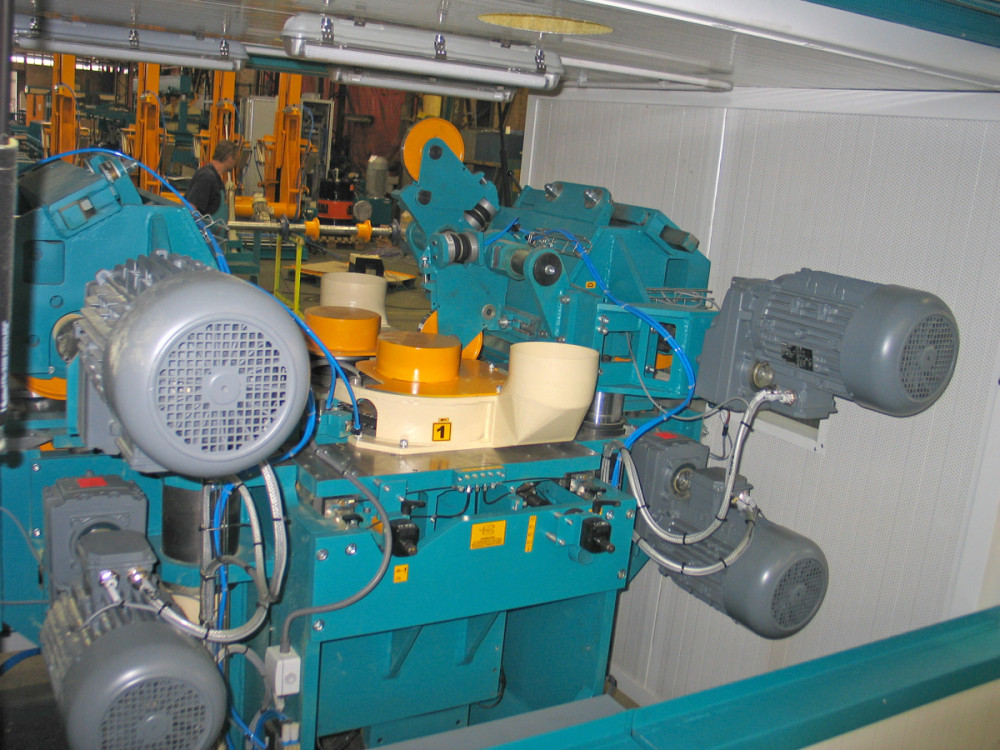

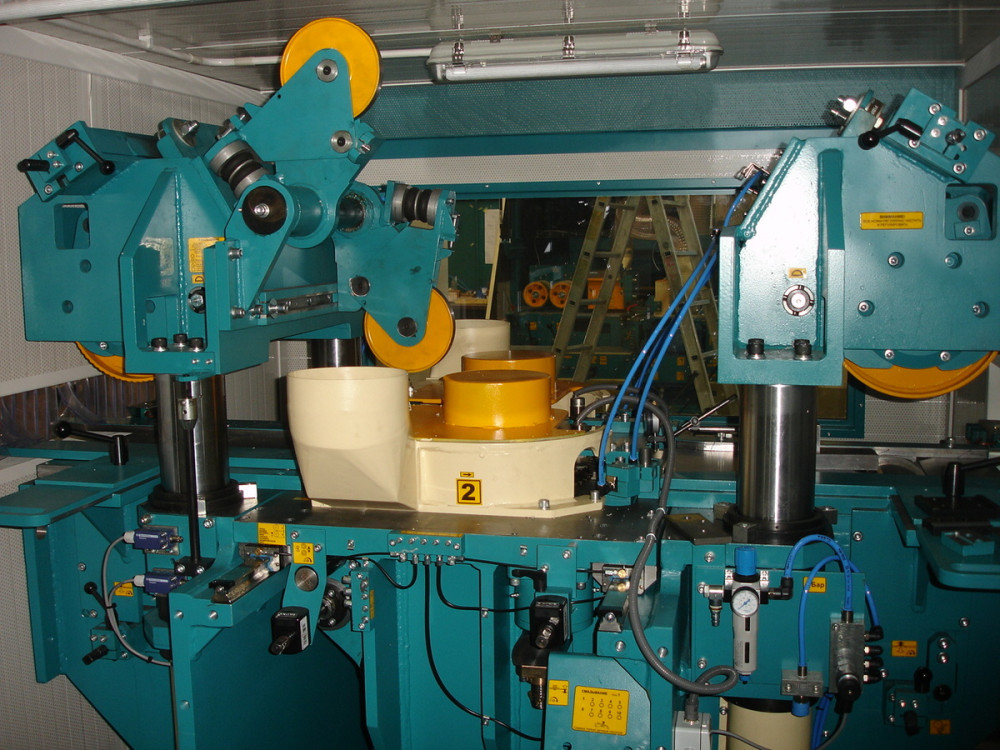

  • large independently suspended horizontal rollers for powerful and fast feeding
  • sawblades are lubricated and cooled
  • adaptable RpM of the spindles
  • sawblade vibration monitor
  • best possible surface quality


Technical data

Splitcut 200
Width 50 - 200 mm
Width
Thickness max. 60 mm
Thickness
Saw blade diameter 280 - 400 mm
Saw blade diameter
Diameter of feeding rollers 310 mm
Diameter of feeding rollers
Feeding speed max. 150 m/min
Feeding speed
