Decorate with ease

Dekoplan

3rd dimension of planing

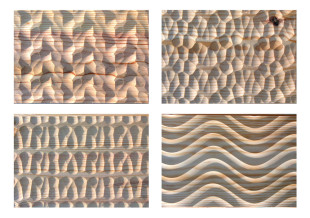

A special planer for decorative planing and structuring of tongue and groove boards, 4 side planed solid wood boards or other similar products for interior design. Also suitable for decoration of decking, cladding, parquet, logs for log homes, facade boards or outdoor and indoor panels for use in exclusive constructions.

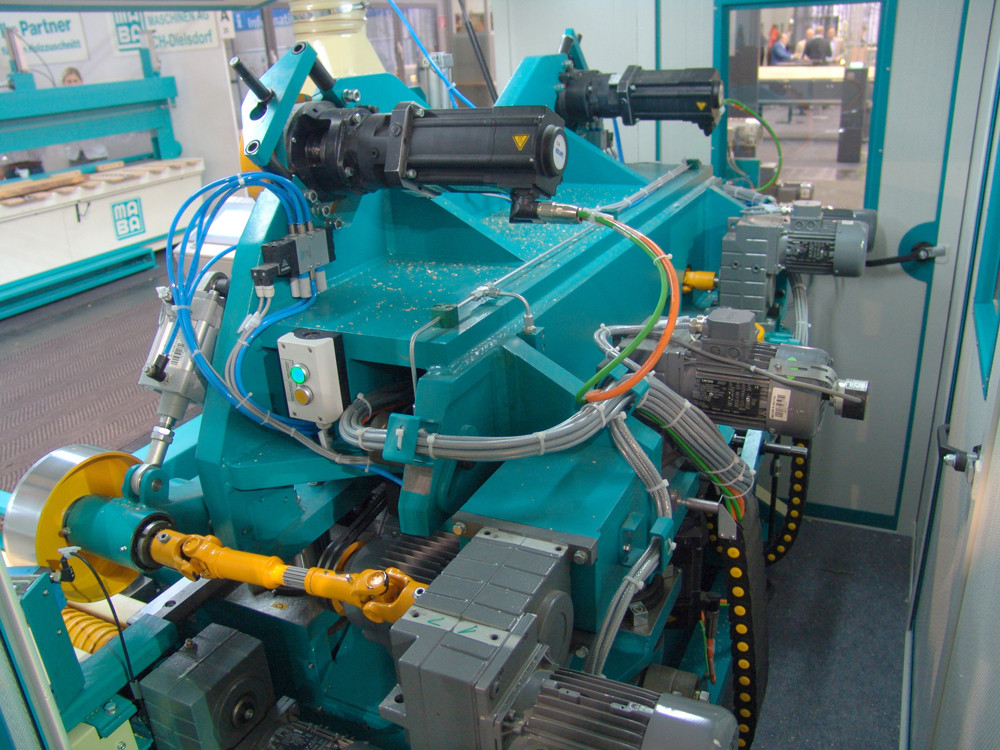

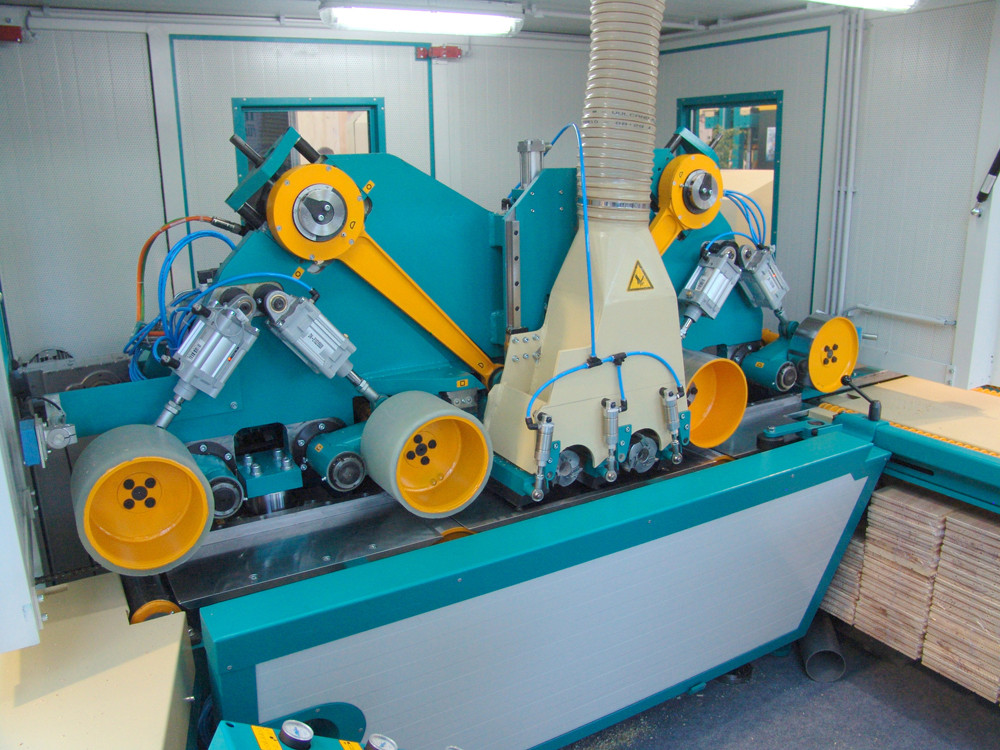

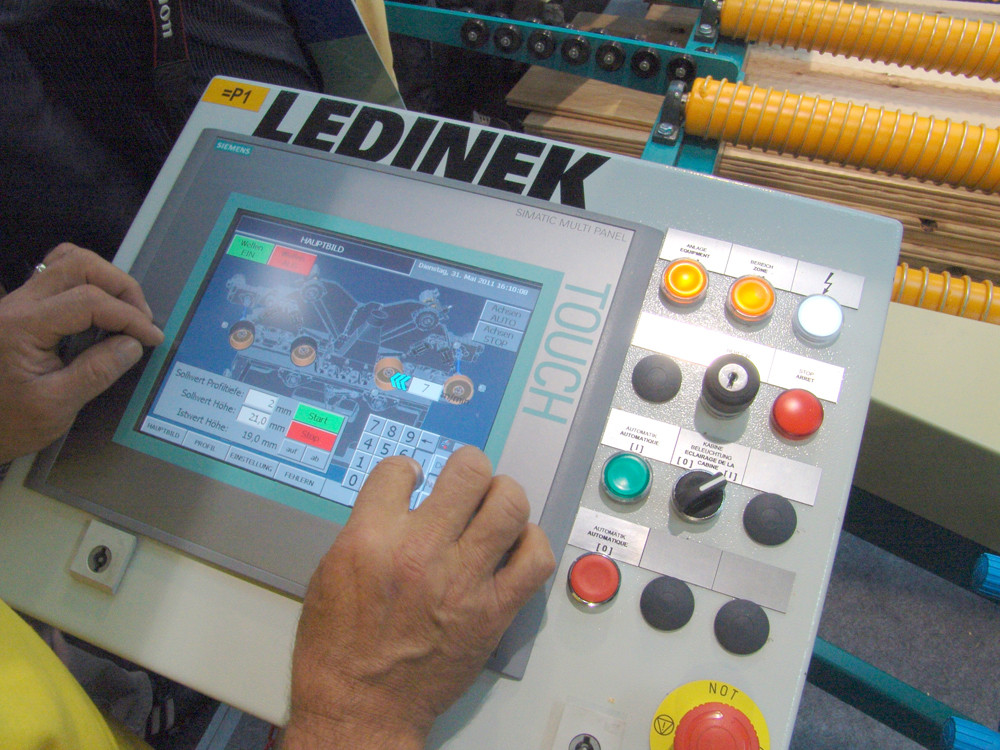

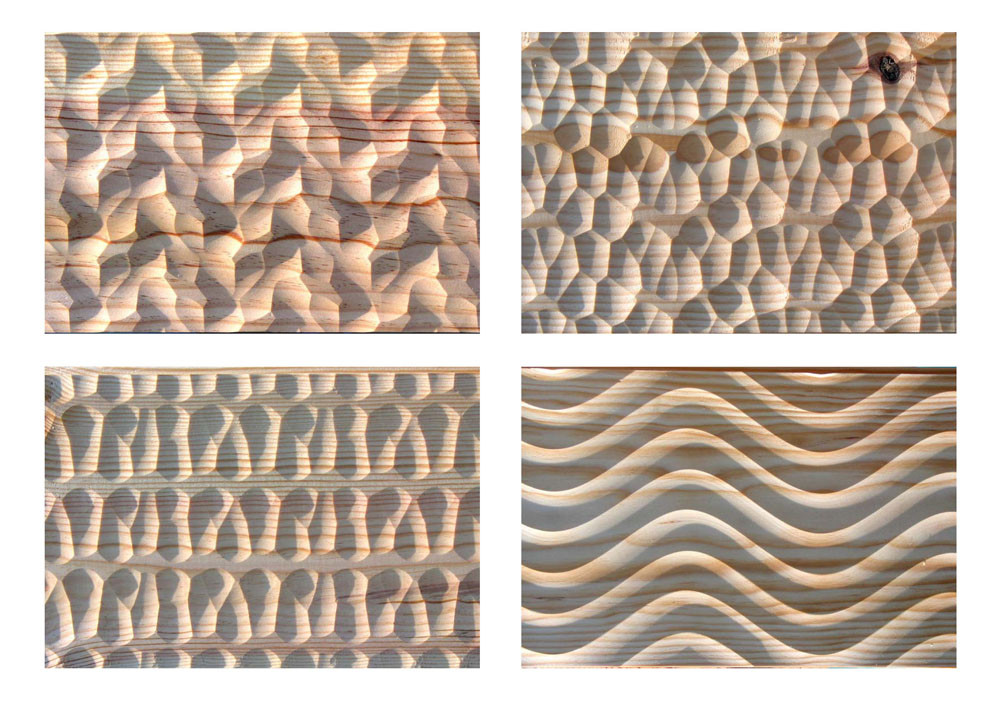

Both milling units feature innovative and dynamic tool motion. Radial and axial motion of both profiling spindles occur by means of eccentric drives. The eccentric strokes are manually adjustable. All drives are electronically interconnected which allows precise synchronization between cycling and feed. The frequency of radial and axial motion is continuously adjustable in order to create various patterns.

Highlights:

  • Various forms with one tool
  • Horizontal and vertical movement of the tool
  • Servo controlled tool stroke
  • Rapidly exchangeable tool sets
  • Much faster than CNC machine
  • Standard profile knives

Technical data

Dekoplan
Width 75 - 220 mm
Width
Thickness 12 - 30 mm
Thickness

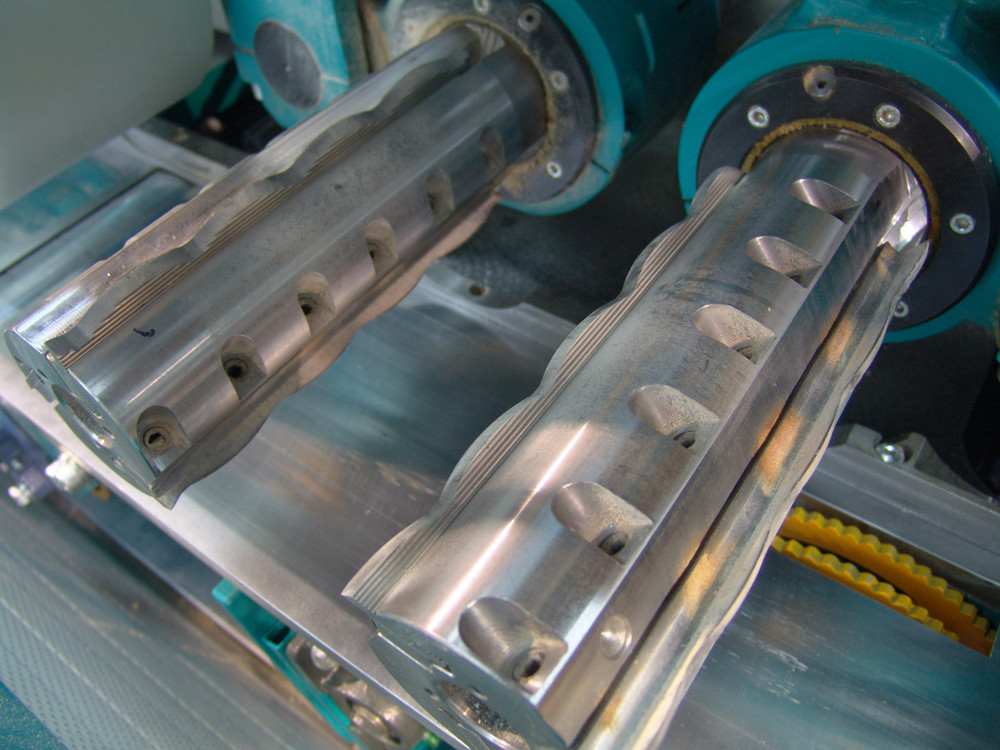

Diameter of cutterheads 100 mm
Diameter of cutterheads
Diameter of feeding rollers 240 / 190 mm
Diameter of feeding rollers
Input length 800 / 3.000 mm
Input length
Feeding speed 10 - 50 m/min
Feeding speed
